Integrated Display System: Schematic

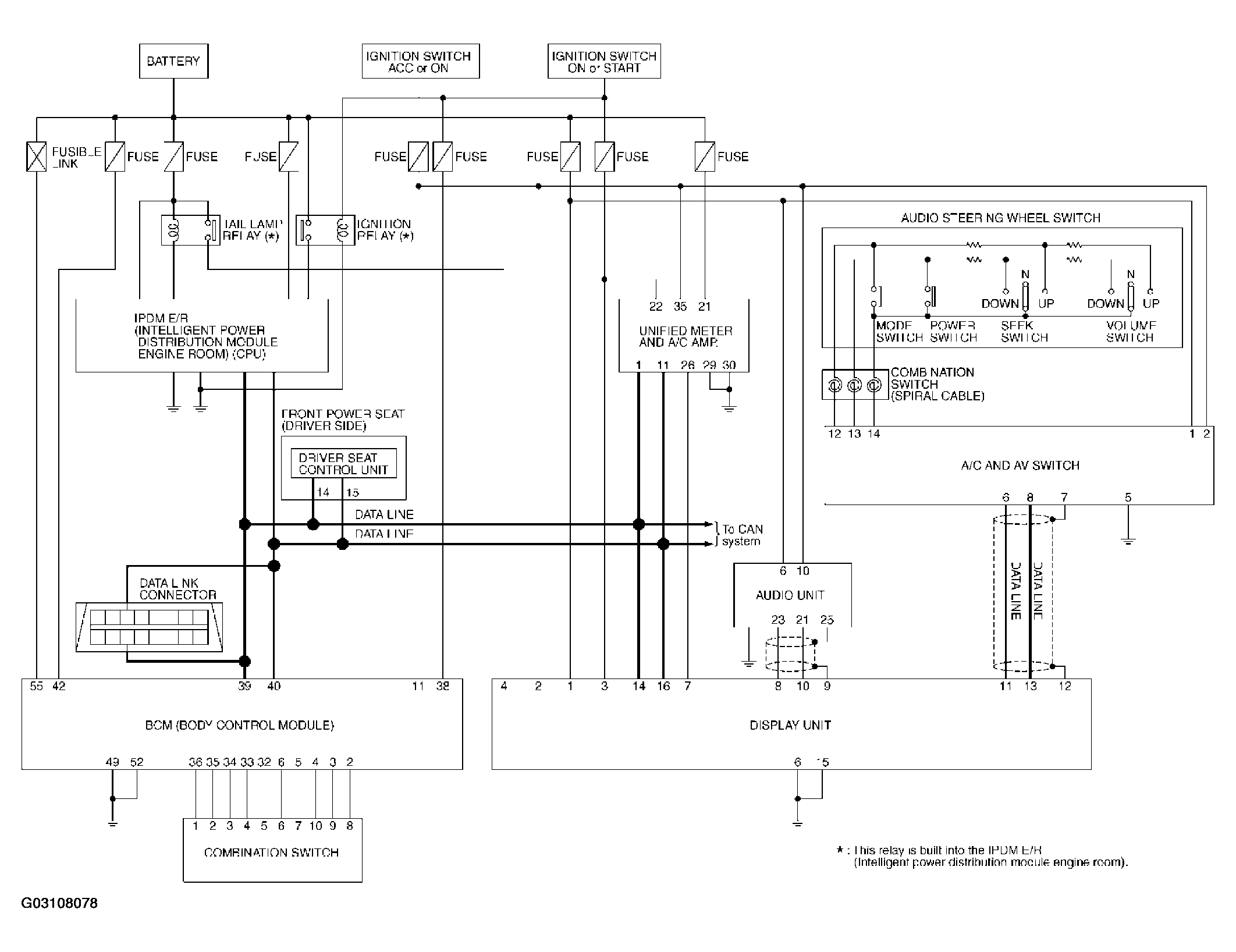

Fig 1: Schematic
G03108078Courtesy of NISSAN MOTOR CO., U.S.A.

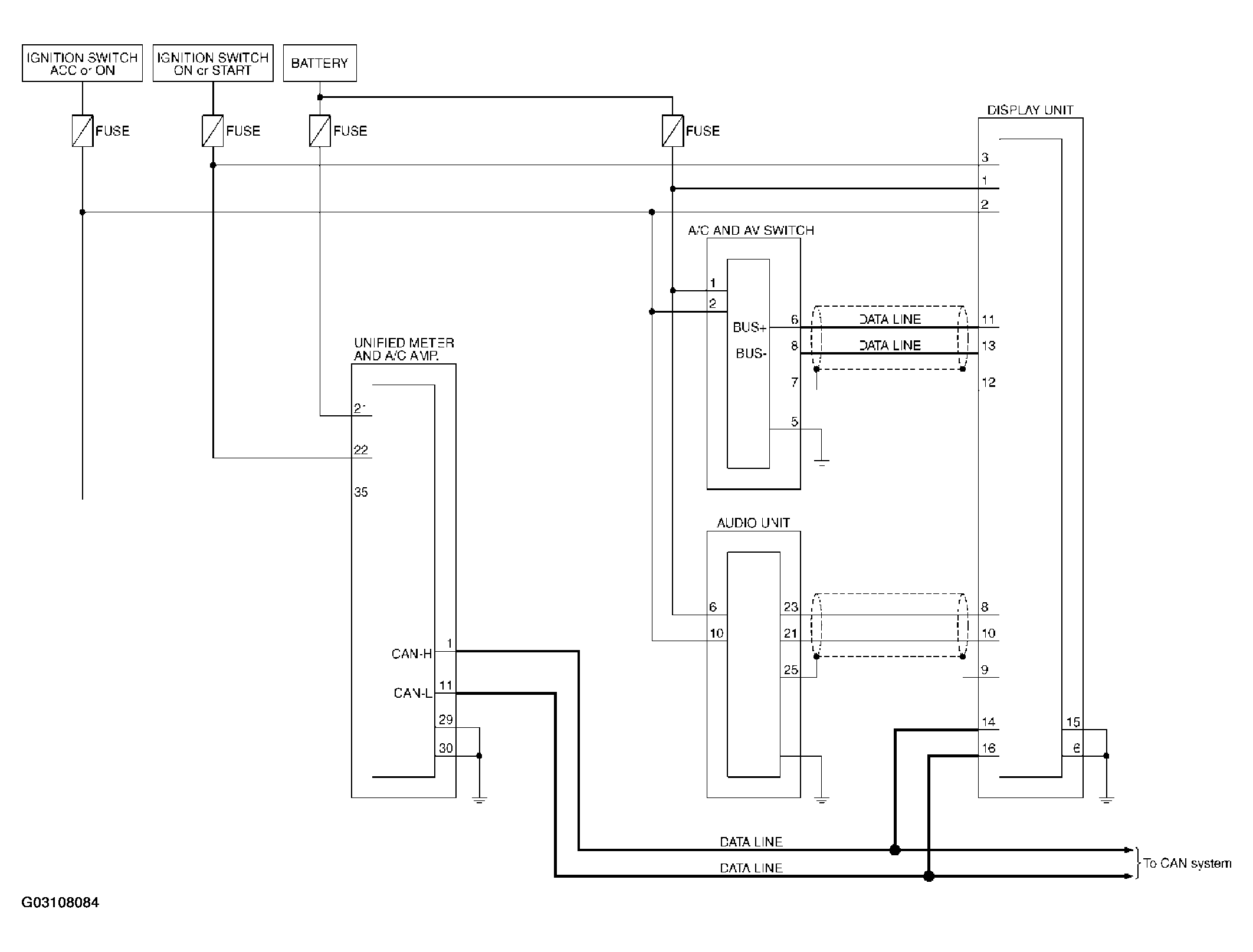

Fig 1: Schematic
G03108084Courtesy of NISSAN MOTOR CO., U.S.A.
