How To Use This Information: Components: Notes

THE LARGE ILLUSTRATIONS are exploded views (See the following) and contain tightening torques, lubrication points, and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only.

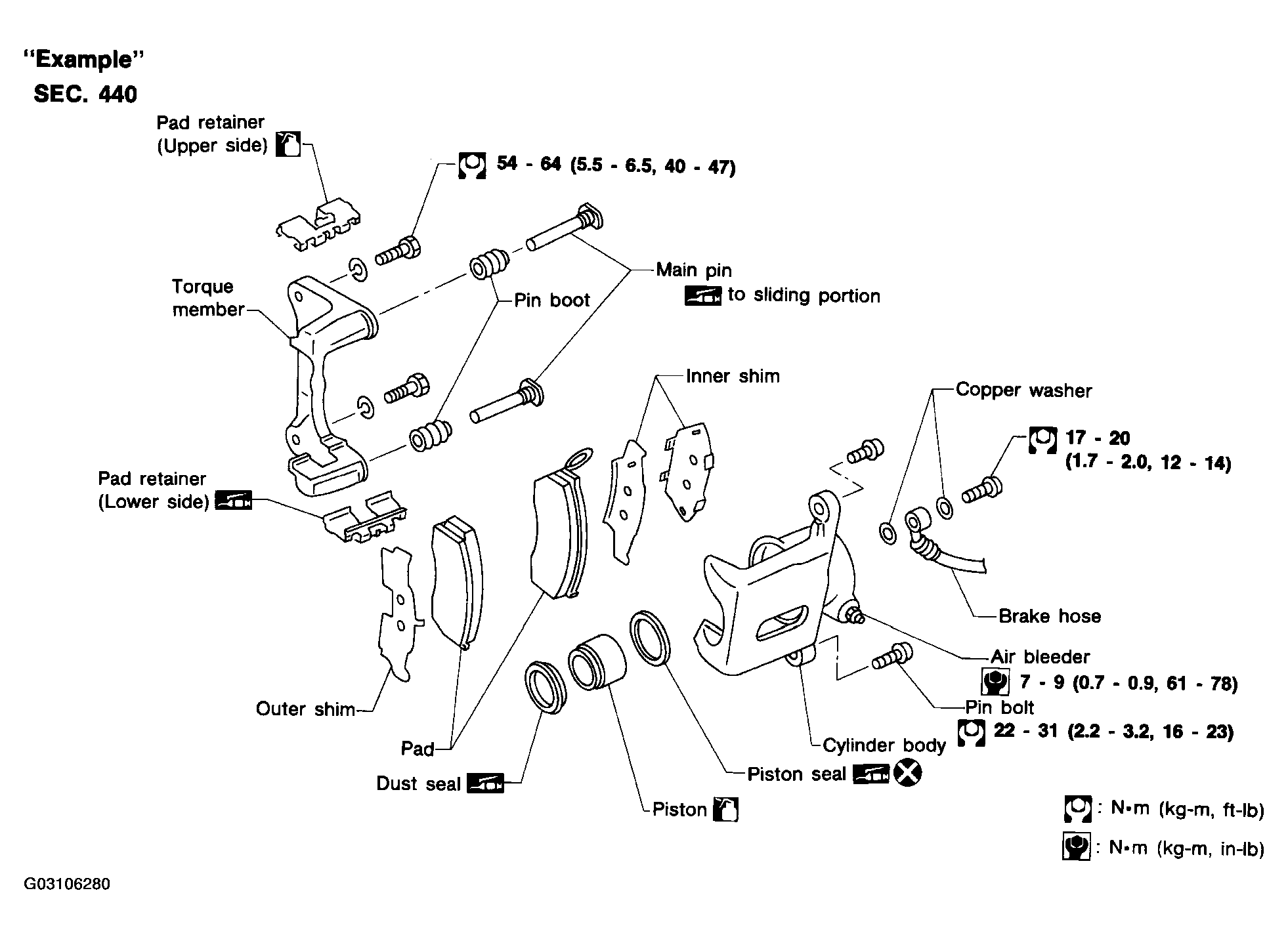

Fig 1: Exploded View Of Break Caliper Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
