Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

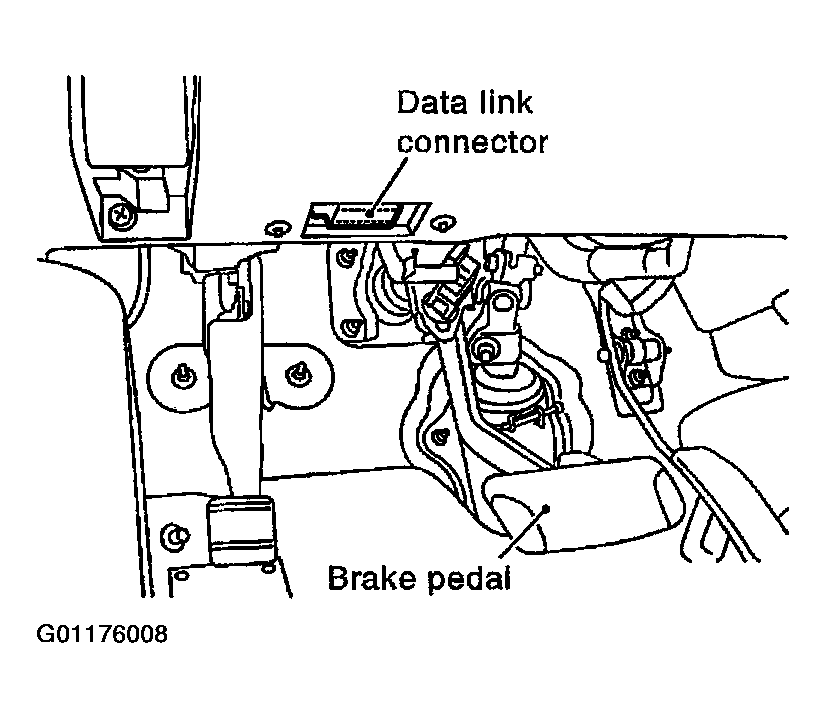

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

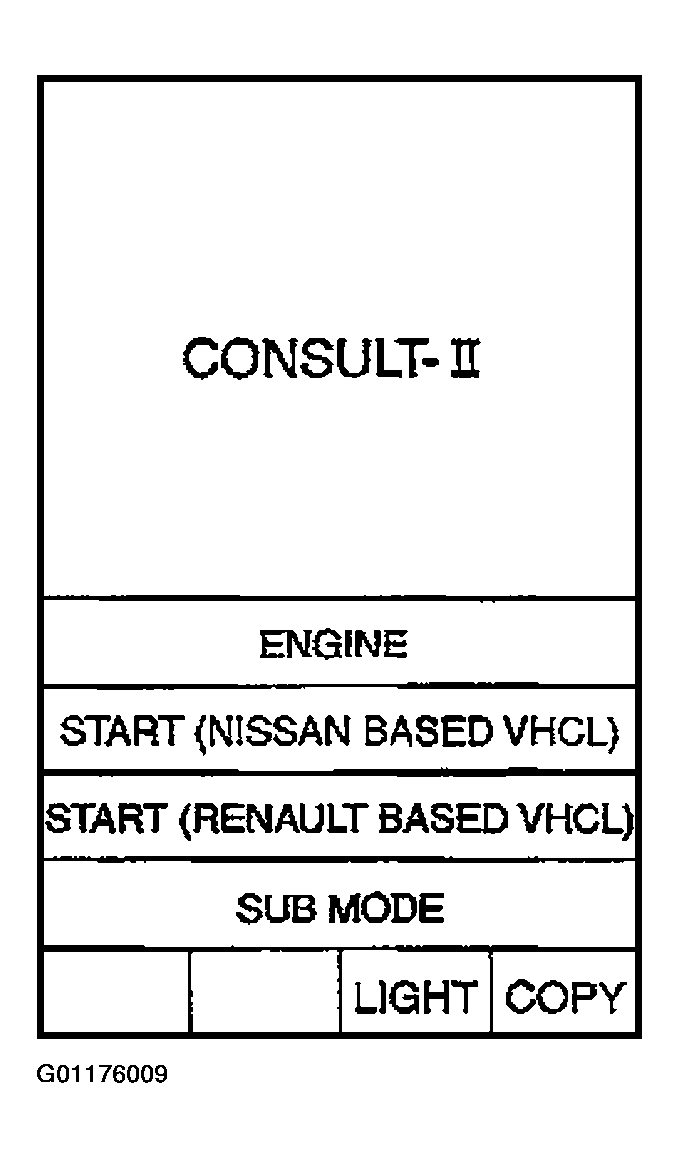

Touch "START (NISSAN BASED VHCL)".

Fig 2: Identifying Consult-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

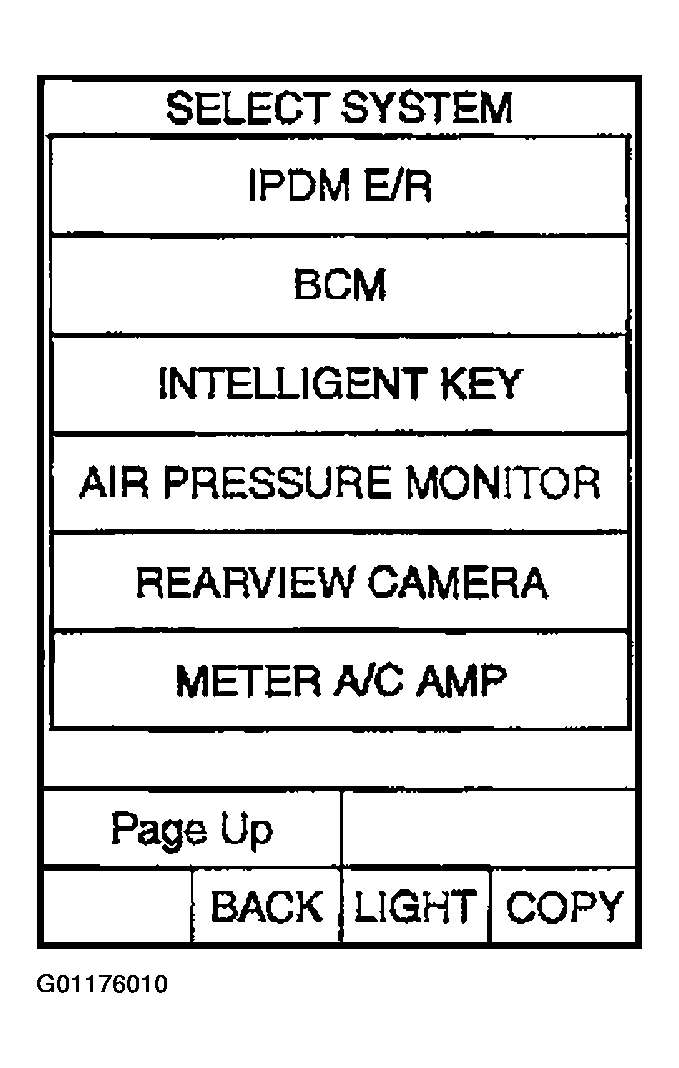

Touch "BCM" on "SELECT SYSTEM" screen.

Fig 3: Identifying Select System Consult-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

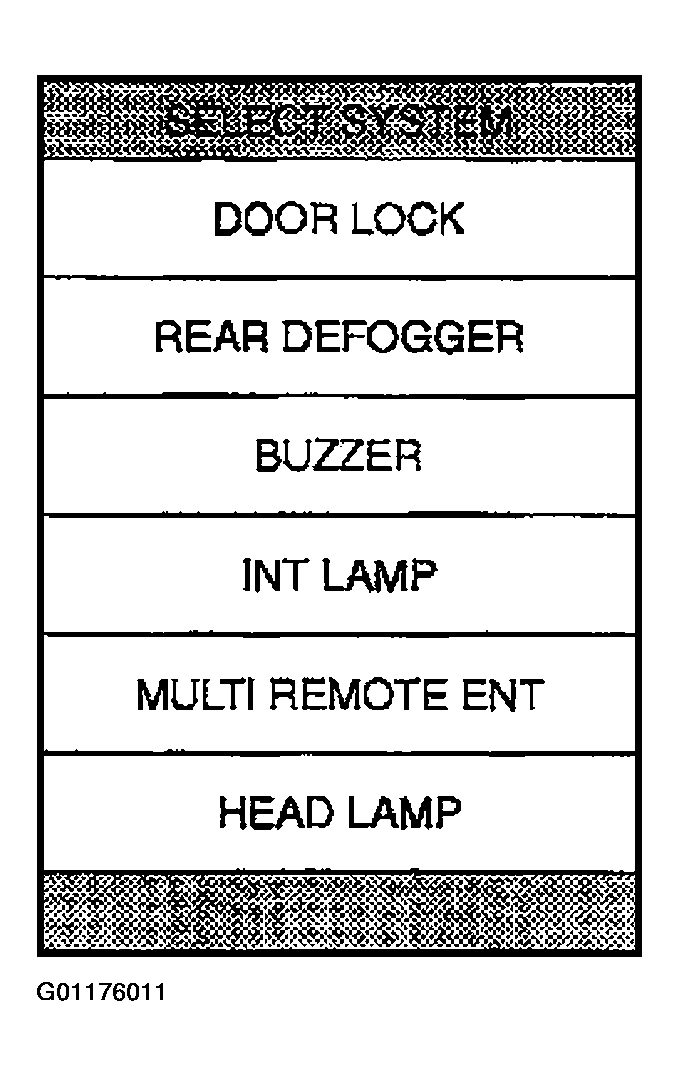

Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

Fig 4: Identifying Select System Consult-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
