Systems Controlled By BCM Directly

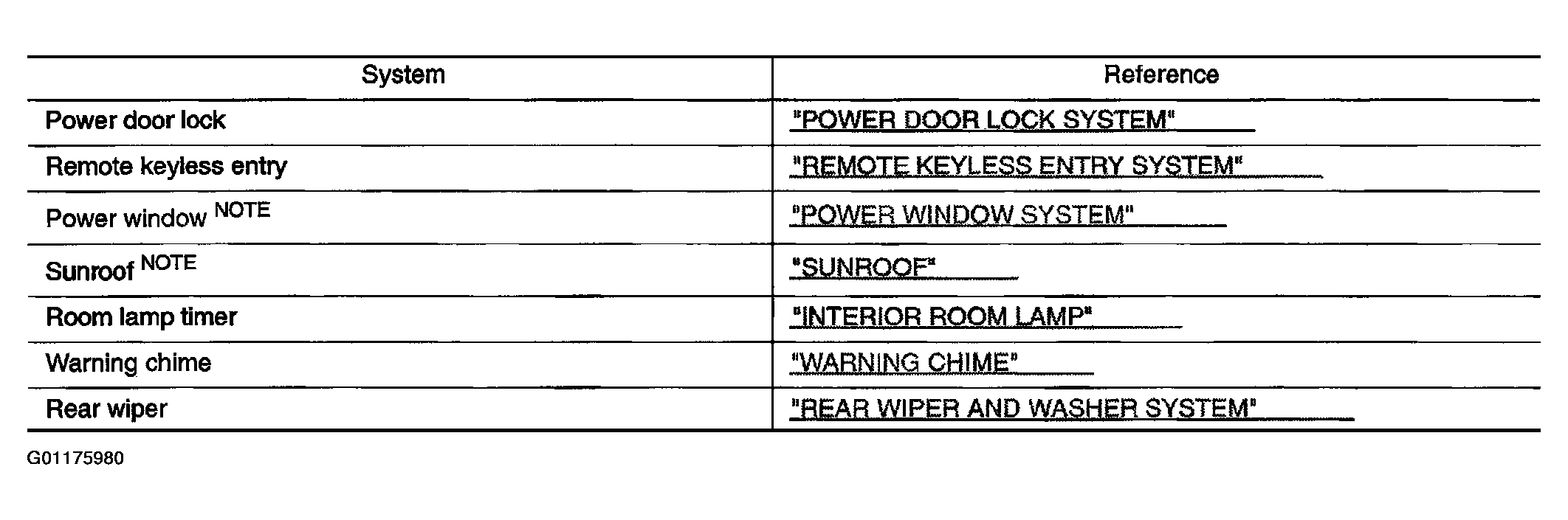

Fig 1: Systems Controlled By BCM Directly
G01175980Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Power supply only. No system control.
