DTC P0011: Intake Valve Timing Control Performance & DTC P0021: Intake Valve Timing Control Performance: Description

For Intake Valve Timing (IVT) control system description, see Fig 1.

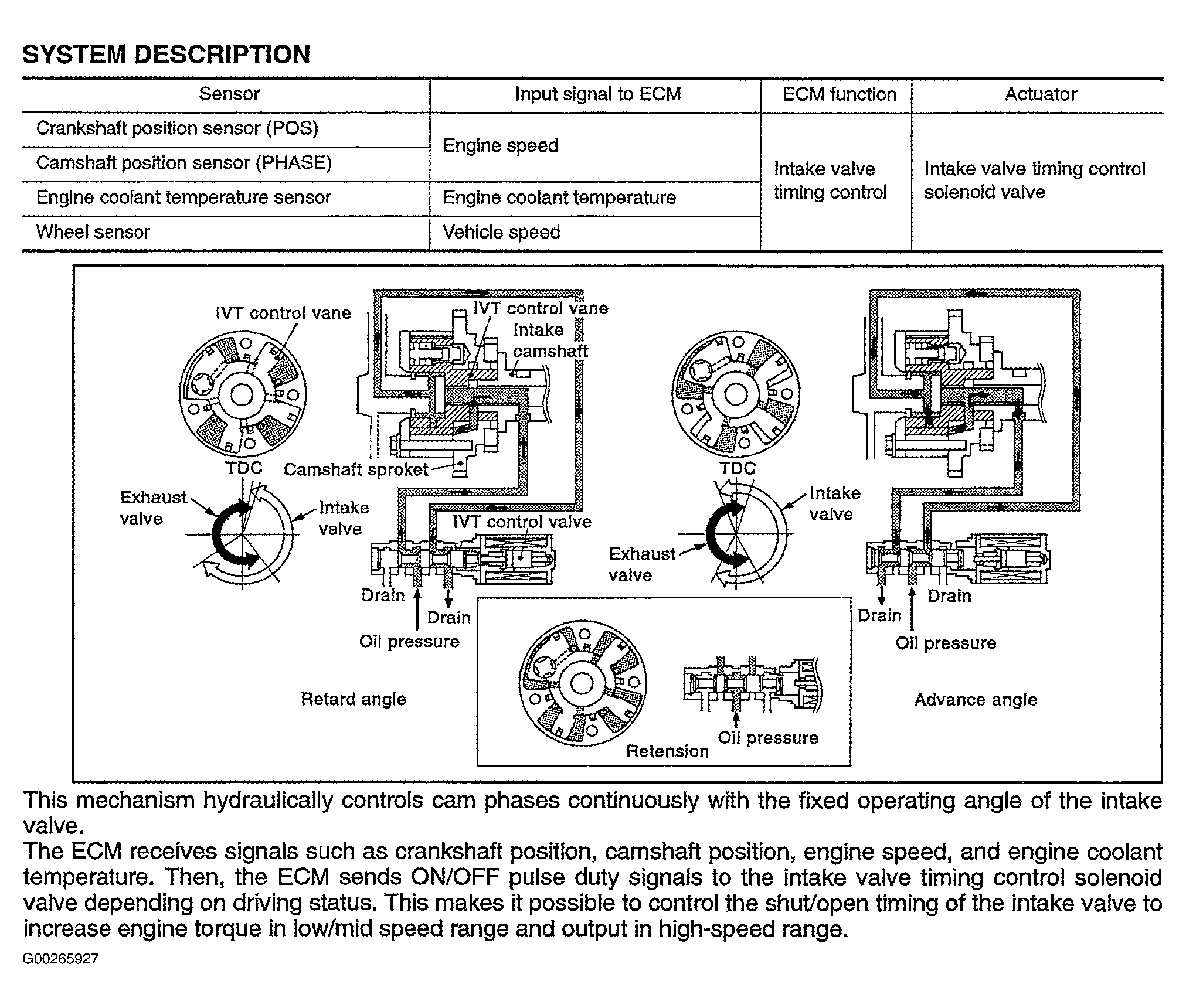

Fig 1: DTCs P0011 & P0021 IVT Control System Description

Courtesy of NISSAN MOTOR CO., U.S.A.
