Diagnostic Procedure
For DTC P0441 diagnostic procedure, see
Fig 1
-
Fig 3
.

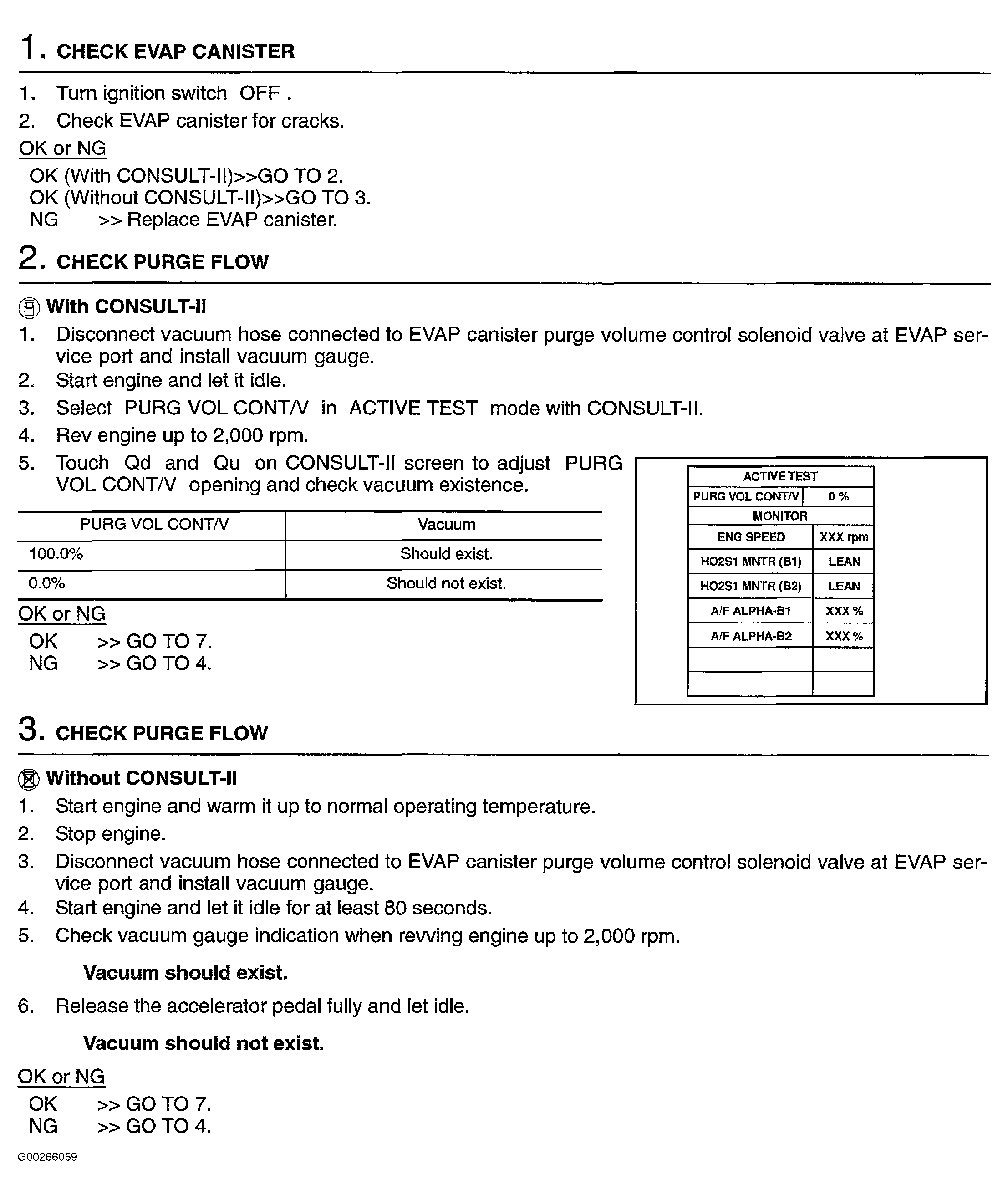

Fig 1: DTC P0441 Diagnostic Procedure (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

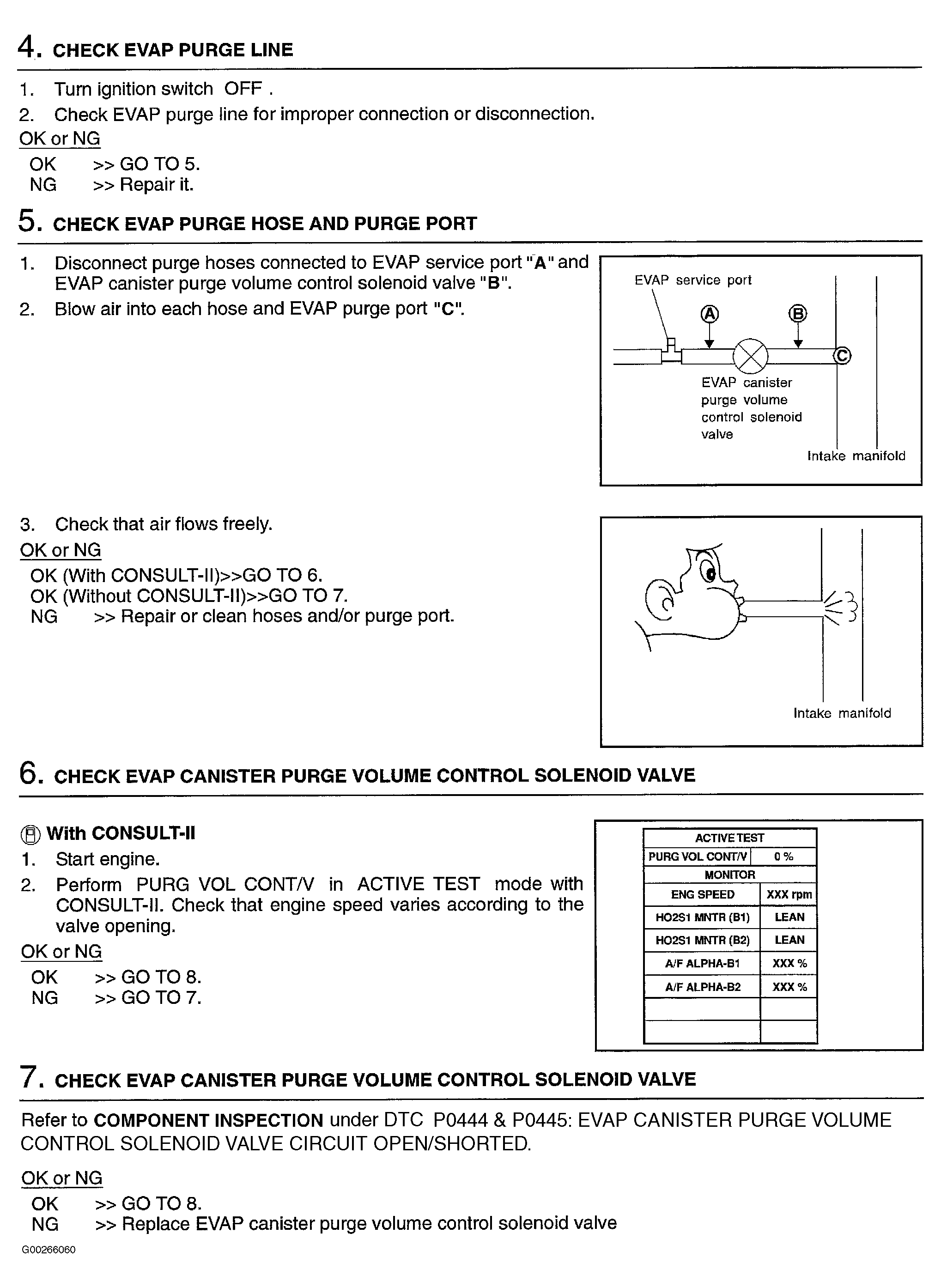

Fig 2: DTC P0441 Diagnostic Procedure (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

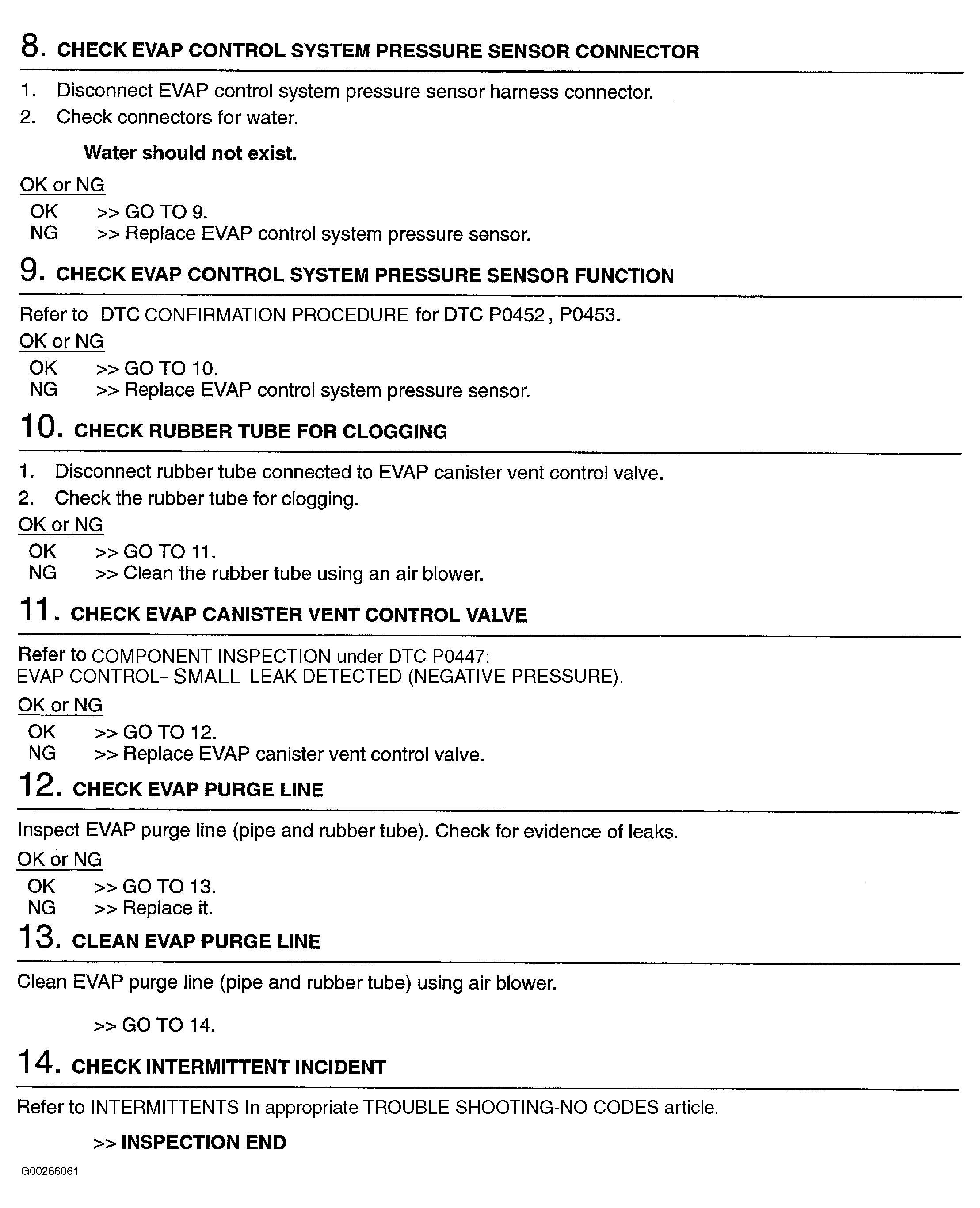

Fig 3: DTC P0441 Diagnostic Procedure (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
