DTC P0452: EVAP Control System Pressure Sensor Low Input: Description

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases. See Fig 1.

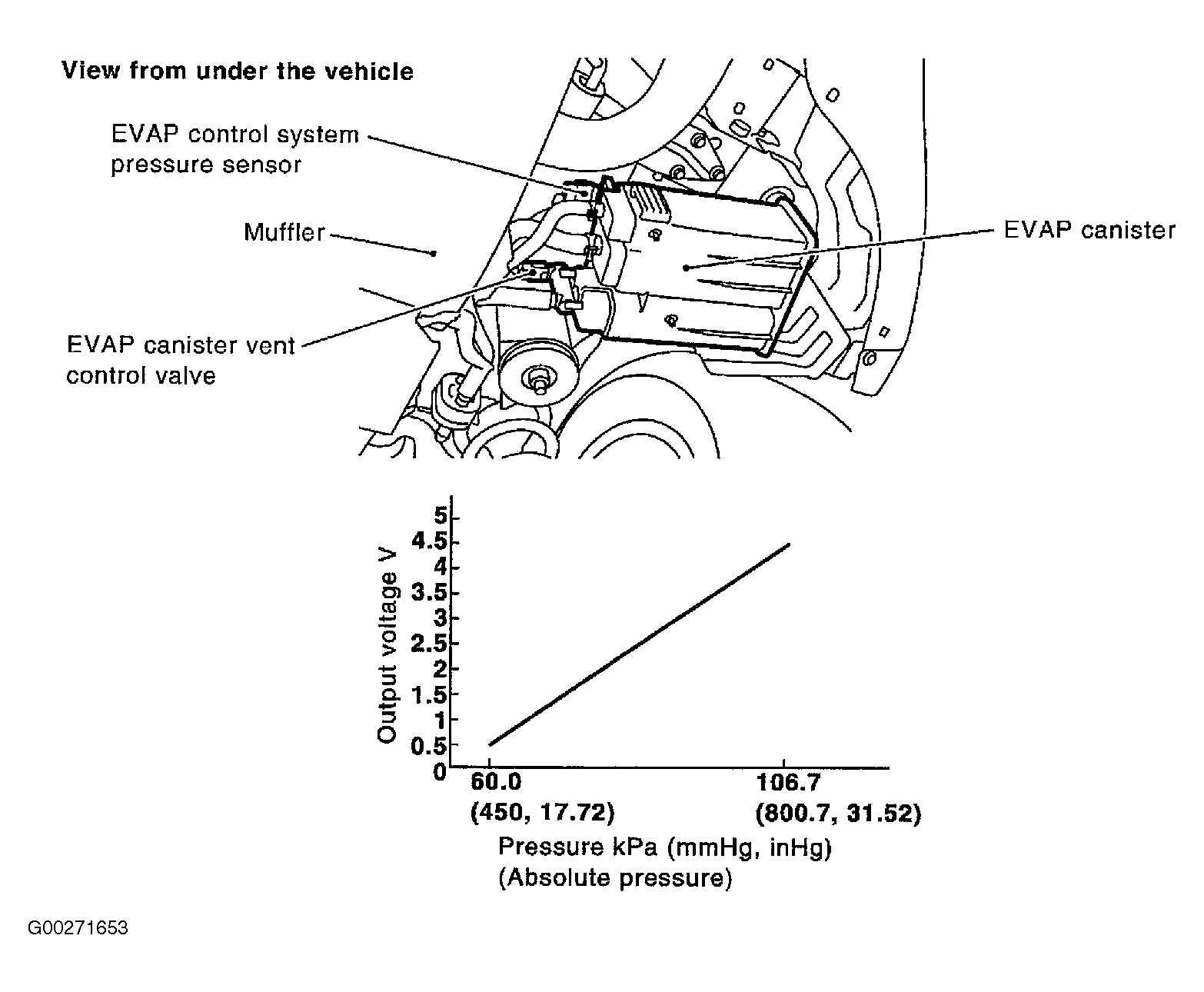

Fig 1: Locating EVAP Control System Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
