On-Board Diagnosis Logic

For DTC P0453 on-board diagnosis logic, see Fig 1.

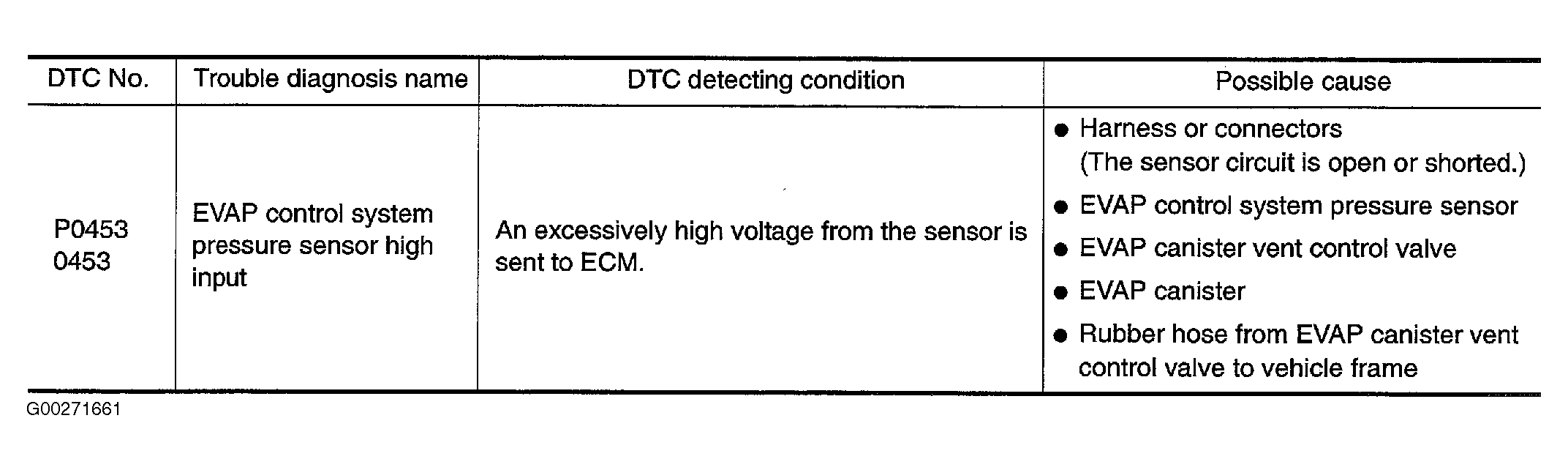

Fig 1: DTC P0453 On-Board Diagnosis Logic
G00271661Courtesy of NISSAN MOTOR CO., U.S.A.
