Diagnostic Procedure

For DTC P1121 diagnostic procedure, related circuit diagrams and connector identification, see Fig 1-Fig 6 .

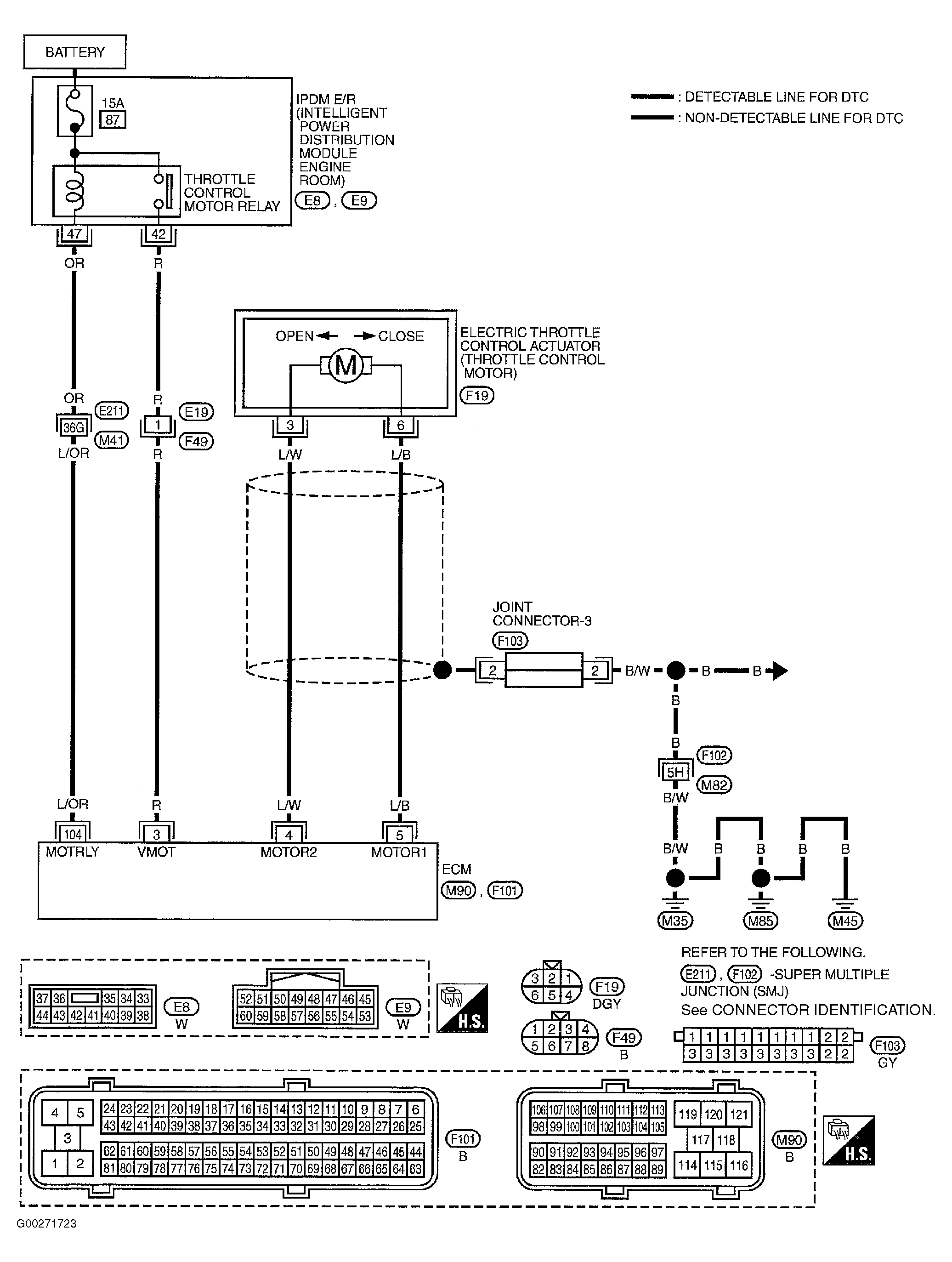

Fig 1: Identifying Electric Throttle Control Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

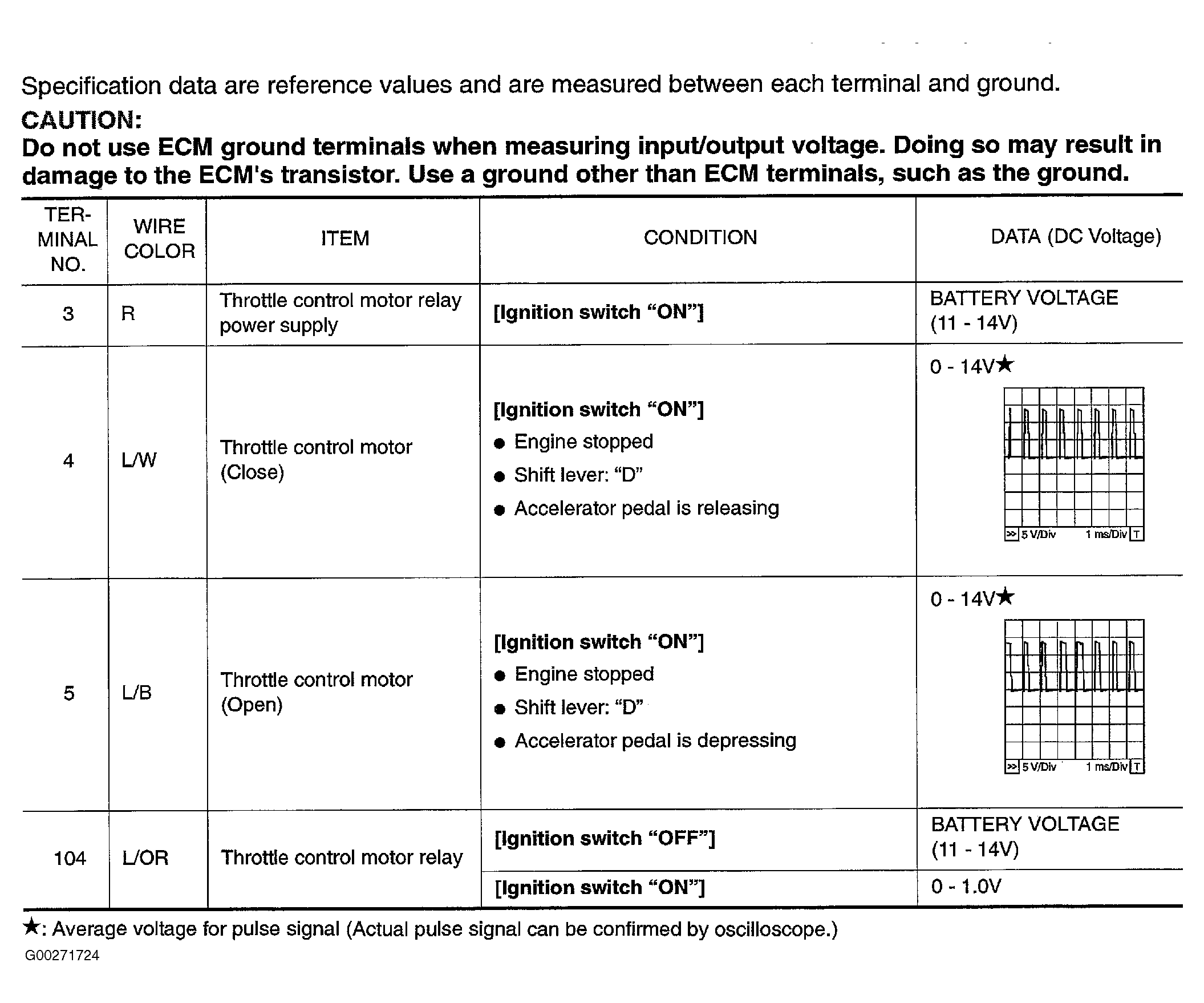

Fig 2: Identifying Throttle Control Circuit Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

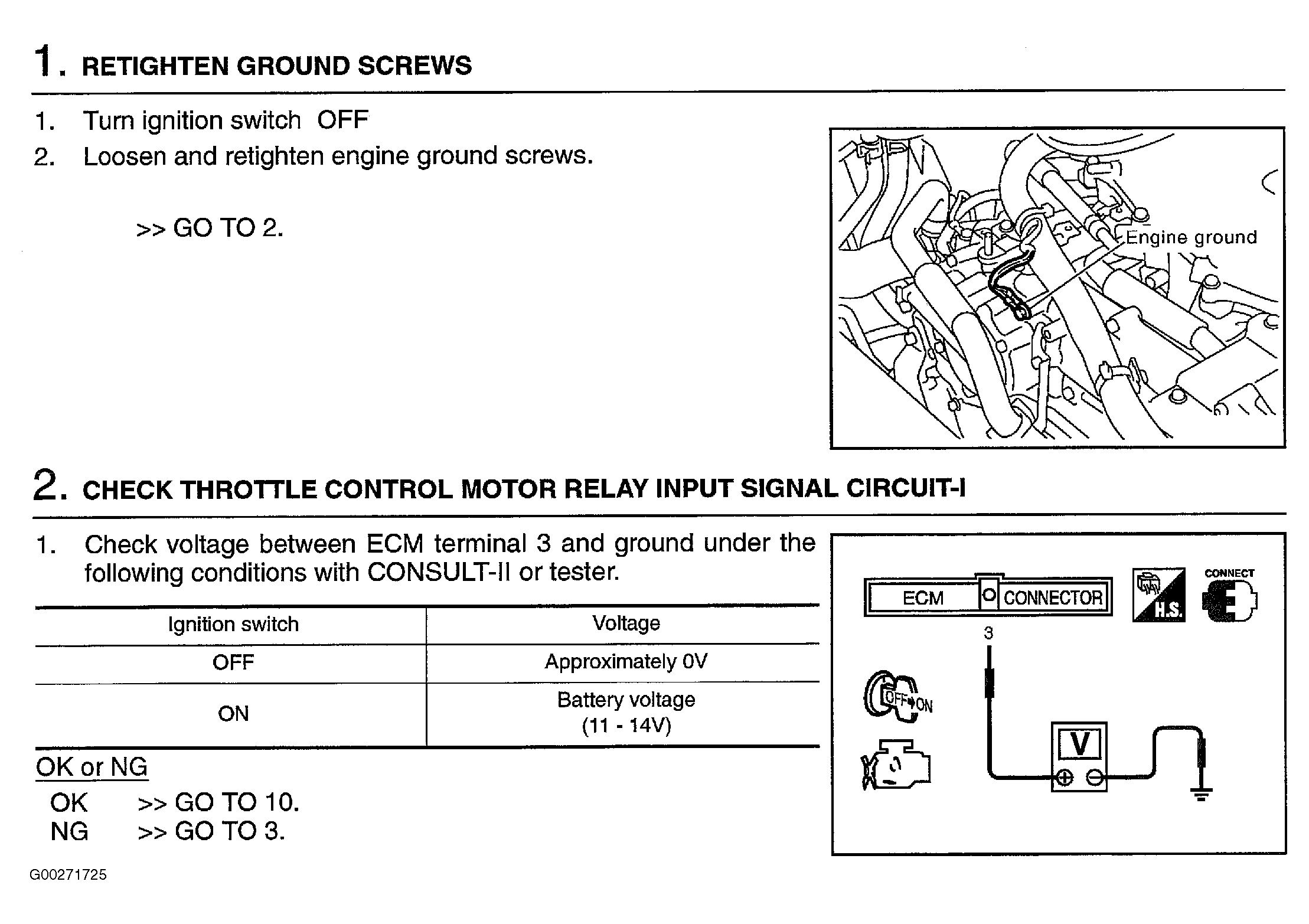

Fig 3: DTC P1121 Diagnostic Procedure (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

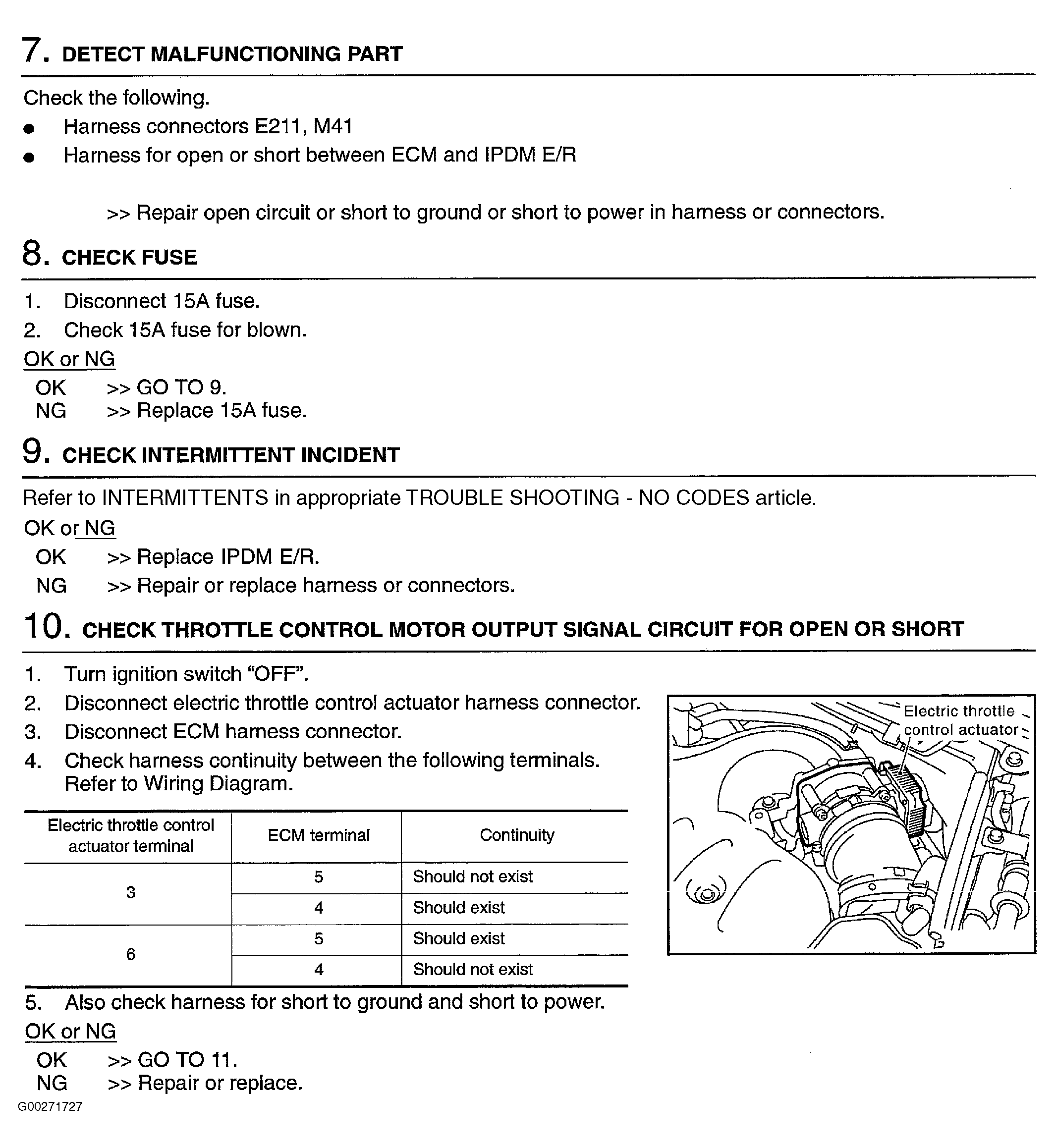

Fig 4: DTC P1121 Diagnostic Procedure (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

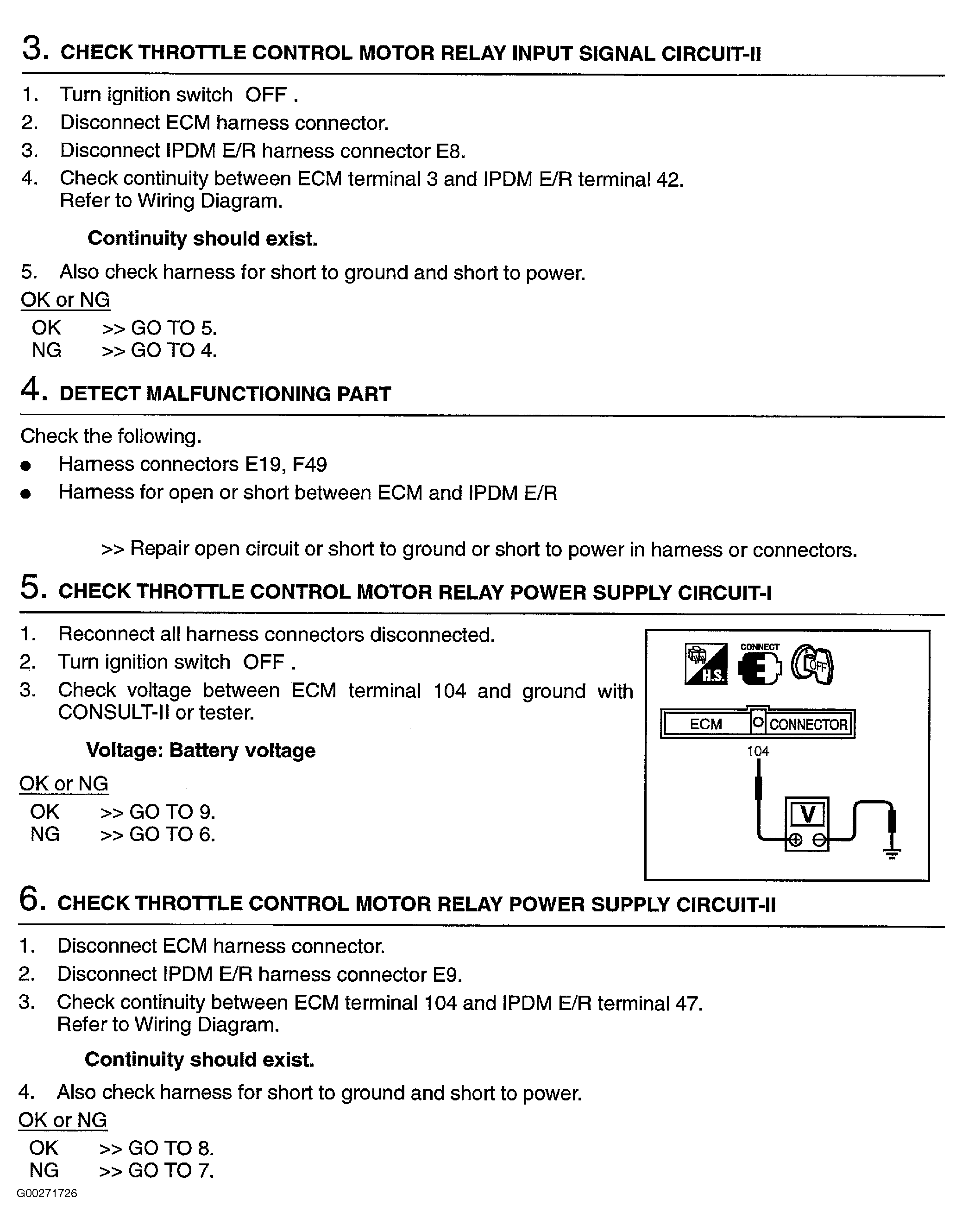

Fig 5: DTC P1121 Diagnostic Procedure (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

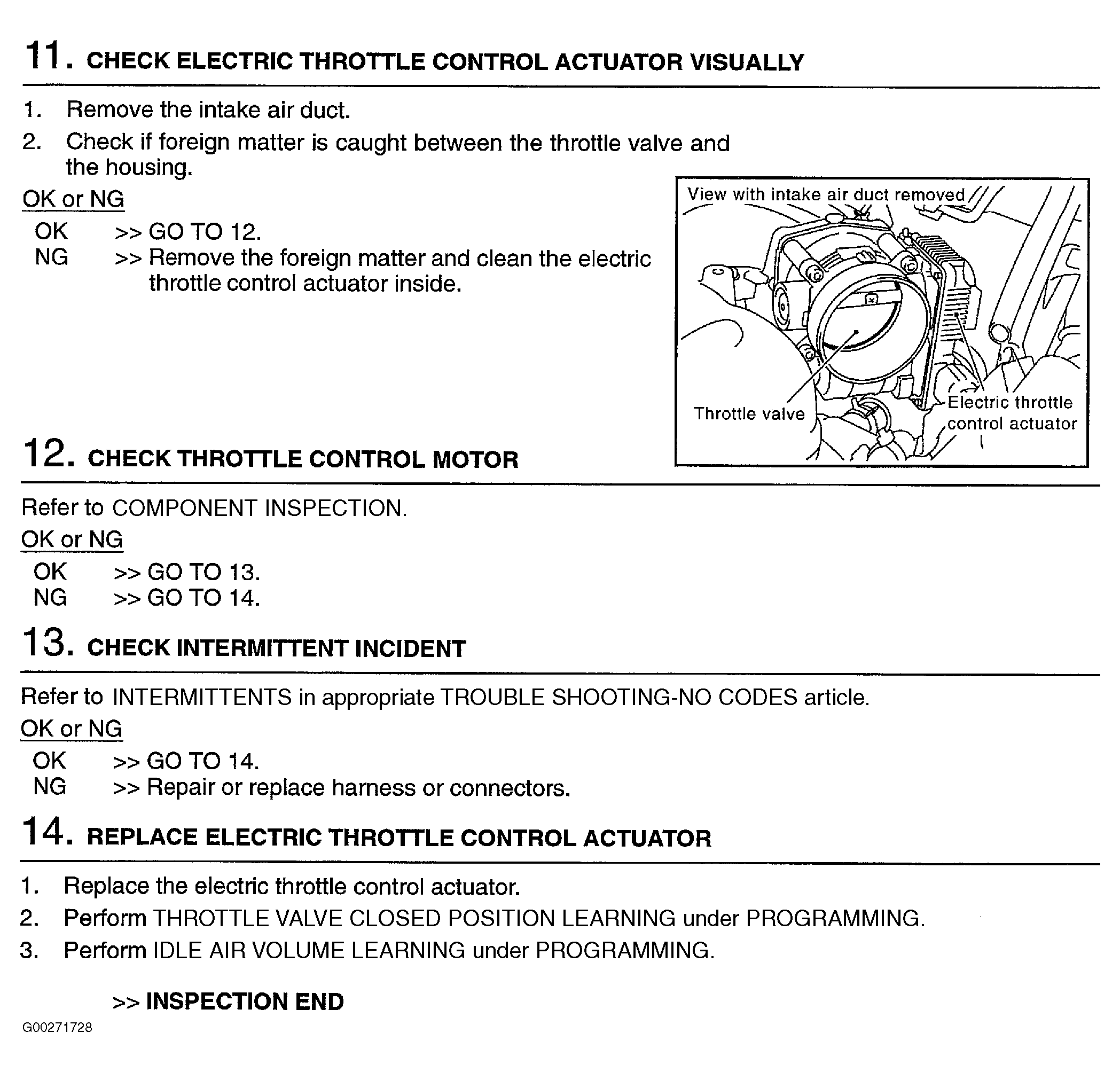

Fig 6: DTC P1121 Diagnostic Procedure (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
