Component Inspection

For ASCD brake switch and stop lamp switch testing, see Fig 1.

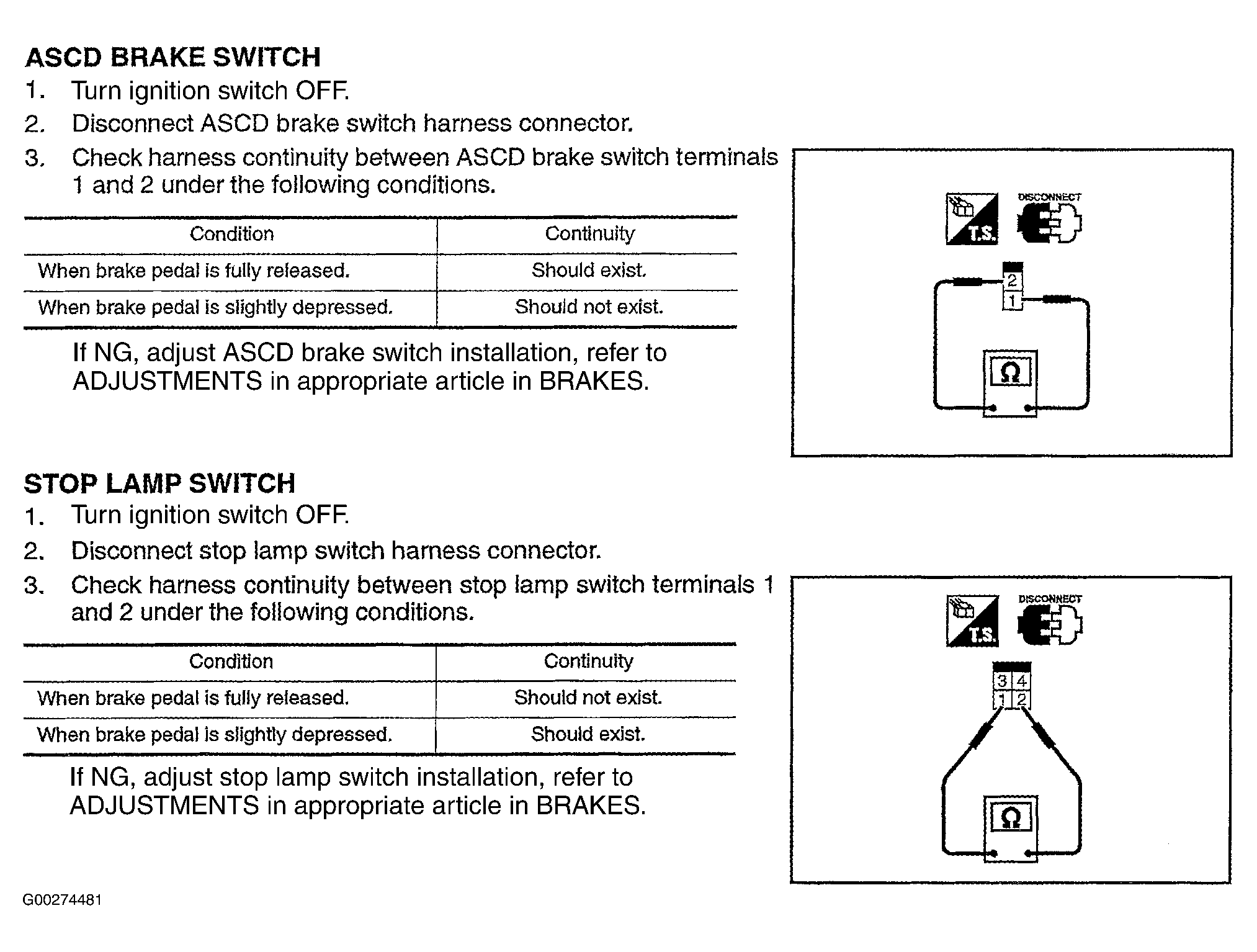

Fig 1: Testing ASCD : Brake & Stop Lamp Switches
G00274481Courtesy of NISSAN MOTOR CO., U.S.A.
