Diagnostic Procedure

For DTC P1574: ASCD Vehicle Speed Sensor diagnostic procedure, see Fig 1.

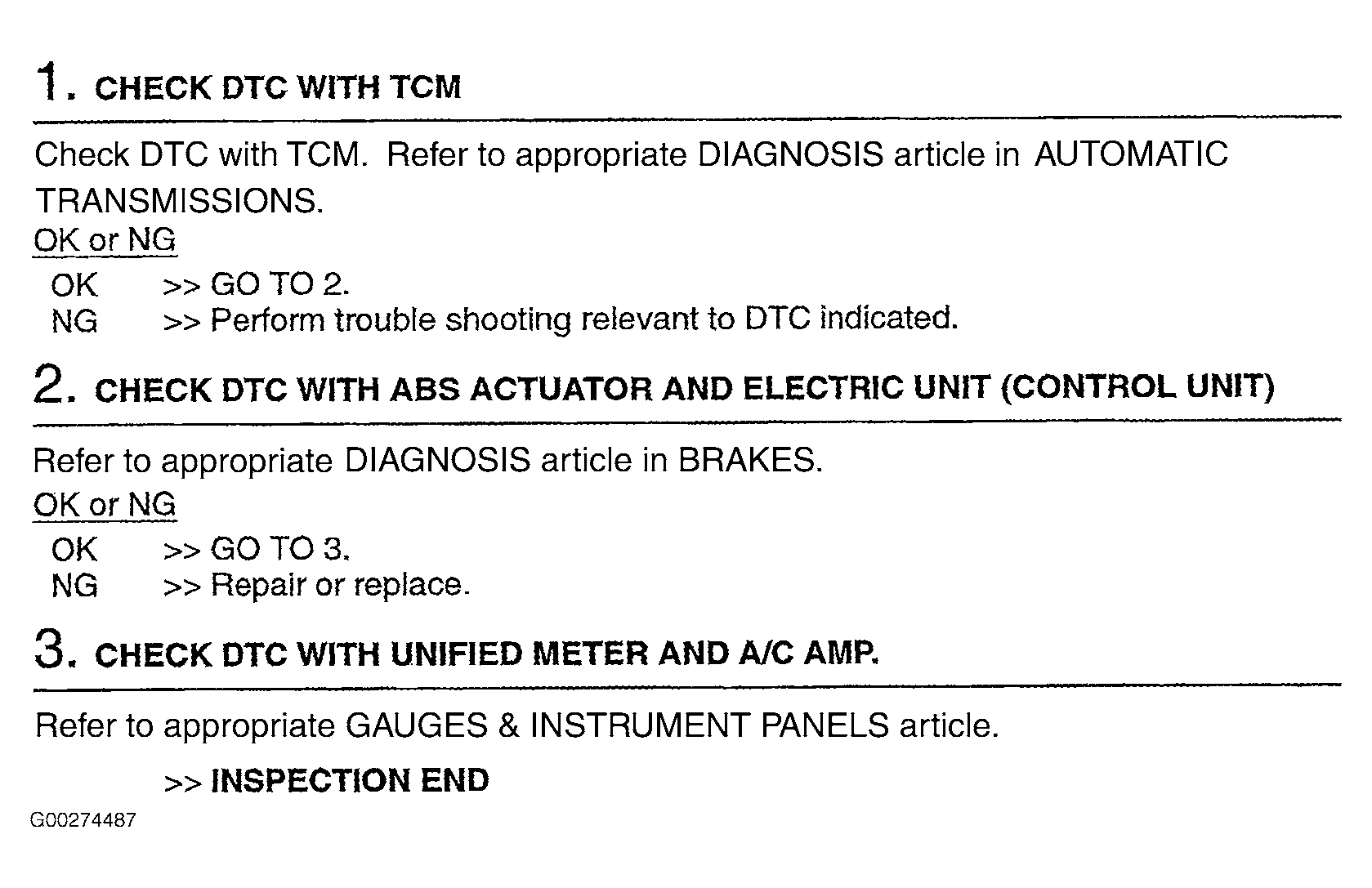

Fig 1: DTC P1574: ASCD Vehicle Speed Sensor Diagnostic Procedure
G00274487Courtesy of NISSAN MOTOR CO., U.S.A.
