Diagnostic Procedure

For DTC P2138 diagnostic procedure, related circuits and connector identification, see Fig 1-Fig 4 .

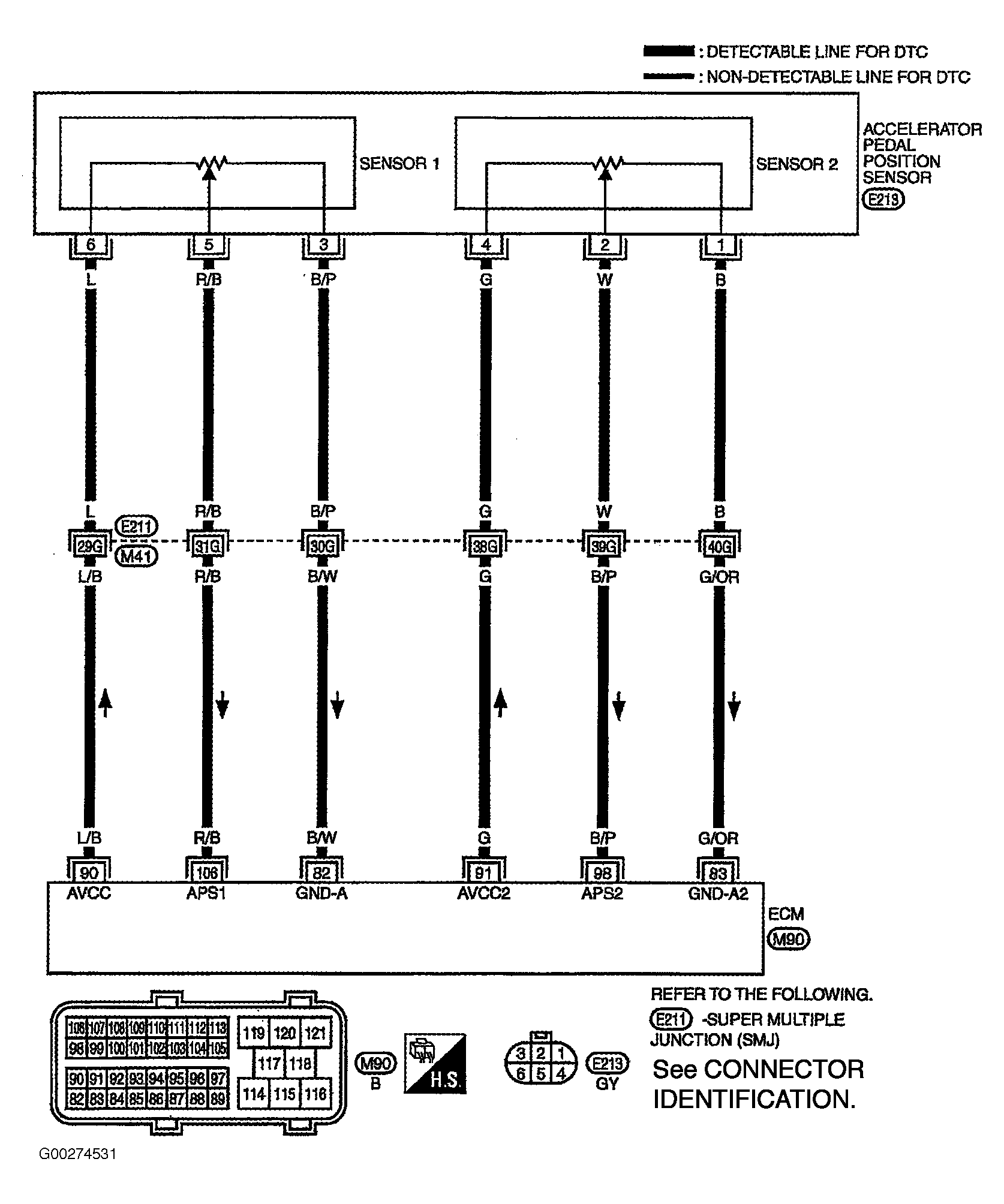

Fig 1: Identifying APP Sensor Related Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

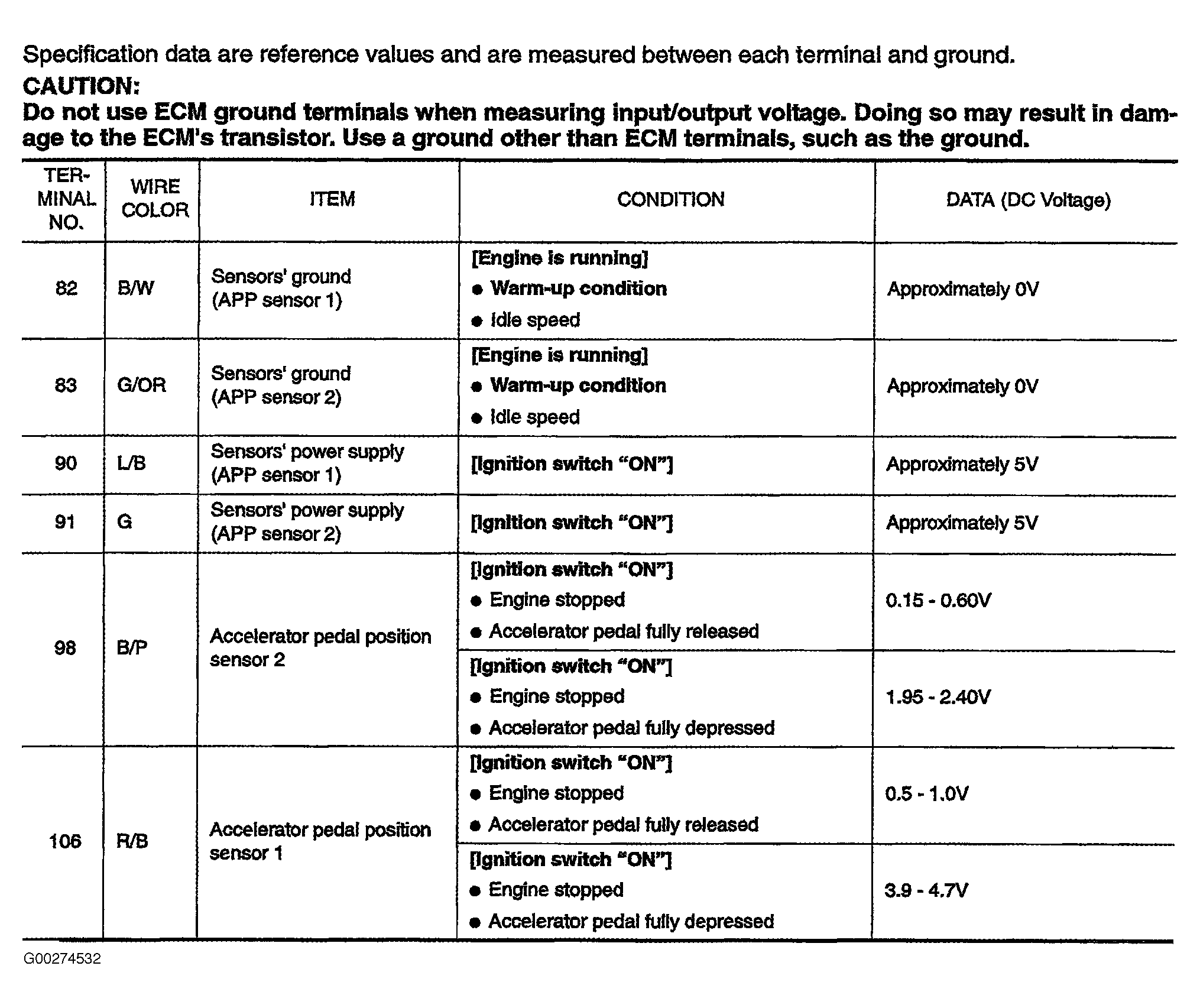

Fig 2: Identifying APP Sensor Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

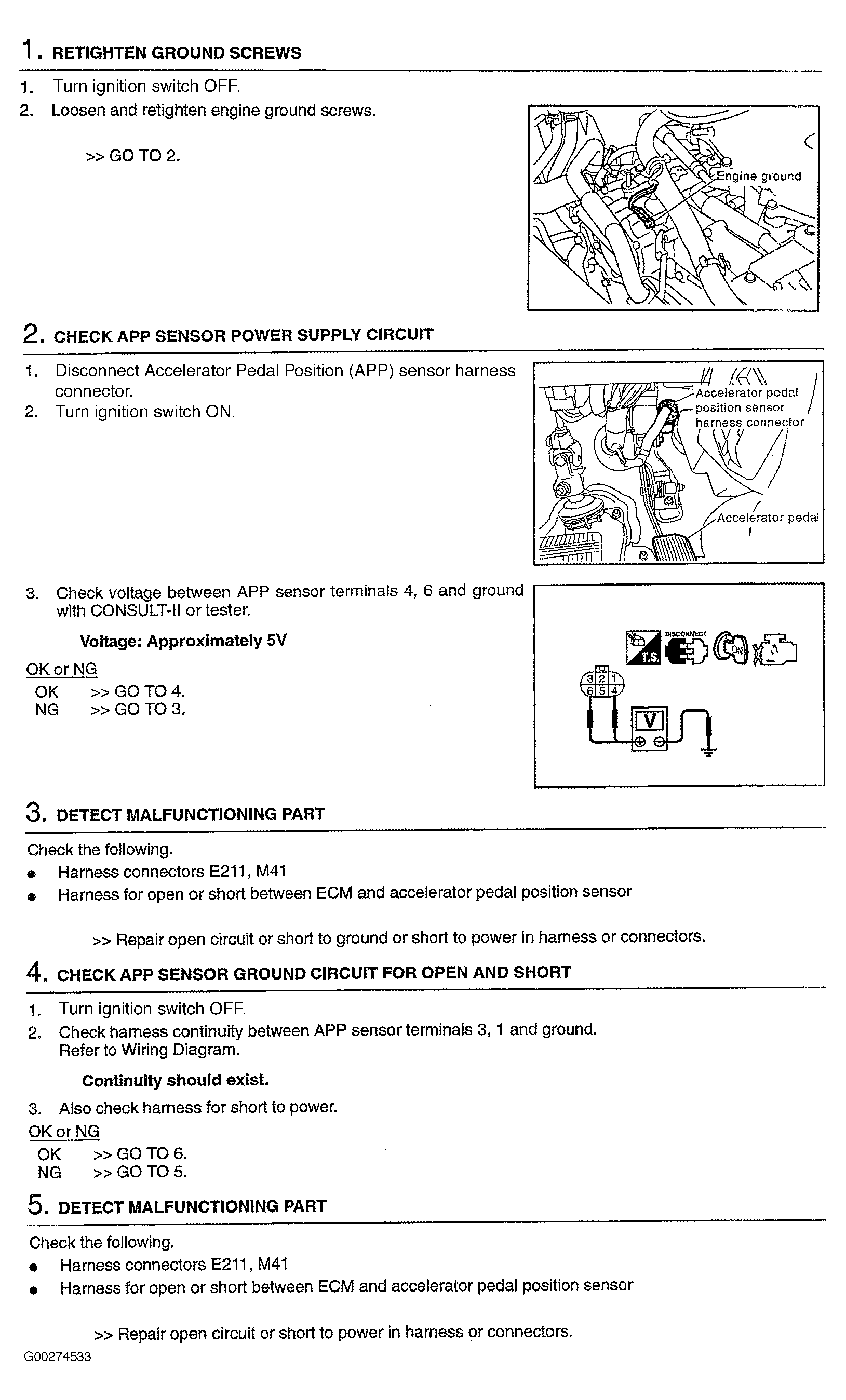

Fig 3: DTC P2138 Diagnostic Procedure (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

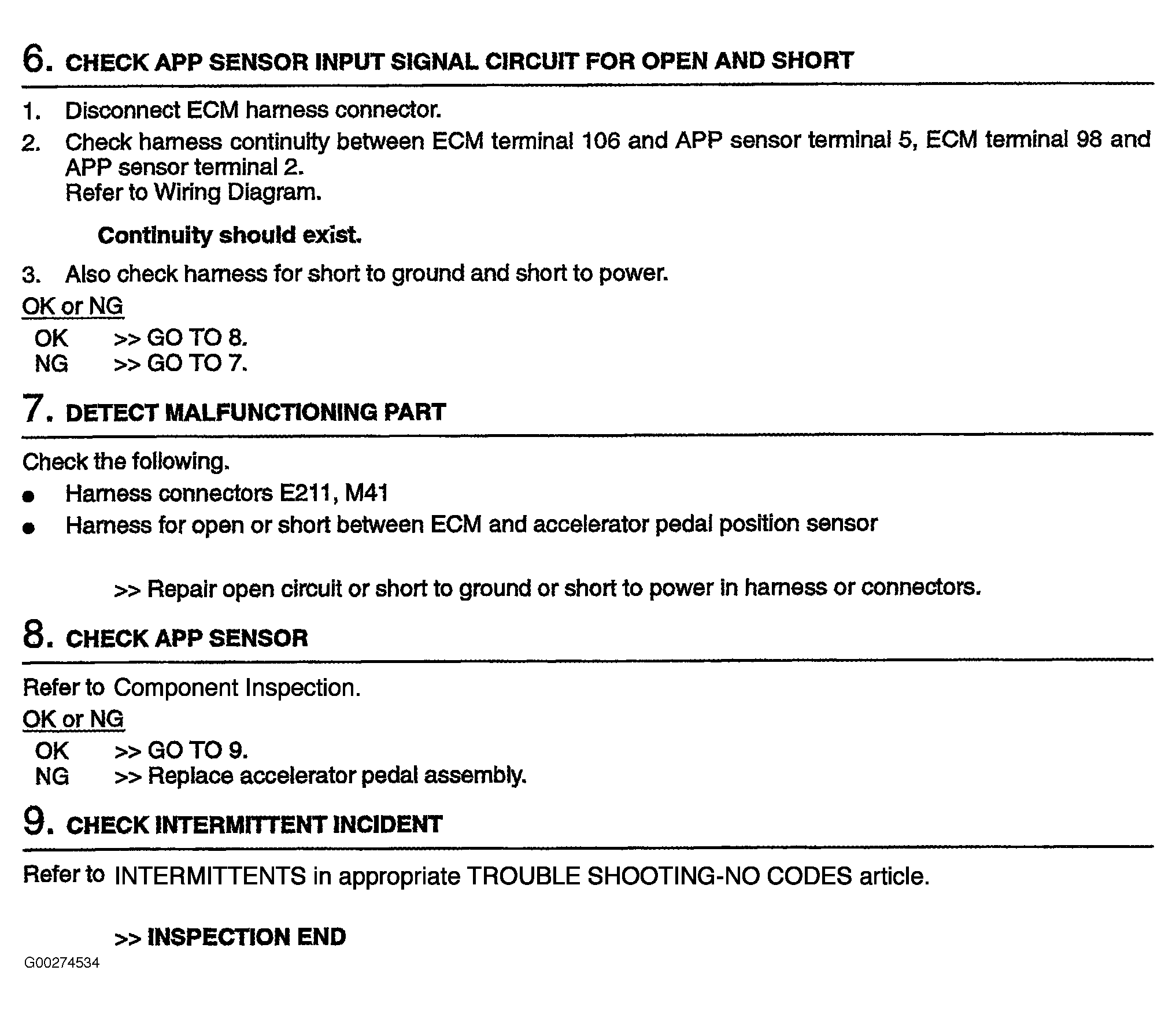

Fig 4: DTC P2138 Diagnostic Procedure (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
