No Tools

The number of blinks of the MIL in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC. Example: 0340, 1148, 1706, etc. These DTCs are controlled by NISSAN.

Output of a DTC indicates a malfunction. However, GST or the Diagnostic Test Mode II do not indicate whether the malfunction is still occurring or has occurred in the past and has returned to normal. CONSULT-II can identify malfunction status as shown. See Fig 5. Therefore, using CONSULT-II (if available) is recommended.

A sample of CONSULT-II display for DTC and 1st trip DTC is as shown. See Fig 5. DTC or 1st trip DTC of a malfunction is displayed in SELF-DIAGNOSTIC RESULTS mode of CONSULT-II. Time data indicates how many times the vehicle was driven after the last detection of a DTC. If the DTC is being detected currently, the time data will be zero. If a 1st trip DTC is stored in the ECM, the time data will be "1t". See Fig 5.

Fig 1: Emission-Related Diagnostic Information Items (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

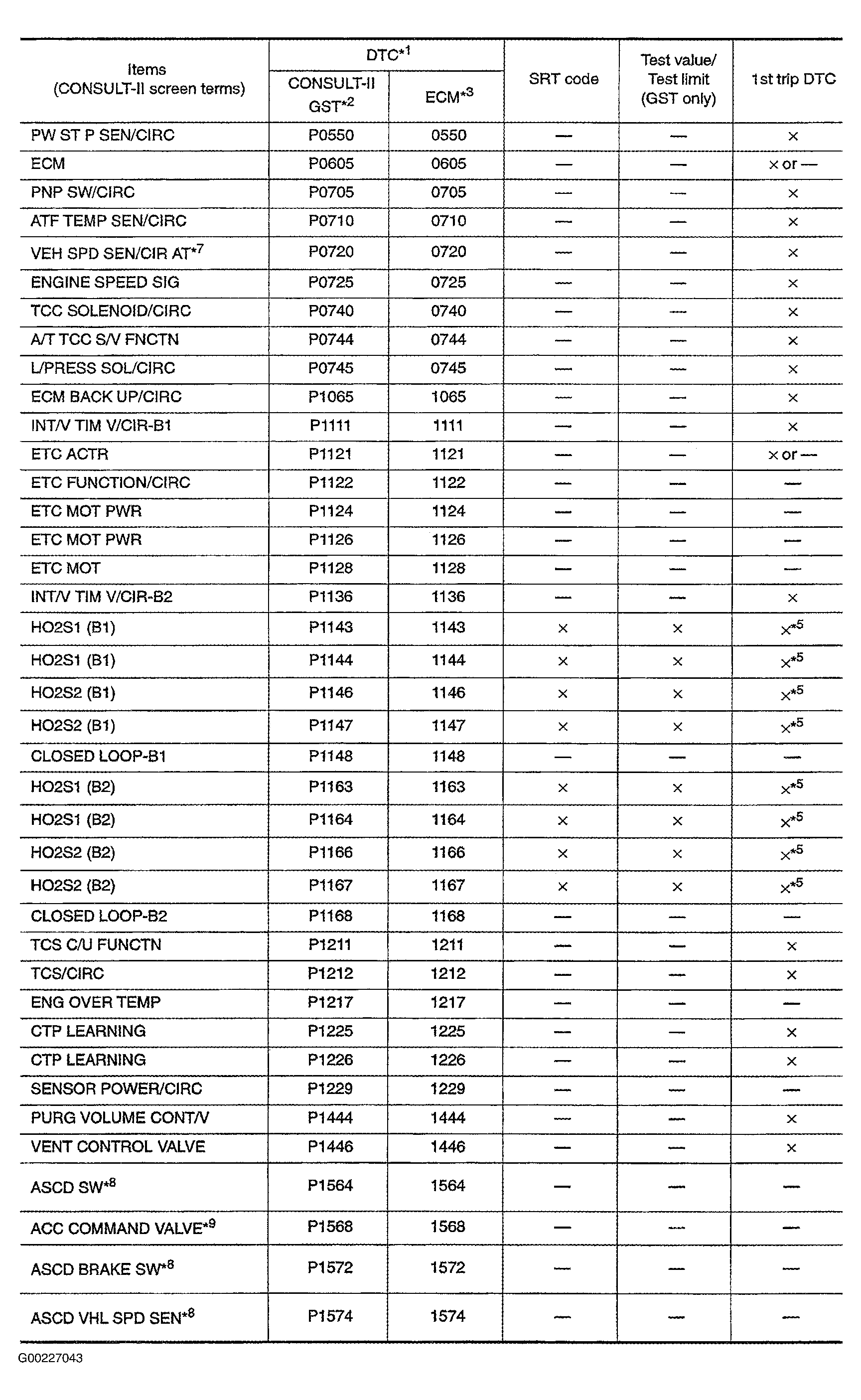

Fig 2: Emission-Related Diagnostic Information Items (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Emission-Related Diagnostic Information Items (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Emission-Related Diagnostic Information Items (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

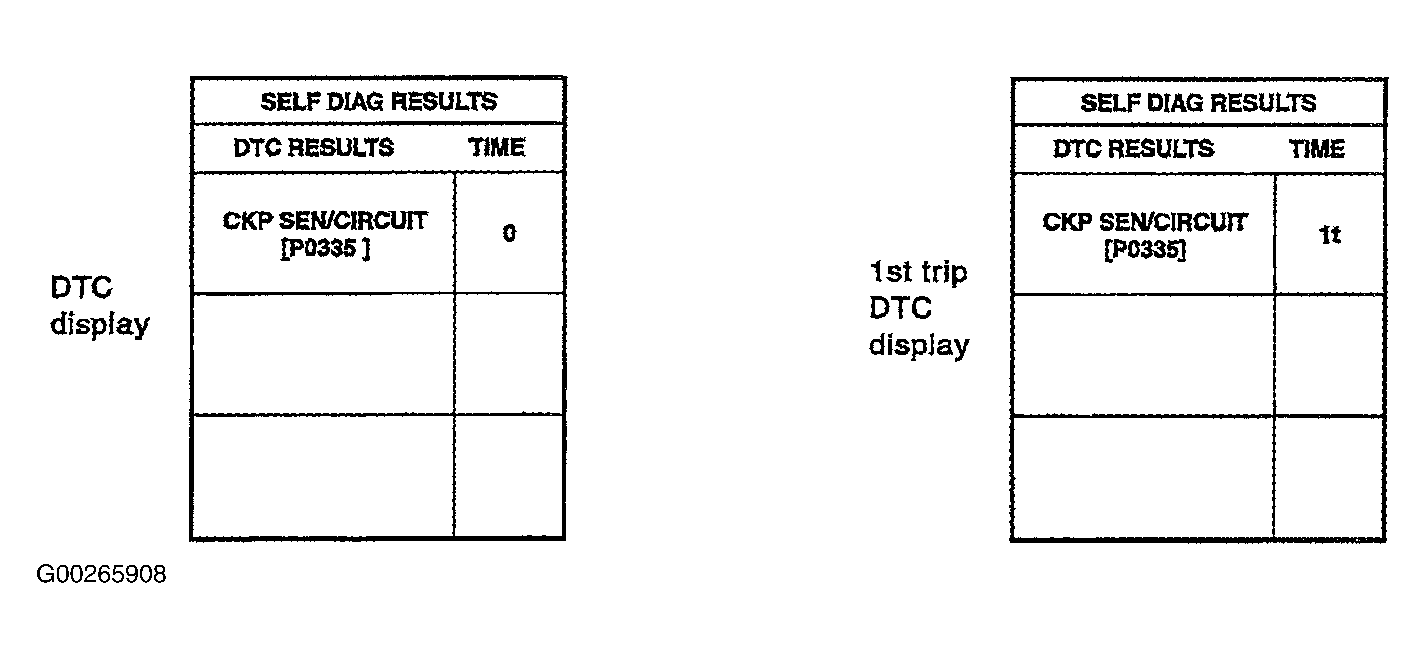

Fig 5: CONSULT-II Display Sample

Courtesy of NISSAN MOTOR CO., U.S.A.
