Door Mirror Remote Control Switch (Changeover switch) Circuit Check

  1. CHECK FUNCTION

    With CONSULT-II

    Check the operation on "MIR CHNG SW-R" or "MIR CHNG SW-L" in the DATA MONITOR.

    CHECKING MIRROR SENSOR With CONSULT-II

    Monitor item [OPERATION or UNIT] Contents
    MIR CHNG SW-R "ON/OFF" ON/OFF status judged from the door mirror remote control switch (switching to RIGHT) signal is displayed.
    MIR CHNG SW-L "ON/OFF" ON/OFF status judged from the door mirror remote control switch (switching to LEFT) signal is displayed.

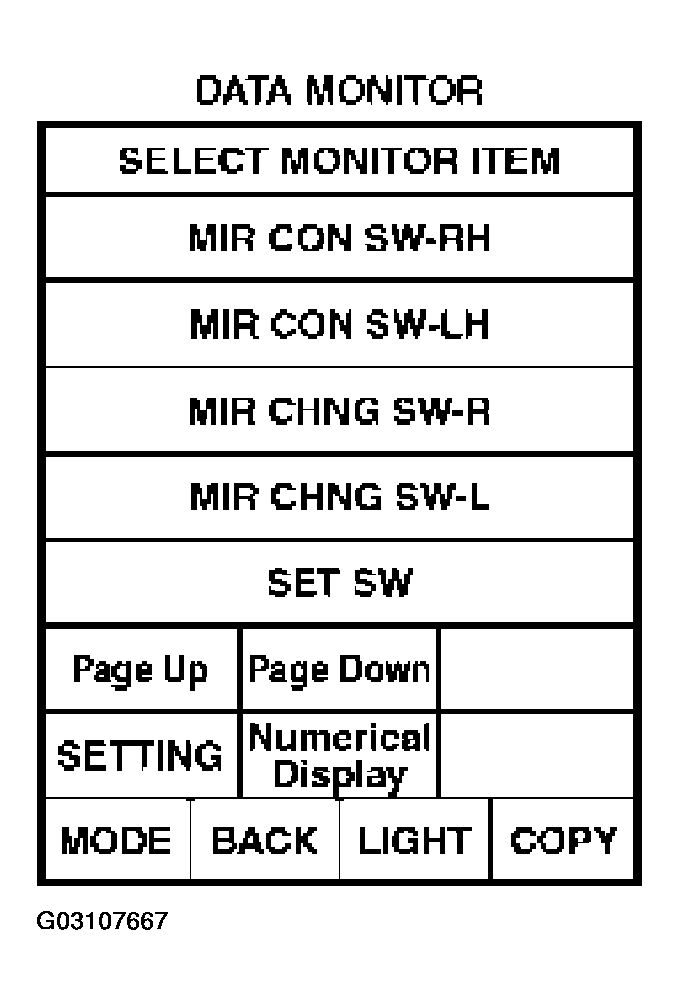

    Fig 1: CONSULT-II Display - MIR CHNG SW-L In DATA MONITOR
    G03107667Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch to ACC position.
    2. Check voltage between automatic drive positioner control unit connector and ground.
      TERMINAL VOLTAGE

      Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
      (+) (-)
      M19 2 (G/W) Ground Changeover switch RIGHT position 0
      Changeover switch neutral position 5
      18 (L/OR) Changeover switch LEFT position 0
      Changeover switch neutral position 5

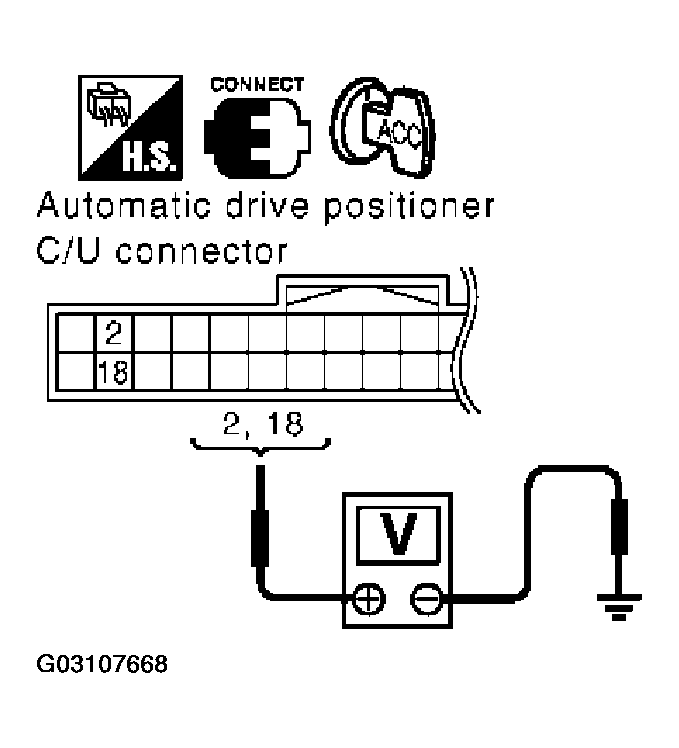

      Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground
      G03107668Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Door mirror remote control switch (changeover switch) circuit is OK.
    2. NG: GO TO 2.
  2. CHECK CHANGEOVER SWITCH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control unit connector.
    3. Check continuity between automatic drive positioner control unit connector M49 terminal 2 (G/W), 18 (L/OR) and door mirror remote control unit connector M18 terminal 5 (L/OR), 6 (G/W).

      2 (G/W) - 5 (L/OR): Continuity should exist.

      18 (L/OR) - 6 (G/W): Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M49 terminal 2 (G/W), 18 (L/OR) and ground.

      2 (G/W) - Ground: Continuity should not exist.

      18 (L/OR) - Ground: Continuity should not exist.

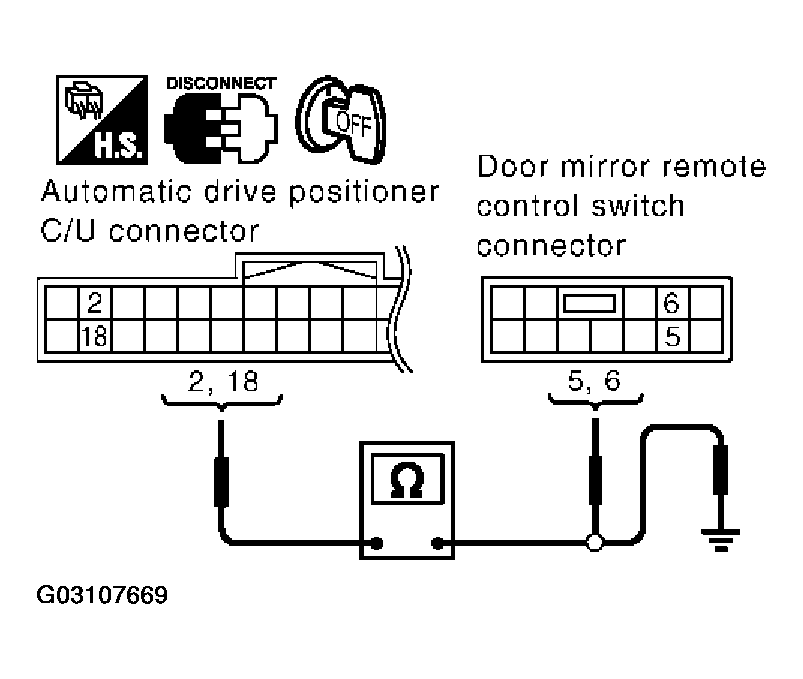

      Fig 3: Checking Changeover Switch Circuit Harness Continuity
      G03107669Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace harness between automatic drive positioner control unit and door remote control switch.
  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

    Check continuity between door mirror remote control switch connector M18 terminal 7 (B) and ground.

    7 (B) - Ground: Continuity should exist.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace harness.

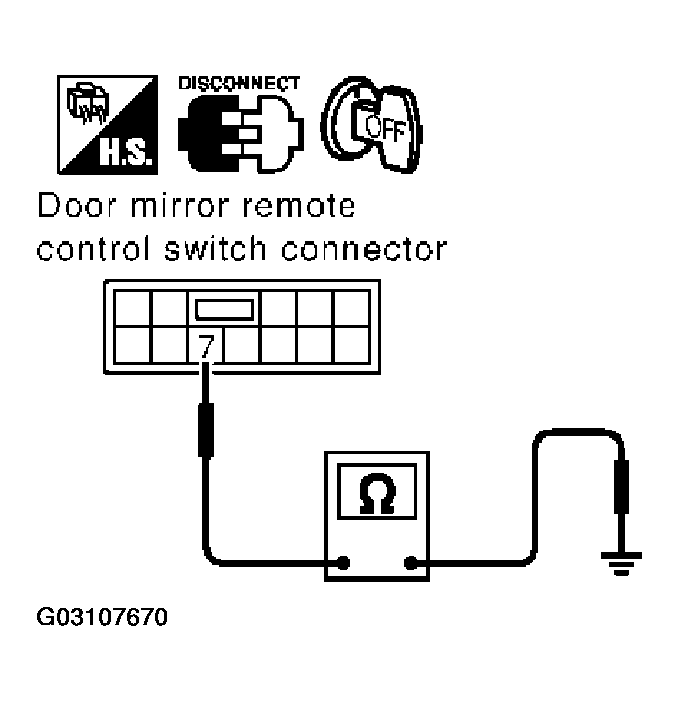

      Fig 4: Checking Door Mirror Remote Control Switch Ground Circuit
      G03107670Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CANGEOVER SWITCH)

    Check continuity between door mirror remote control switch as follows.

    TERMINAL CONTINUITY

    Connector Terminals Condition Continuity
    (+) (+)
    M18 5 7 Changeover switch RIGHT position Yes
    Changeover switch neutral position No
    6 Changeover switch LEFT position Yes
    Changeover switch neutral position No

    OK or NG

    1. OK: Check the condition of the harness and the connector.
    2. NG: Replace door mirror remote control switch.

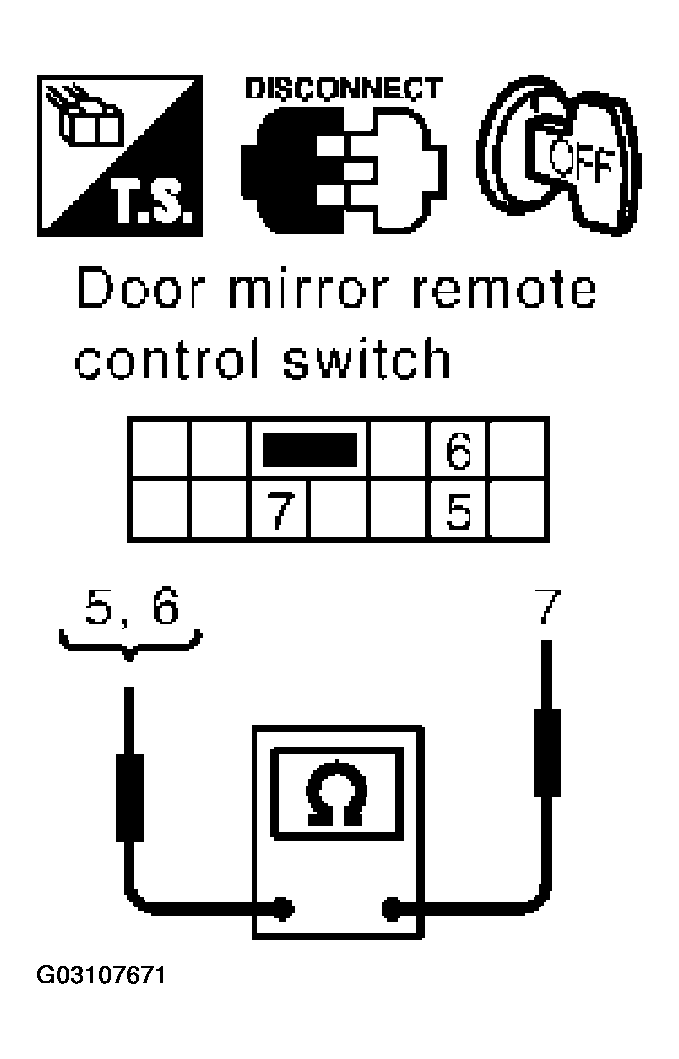

      Fig 5: Checking Door Mirror Remote Control Switch (Changeover Switch)
      G03107671Courtesy of NISSAN MOTOR CO., U.S.A.
