Adjustment Of A/T Position

  1. Loosen nut of control rod.
  2. Place PNP switch and selector lever in P position.
  3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque.
    CAUTION: Do not push the bracket.
    1. :26 N.m (2.7 kg-m, 19 ft-lb)

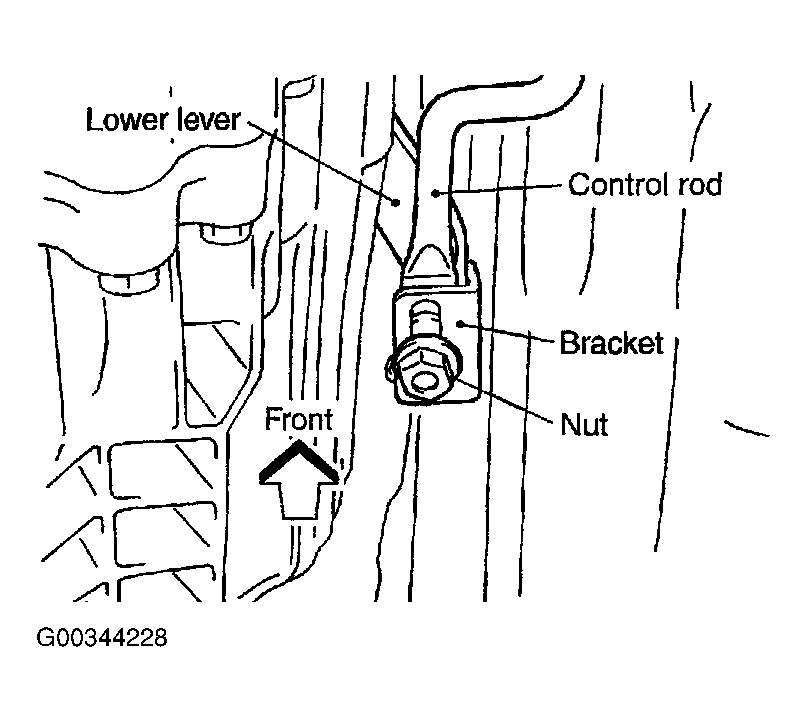

Fig 1: Adjusting Control Rod
G00344228Courtesy of NISSAN MOTOR CO., U.S.A.
