Front Drive Shaft

Using a press and drift, install the front drive shaft front bearing into front drive shaft.
Tool number: ST30022000 (-)

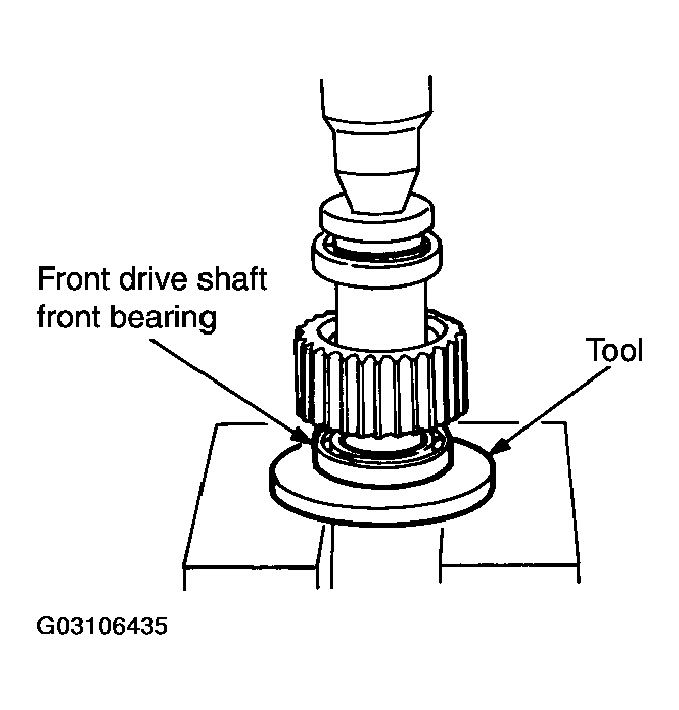

Fig 1: Installing Front Drive Shaft Front Bearing Into Front Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a press and drift, install the front drive shaft rear bearing into front drive shaft.
Tool number :ST30914000(-)

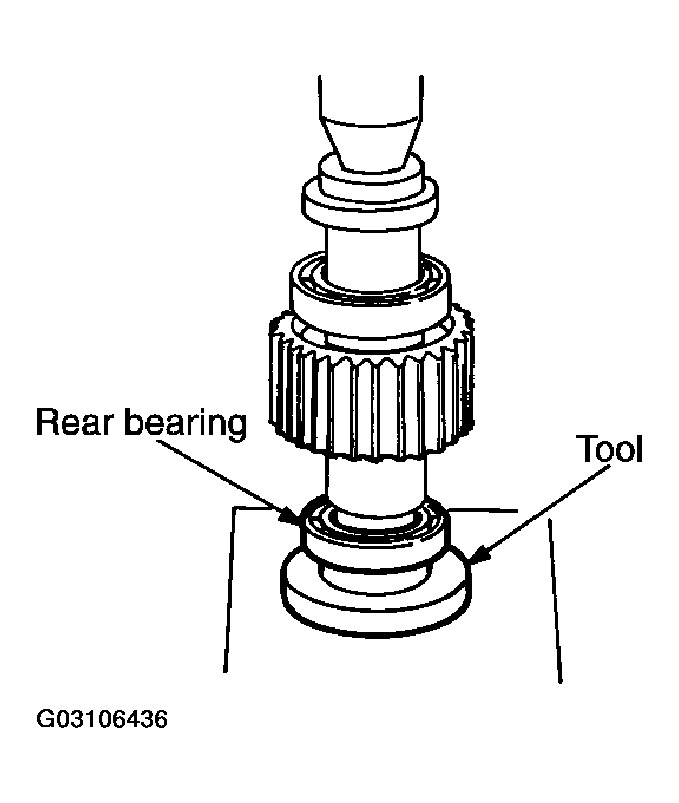

Fig 2: Installing Front Drive Shaft Rear Bearing Into Front Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
