Transfer Fluid: Replacement: Filling

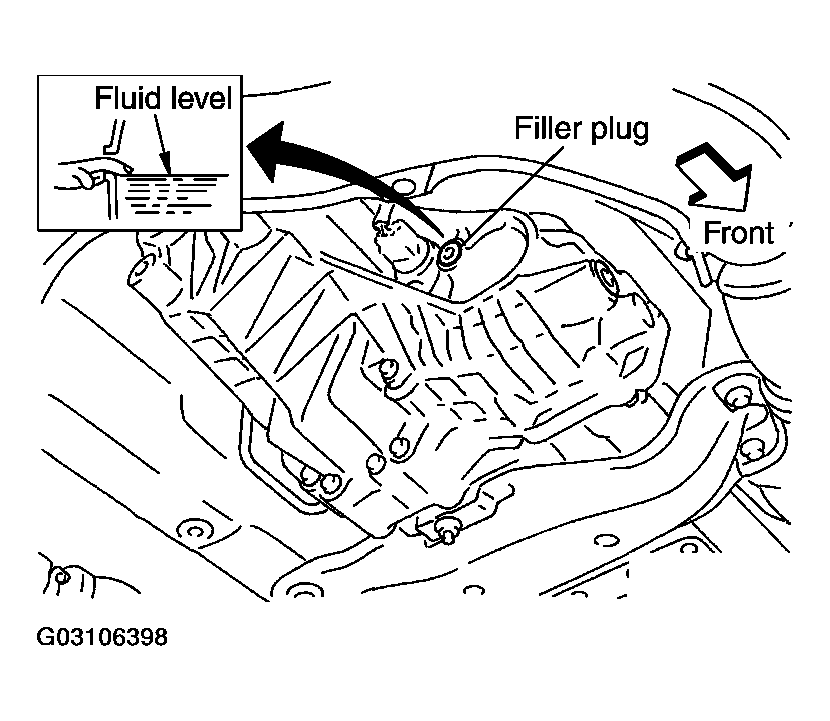

- Remove filler plug and add transfer fluid until fluid level reaches the specified limit near filler plug mounting hole.
Fluid capacity
:Approx. 1.25 l (2-5/8 US pt, 2-1/4 lmp pt)
CAUTION: Carefully fill the fluid. (Fill up for approx. 3 minutes.) - Leave the vehicle for 3 minutes, and check the fluid level again.
- Apply recommended sealant to filler plug. Install filler plug on transfer and tighten to the specified torque. Refer to
"COMPONENTS ".CAUTION: Discard the seal washer. Always replace with new one.
