Component Inspection

For mass airflow sensor testing, see Fig 1.

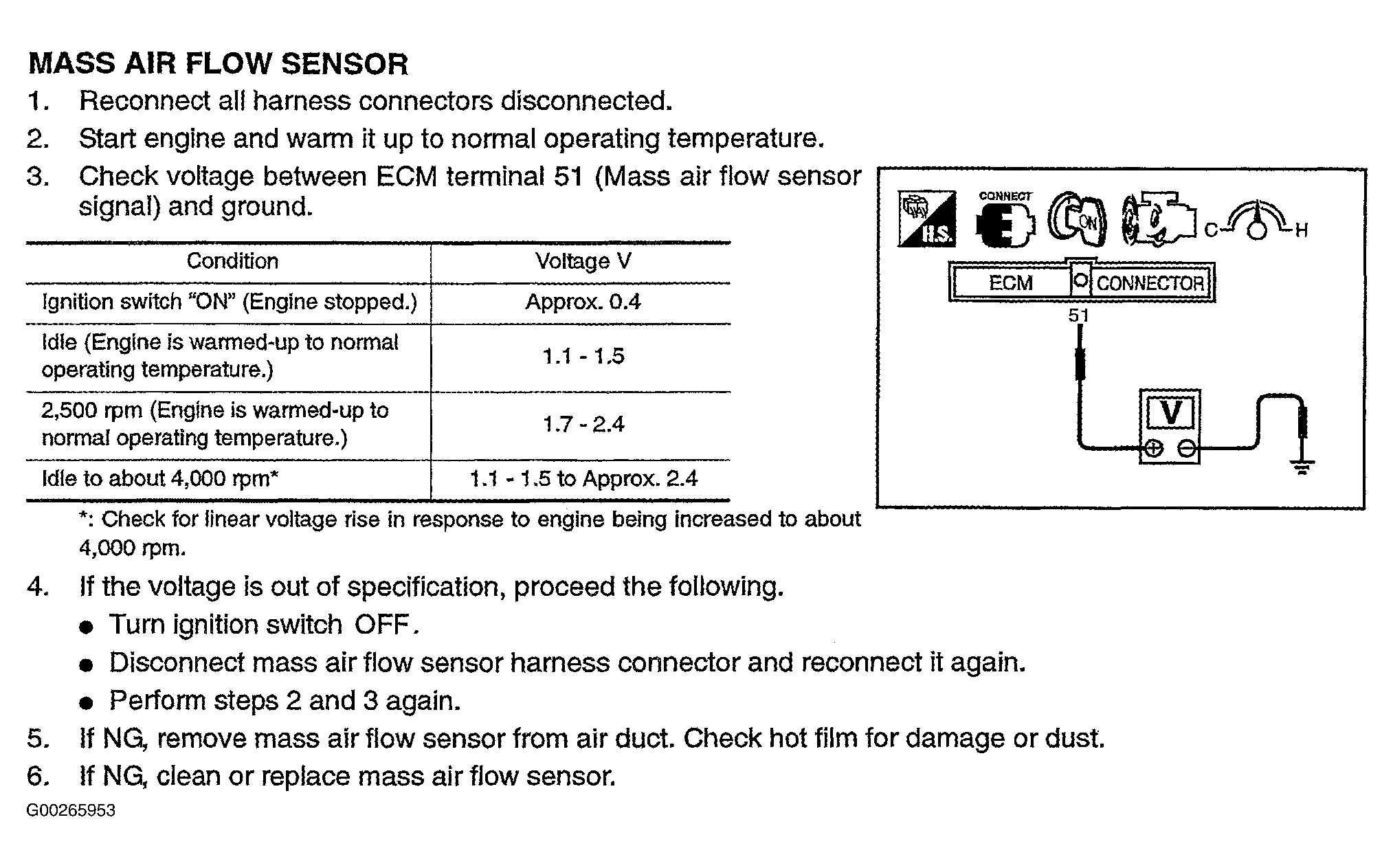

Fig 1: Testing Mass Airflow Sensor
G00265953Courtesy of NISSAN MOTOR CO., U.S.A.
