Diagnostic Procedure

CAUTION: DO NOT use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than the ECM terminals.

For DTC P0117 and P0118 diagnostic procedure, see Fig 1 and Fig 2 .

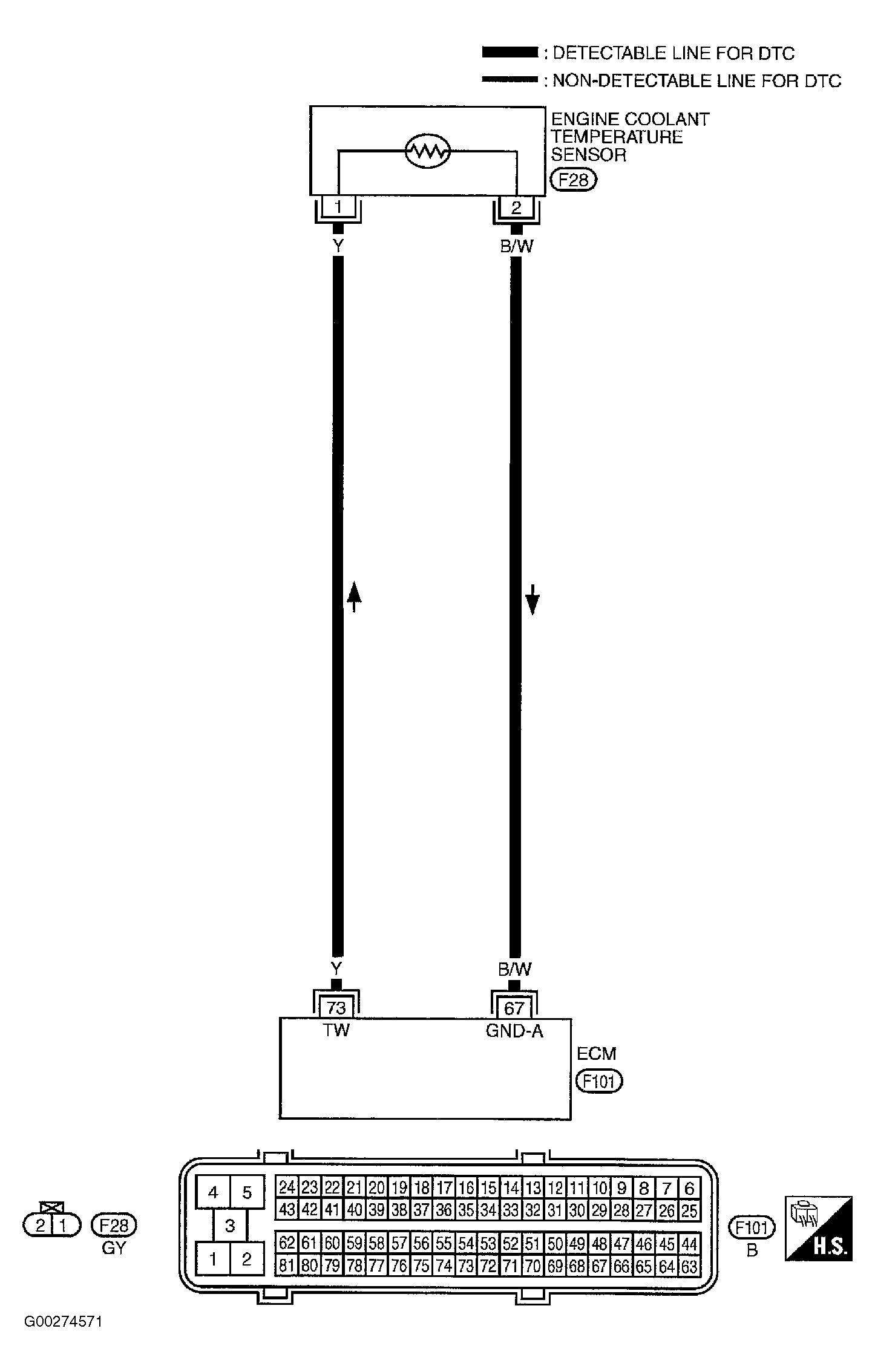

Fig 1: Identifying ECT Sensor Related Circuits & Connectors
G00274571Courtesy of NISSAN MOTOR CO., U.S.A.

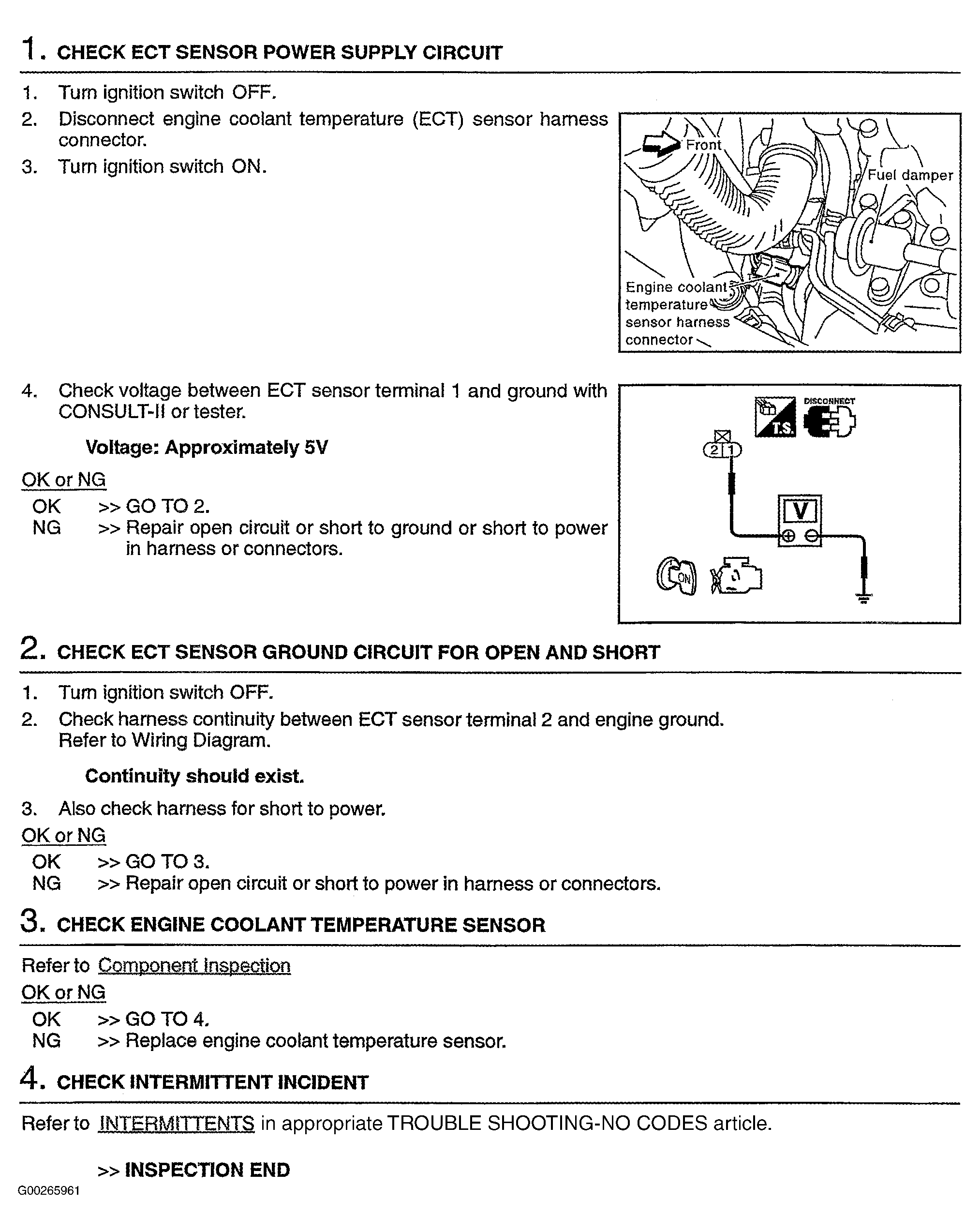

Fig 2: DTCs P0117 & P0118 Diagnostic Procedure
G00265961Courtesy of NISSAN MOTOR CO., U.S.A.
