Data Monitor Mode Reference Values

For intake valve timing control solenoid circuit specification data, see Fig 1.

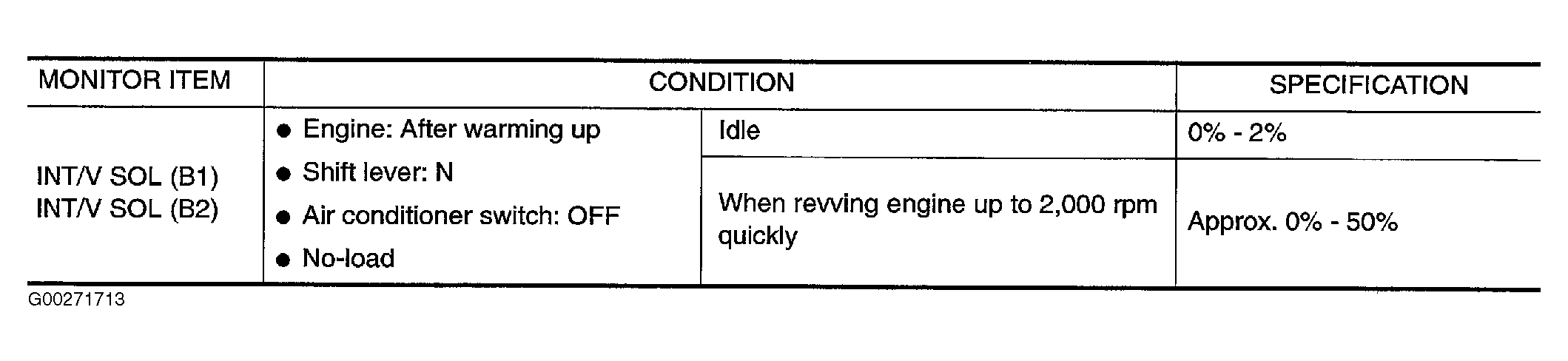

Fig 1: Intake Valve Timing Control Solenoid Circuit Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
