Consult-II Reference Value In Data Monitor Mode

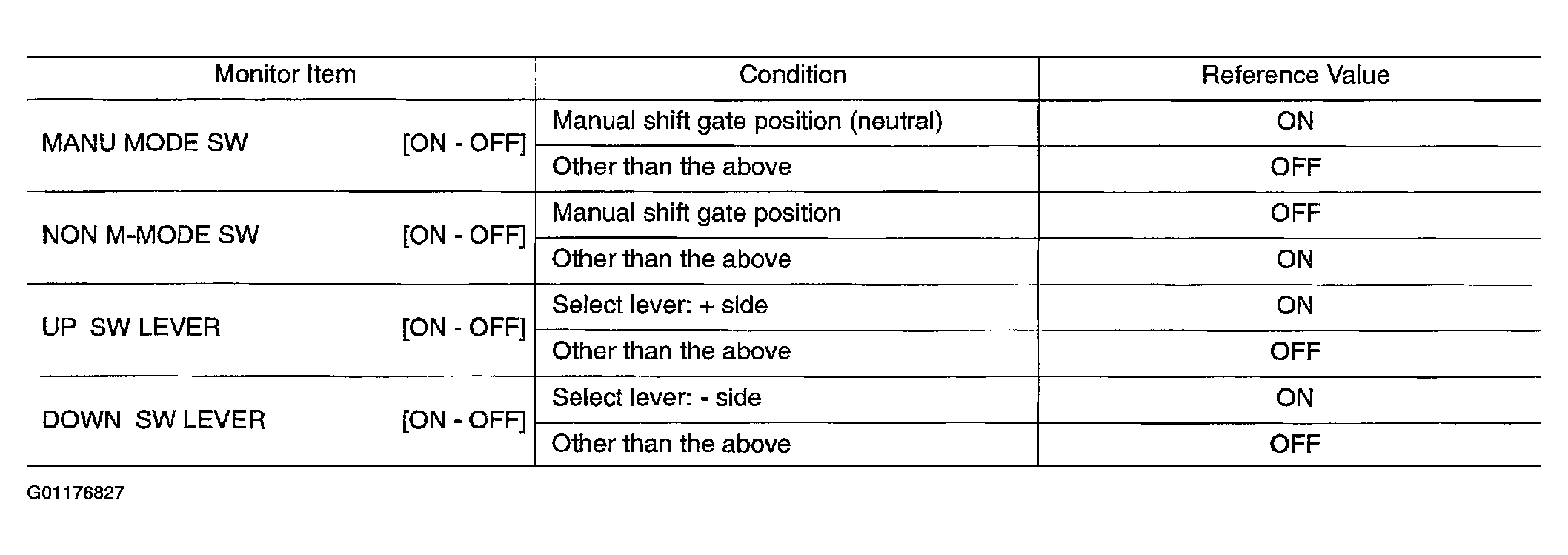

Fig 1: CONSULT-II Reference Value In Data Monitor Mode
G01176827Courtesy of NISSAN MOTOR CO., U.S.A.
