Front Power Window Regulator (Passenger Side) Circuit Check

1. Turn ignition switch ON.
2. Check voltage between front power window switch (passenger side) connector and ground.

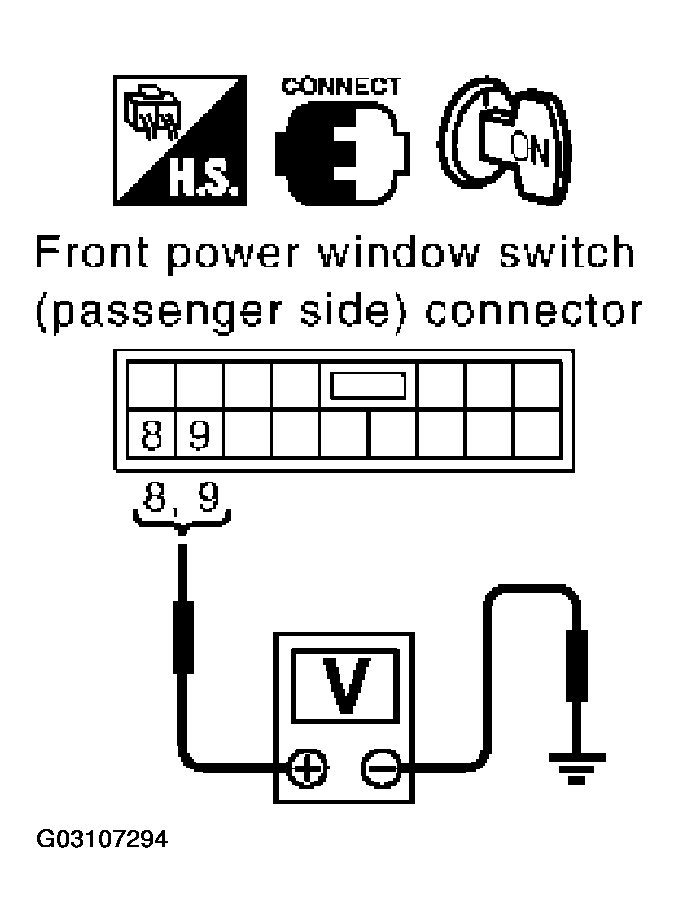

   Fig 1: Checking Power Window Main Switch (Passenger Switch) Output Signal

   Courtesy of NISSAN MOTOR CO., U.S.A.
   FRONT POWER WINDOW REGULATOR CIRCUIT (PASSENGER SIDE) VOLTAGE



   Connector	Terminals (Wire color)		Window condition	Voltage (V)(Approx.)
   	(+)	(-)
   D36	8 (L)	Ground	UP	Battery voltage
   			DOWN	0
   	9 (G)		UP	0
   			DOWN	Battery voltage

OK or NG

1. OK: GO TO 2.
2. NG: Replace front power window switch (passenger side).

1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) and front power window regulator (passenger side) connector.
3. Check continuity between front power window switch (passenger side) connector D36 terminals 8, 9 and front power window regulator (passenger side) connector D38 terminals 1, 2.

   8 (L) - 2 (L): Continuity should exist.

   9 (G) - 1 (G): Continuity should exist.

OK or NG

1. OK: Replace front power window regulator (passenger side).
2. NG: Repair or replace harness between front power window switch (passenger side) and front power window regulator (passenger side).

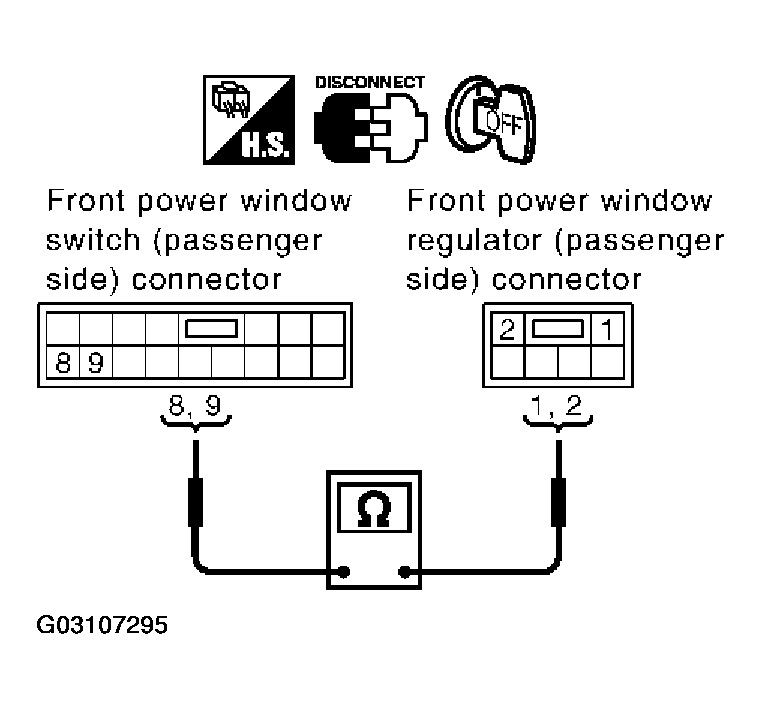

   Fig 2: Checking Front Power Window Regulator (Passenger Side) Harness Continuity

   Courtesy of NISSAN MOTOR CO., U.S.A.
