Terminal and Reference Value for Power Window Main Switch / With Front Power Window Anti-pinch System

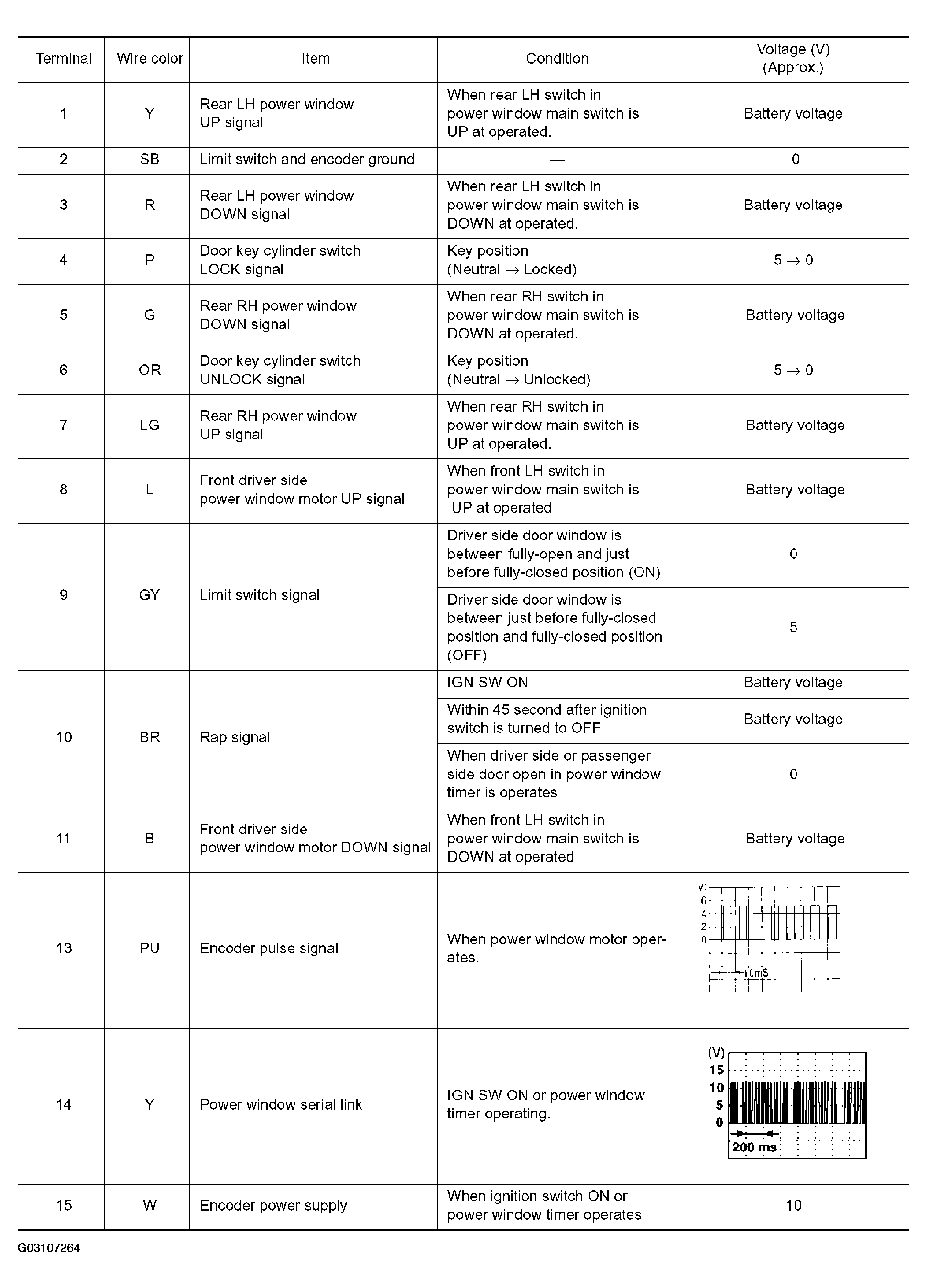

Fig 1: Terminal And Reference Value For Power Window Main Switch/With Front Power Window Anti-Pinch System
TERMINAL AND REFERENCE VALUE FOR BCM / WITH FRONT POWER WINDOW ANTI-PINCH SYSTEM
| Terminal | Wire color | Item | Condition | Voltage (V)(Approx.) |
|---|---|---|---|---|
| 17 | B | Ground | - | 0 |
| 19 | W | Battery power supply | - | Battery voltage |
