Data Monitor Mode Reference Values

For Intake Valve Timing (IVT) control system data monitor mode specification data, see Fig 1.

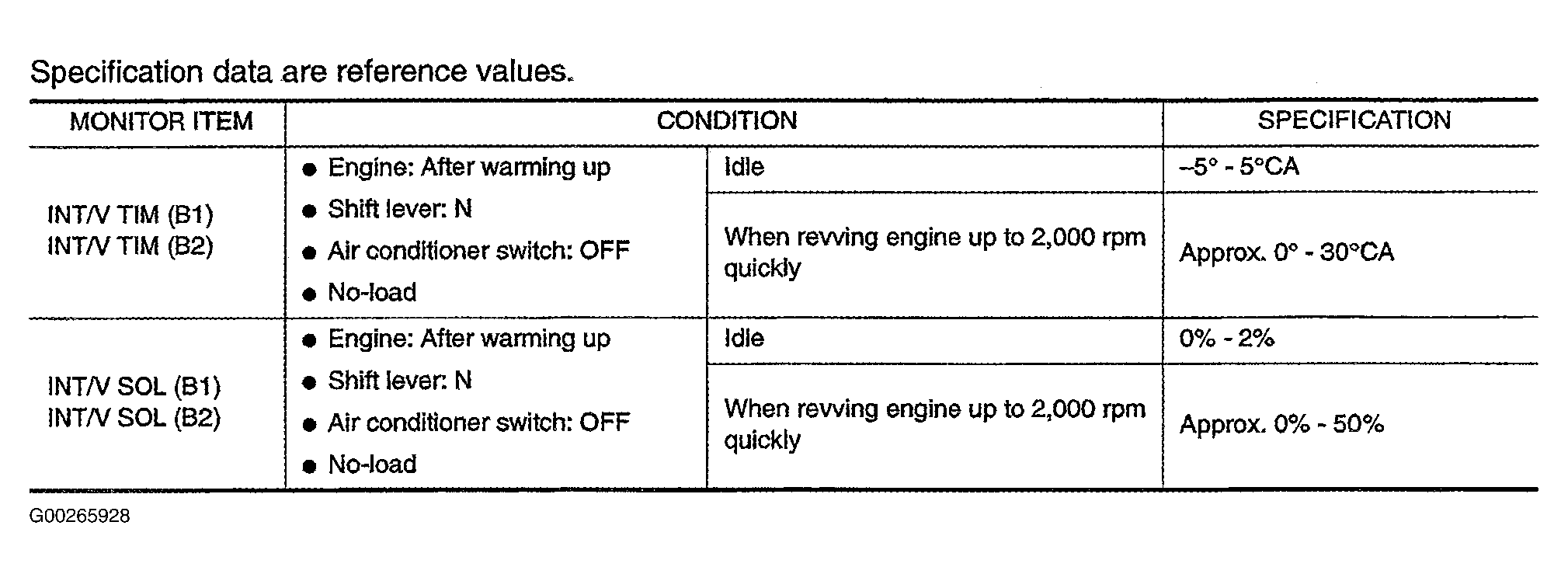

Fig 1: IVT Control System Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
