Component Inspection

For EVAP control system pressure sensor testing, see Fig 1.

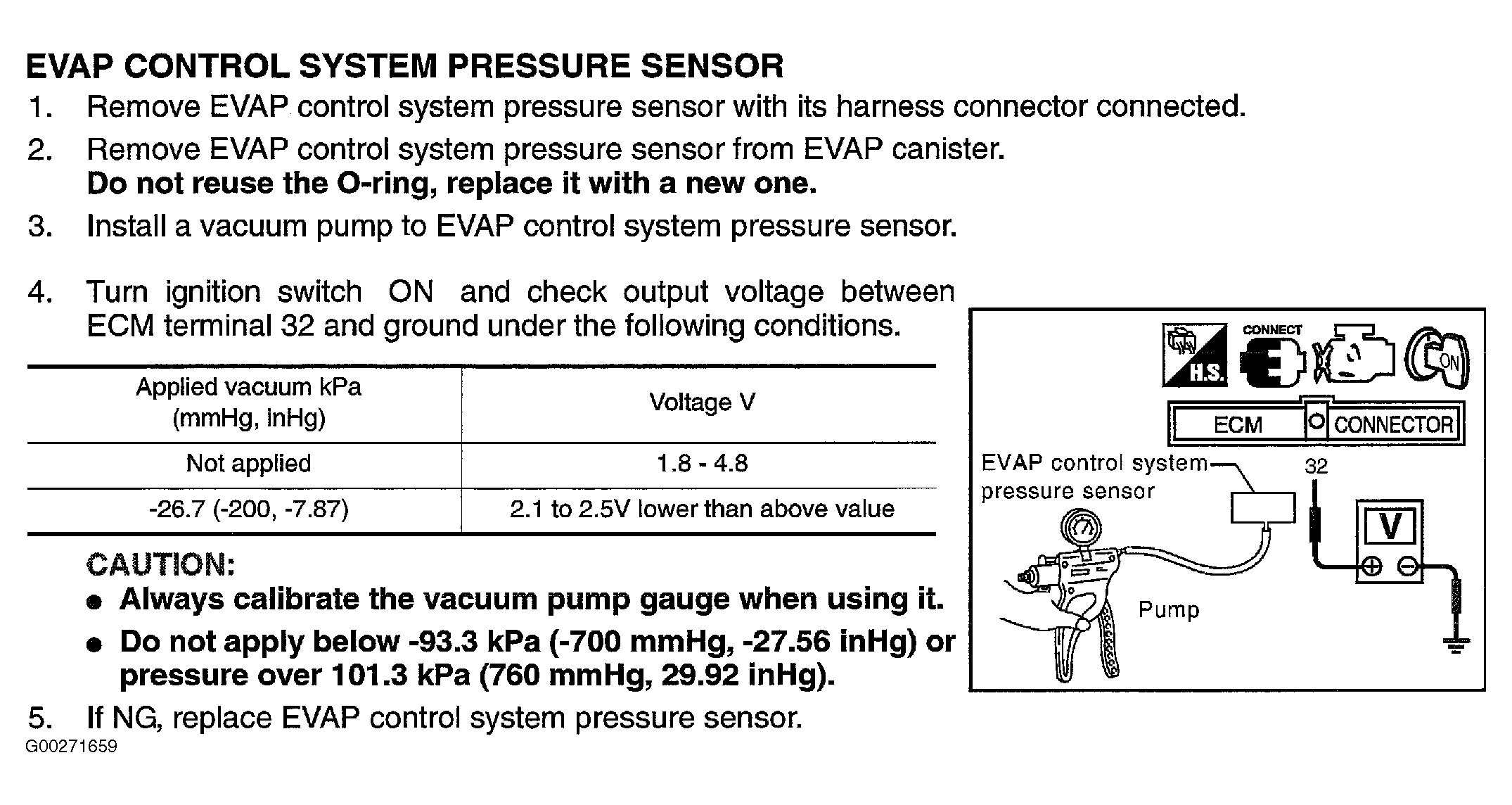

Fig 1: Testing EVAP Control System Pressure Sensor
G00271659Courtesy of NISSAN MOTOR CO., U.S.A.
