Component Inspection

For throttle control motor testing , see Fig 1.

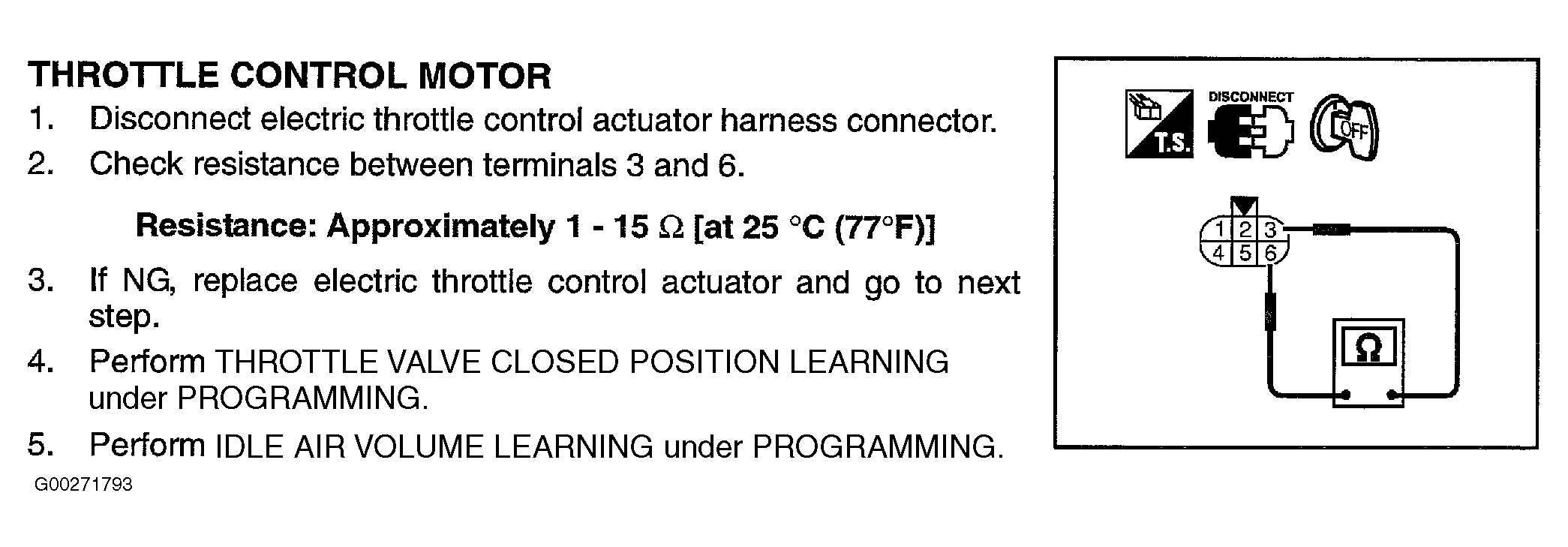

Fig 1: Testing Throttle Control Motor
G00271793Courtesy of NISSAN MOTOR CO., U.S.A.
