DTC P2138: Accelerator Pedal Position Sensor Circuit Range/Performance Problem
>>
Component Inspection
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Inspection
For APP sensor testing, see
Fig 1
.

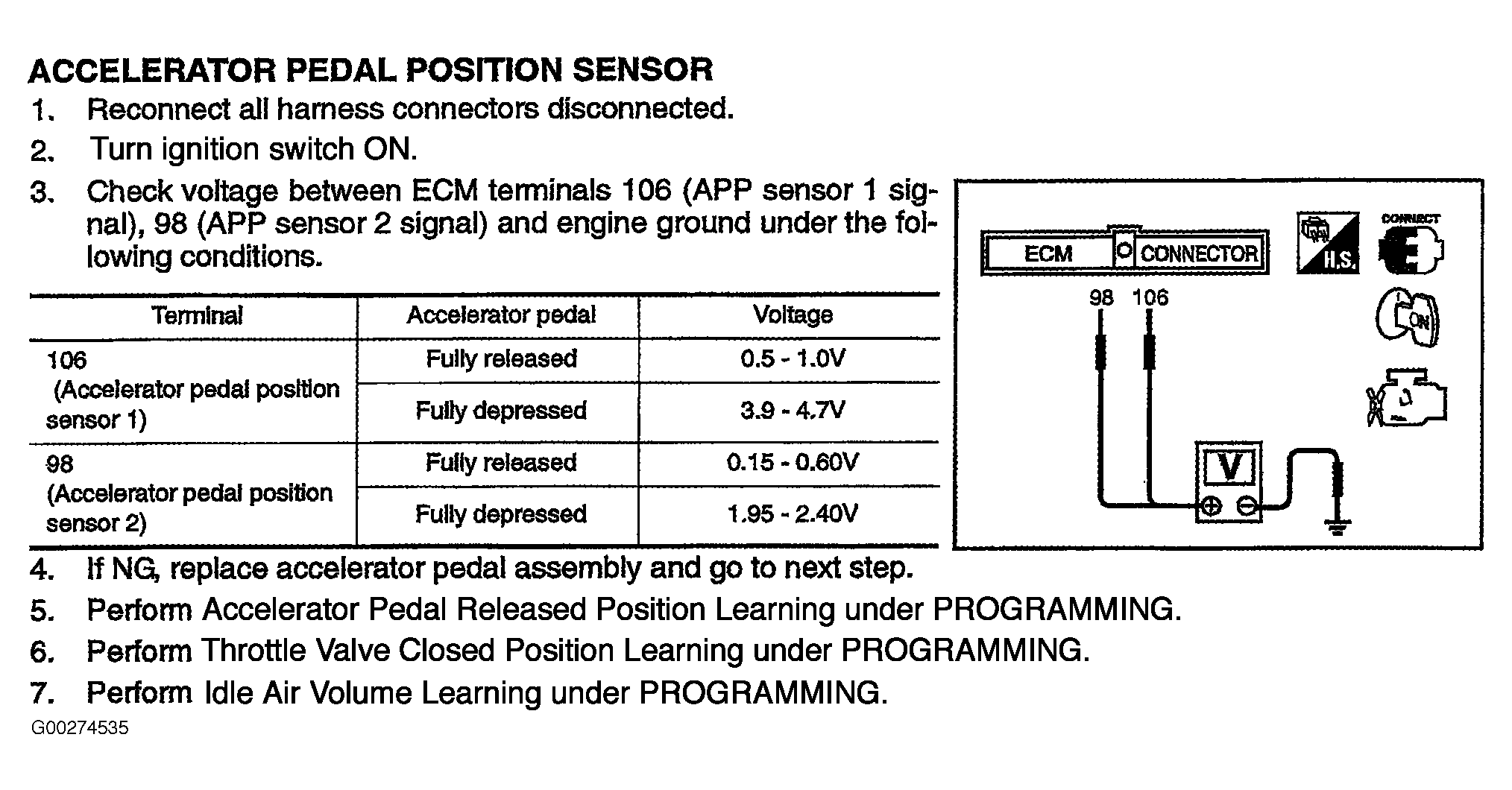

Fig 1: Testing APP Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
