Door Mirror Remote Control Switch (Mirror Switch) Circuit Check
- CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL
With CONSULT-II

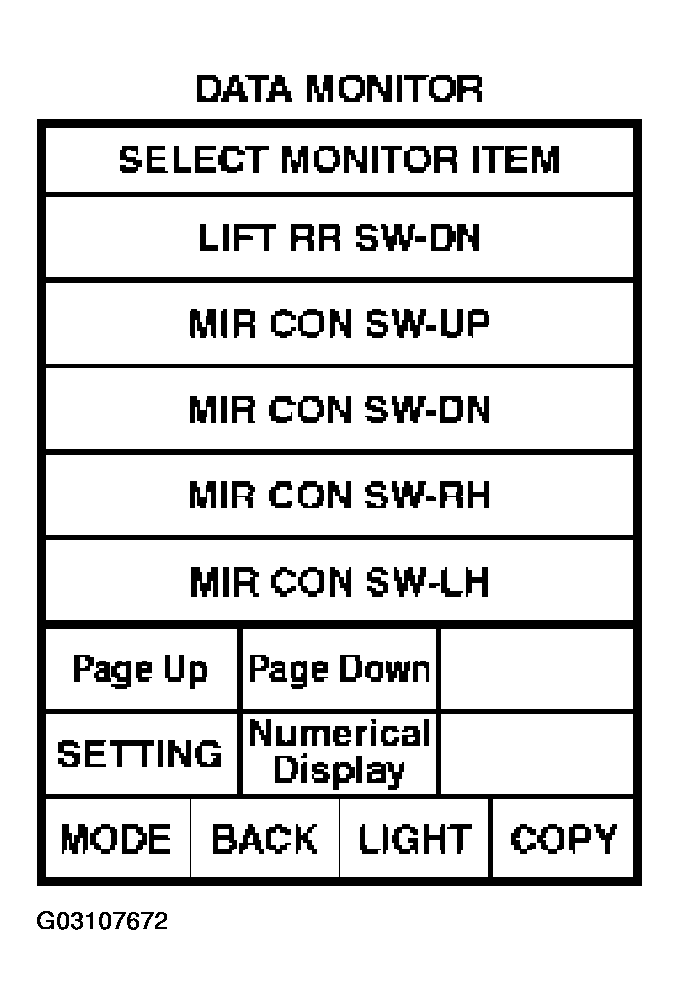

Check the operation on "MIR CON SW-UP/DN" and "MIR CON SW-RH/LH" in the DATA MONITOR.
CHECKING MIRROR SENSOR With CONSULT-IIMonitor item [OPERATION or UNIT] Contents MIR CON SW-UP "ON/OFF" ON/OFF status judged from the door mirror remote control switch (UP) signal is displayed. MIR CON SW-DN "ON/OFF" ON/OFF status judged from the door mirror remote control switch (DOWN) signal is displayed. MIR CON SW-RH "ON/OFF" ON/OFF status judged from the door mirror remote control switch (RIGHT) signal is displayed. MIR CON SW-LH "ON/OFF" ON/OFF status judged from the door mirror remote control switch (LEFT) signal s displayed. Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
- Turn ignition switch to ACC position.

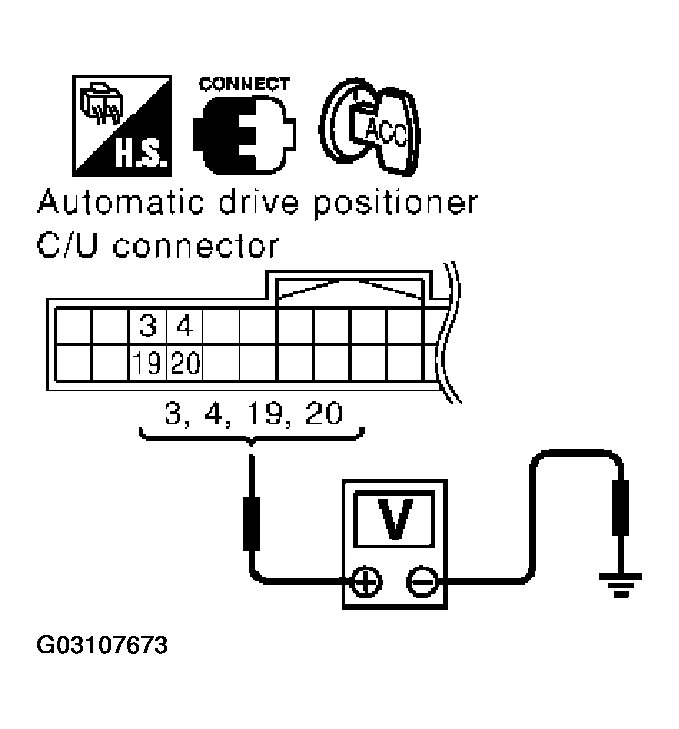

- Check voltage between automatic drive positioner control unit connector and ground.TERMINAL VOLTAGE
Connector Terminals (Wire color) Condition Voltage (V) (Approx.) (+) (-) M19 3(GY) Ground Mirror switch UP operation 0 Mirror switch neutral position 5 4 (Y) Mirror switch LEFT operation 0 Mirror switch neutral position 5 19 (GY/L) Mirror switch DOWN operation 0 Mirror switch neutral position 5 20 (PU) Mirror switch RIGHT operation 0 Mirror switch neutral position 5
OK or NG
- OK: Door mirror remote control switch (mirror switch) circuit is OK.
- NG: GO TO 2.
- CHECK HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect automatic drive positioner control unit and door mirror remote control switch connector.

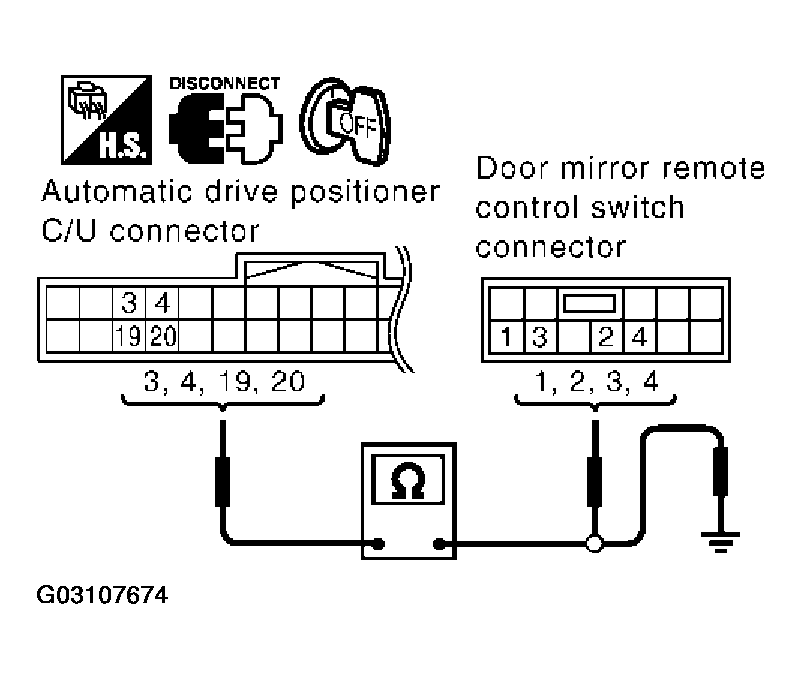

- Check continuity between automatic drive positioner control unit connector M49 terminal 3 (GY), 4 (Y), 19 (GY/L), 20 (PU) and door mirror remote control switch connector M18 terminal 1 (PU), 2 (Y), 3 (GY), 4 (GY/L).
3 (GY) - 3 (GY): Continuity should exist.
4(Y)-2(Y): Continuity should exist.
19 (GY/L) - 4 (GY/L): Continuity should exist.
20 (PU) - 1 (PU): Continuity should exist.
- Check continuity between automatic drive positioner control unit connector M49 terminal 3 (GY), 4 (Y), 19 (GY/L), 20 (PU) and ground.
3 (GY) - Ground: Continuity should not exist.
4 (Y)- Ground: Continuity should not exist.
19 (GY/L) - Ground: Continuity should not exist.
20 (PU) - Ground: Continuity should not exist.
OK or NG
- OK: GO TO 4.
- NG: Repair or replace harness between automatic drive positioner control unit and door mirror remote control switch.
- CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH)

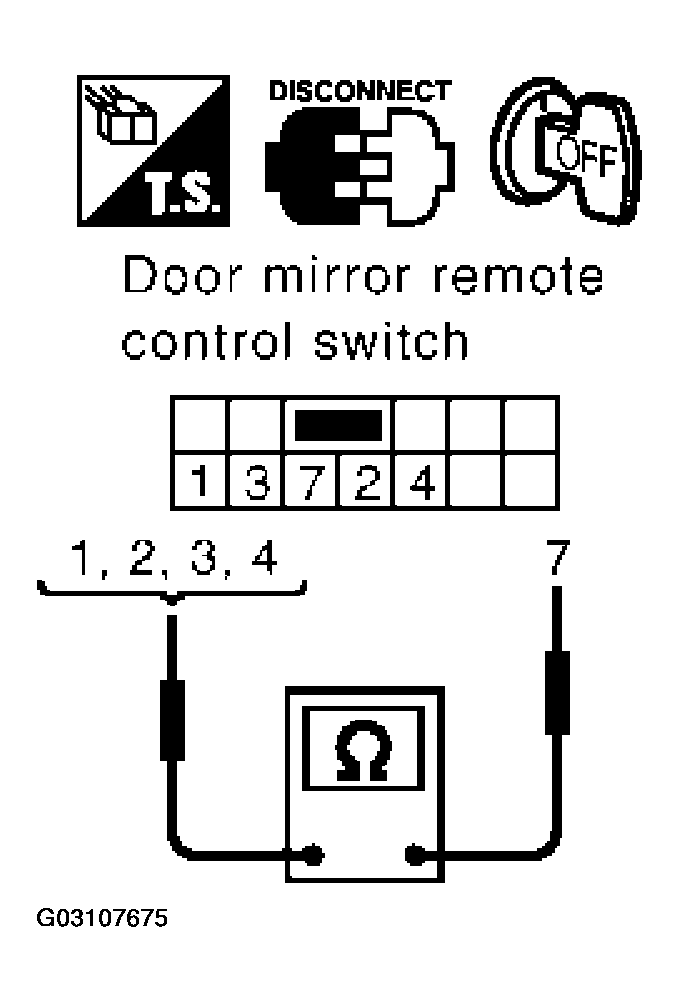

Check continuity between door mirror remote control switch terminal as follows.
TERMINAL CONTINUITYTerminals Switch condition Continuity 1 7 Mirror switch RIGHT operation Yes Mirror switch neutral position No 2 Mirror switch LEFT operation Yes Mirror switch neutral position No 3 Mirror switch UP operation Yes Mirror switch neutral position No 4 Mirror switch DOWN operation Yes Mirror switch neutral position No Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Check the condition of the harness and the connector.
- NG: Replace door mirror remote control switch.
