Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

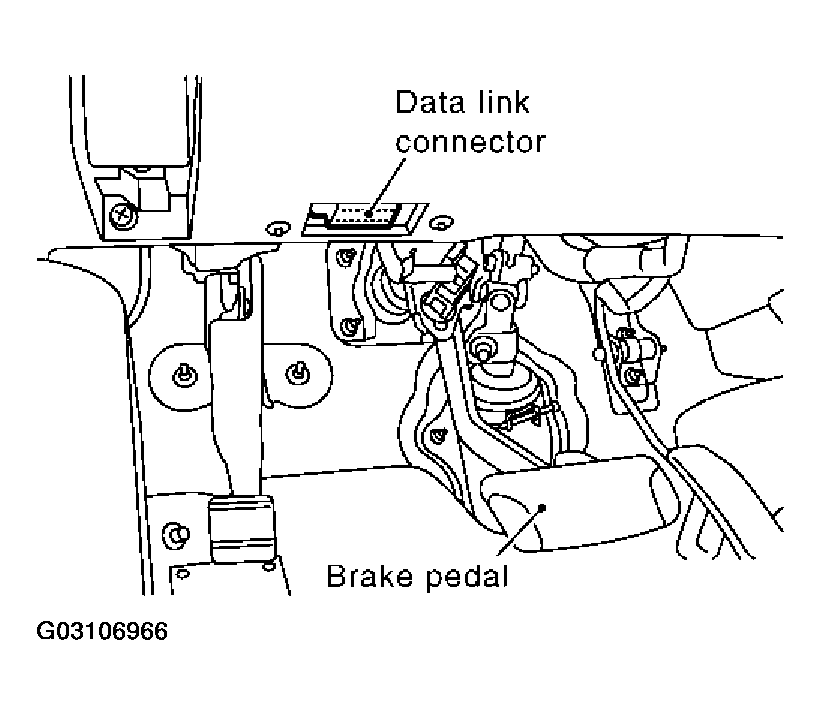

Fig 1: Connecting CONSULT-II And CONSULT-II Converter to the data link connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

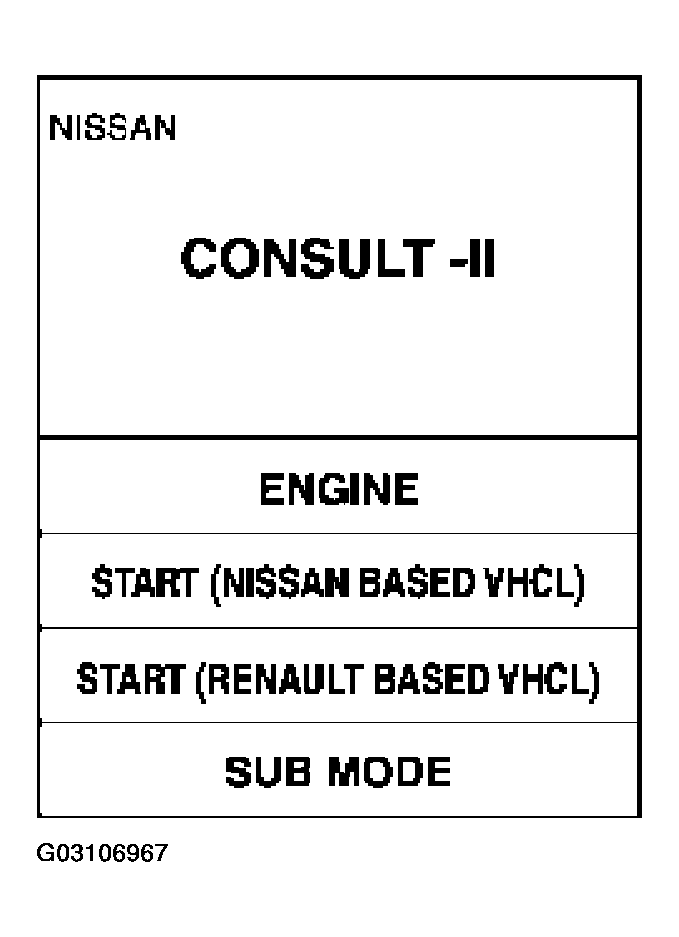

Fig 2: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

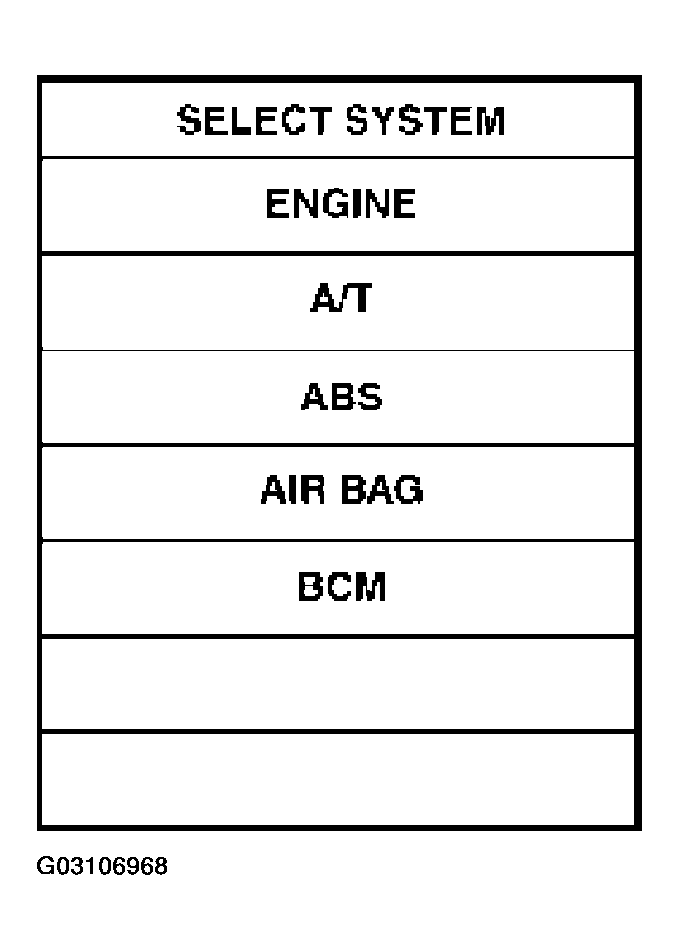

Fig 3: CONSULT-II Display - Touch "BCM"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

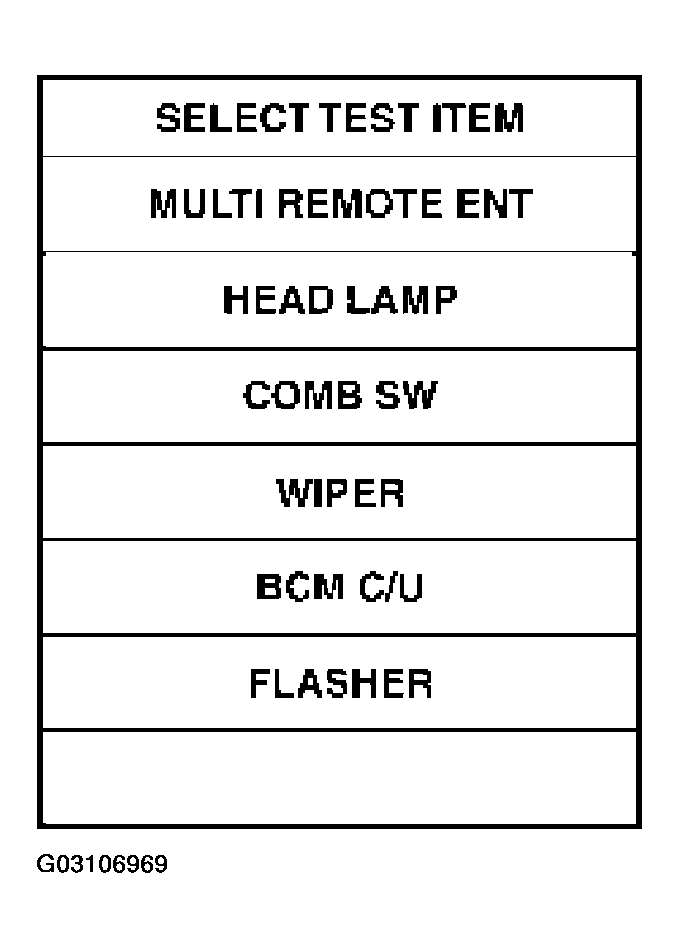

Fig 4: CONSULT-II Display - Touch "MULTI REMOTE ENT"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

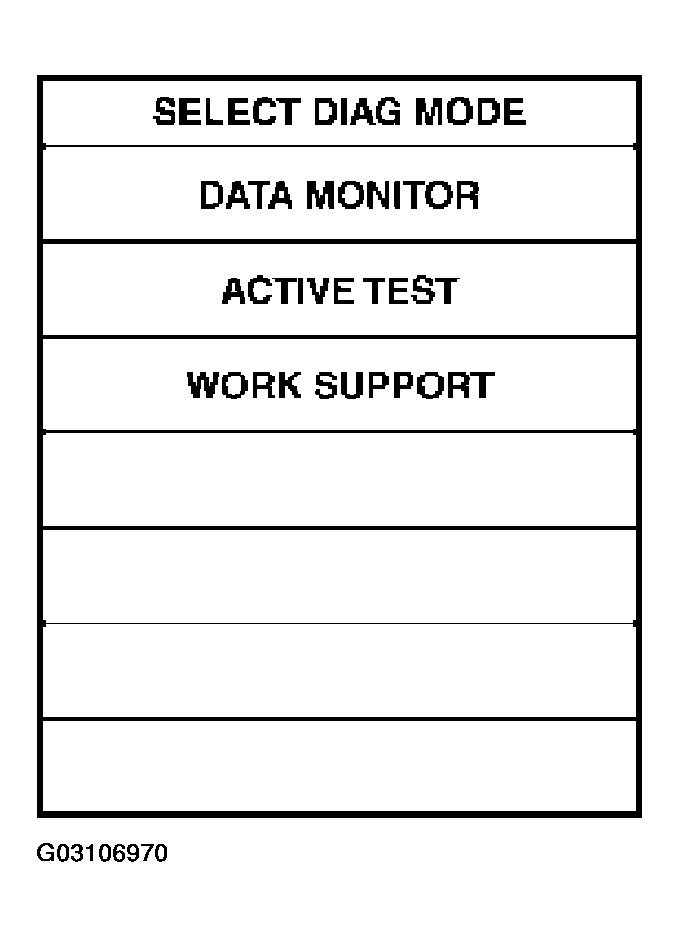

Fig 5: CONSULT-II Display - Select Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
