Function Of Control Valve

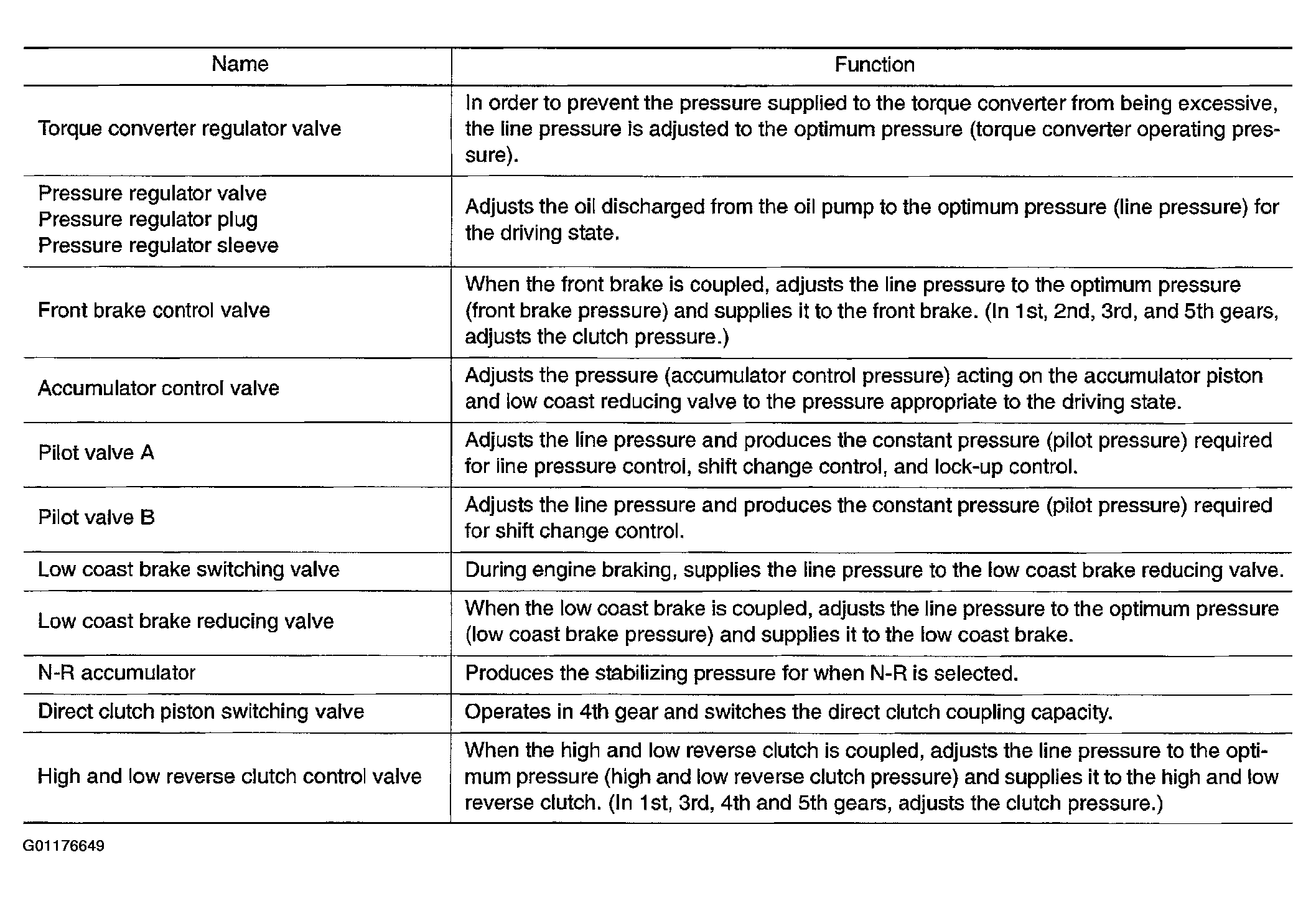

Fig 1: Identifying Control Valve Function (1 Of 2)
G01176649Courtesy of NISSAN MOTOR CO., U.S.A.

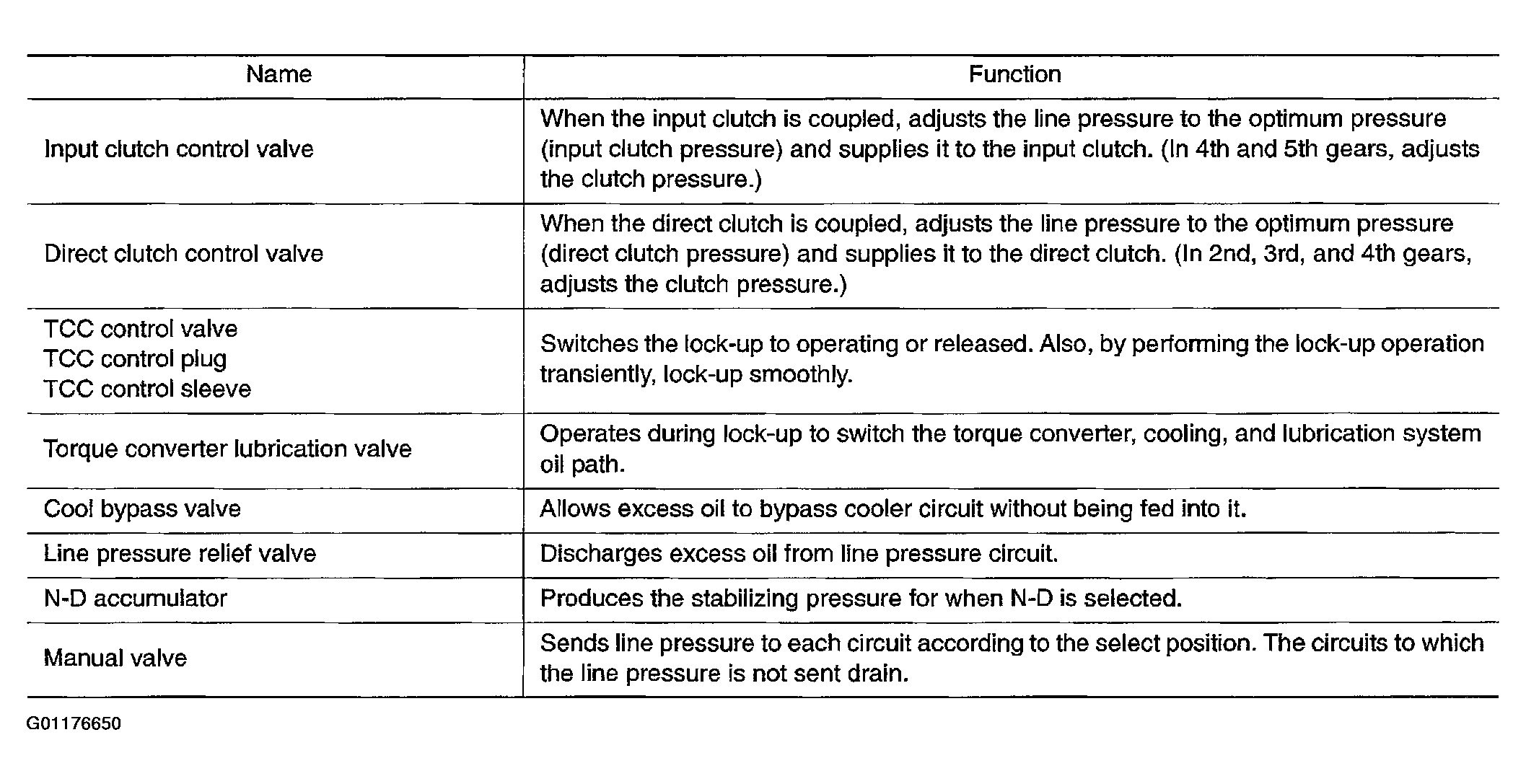

Fig 2: Identifying Control Valve Function (2 Of 2)
G01176650Courtesy of NISSAN MOTOR CO., U.S.A.
