Reverse Signal Check for Display Control Unit

1. Turn ignition switch ON.
2. Selector lever into R-position.

Does "R" in the shift position indicator come on?

1. YES: GO TO 2.
2. NO: Check back-up lamp system. Refer to BACK-UP LAMP .

1. With the selector lever in R-position, check voltage between display control unit and ground.
   VOLTAGE BETWEEN DISPLAY CONTROL UNIT AND GROUND VOLTAGE



   Terminals			Condition		Voltage
   (+)		(-)
   Connector	Terminal (Wire color)
   M75	6 (OR)	Ground	Select lever	R-position	Approx. 12V
   				Except R-position	Approx. 0V

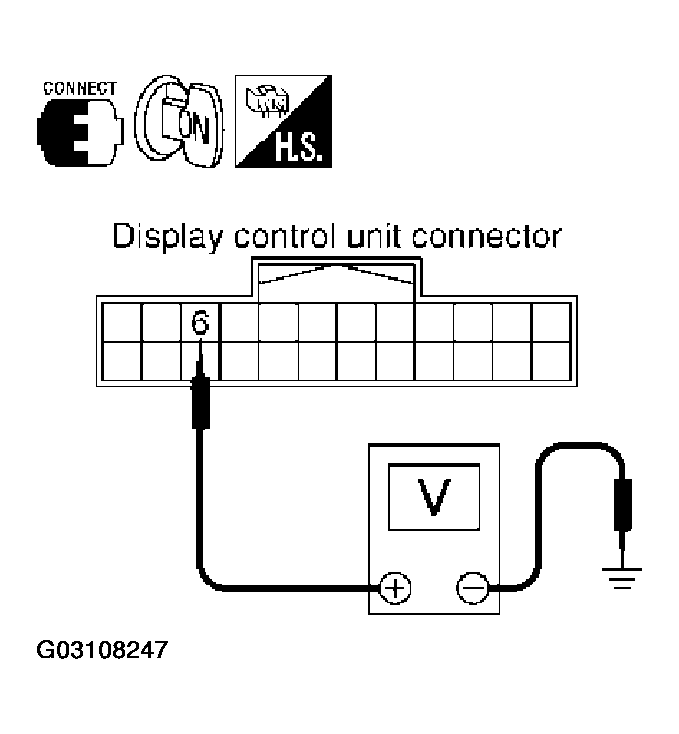

   Fig 1: Checking Voltage Between Display Control Unit And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: Repair harness or connector.
