Removal and Installation: Notes

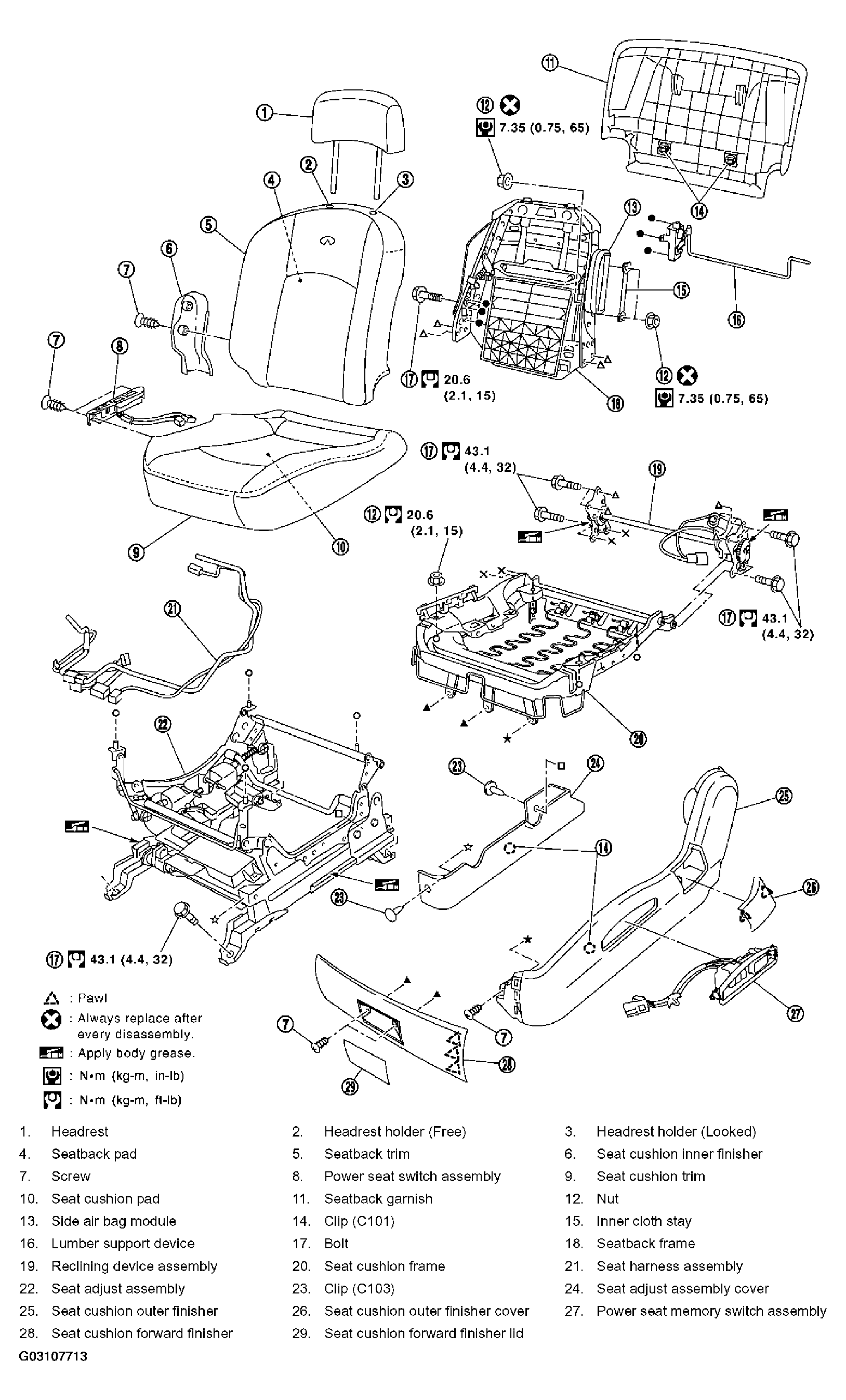

Fig 1: Exploded View Of Front Seat Components
Courtesy of NISSAN MOTOR CO., U.S.A.
