Repair and Diagnosis
>>
Brakes
>>
Brakes Control Systems
>>
Brake Control System
>>
System Description
>>
Hydraulic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Hydraulic Circuit Diagram

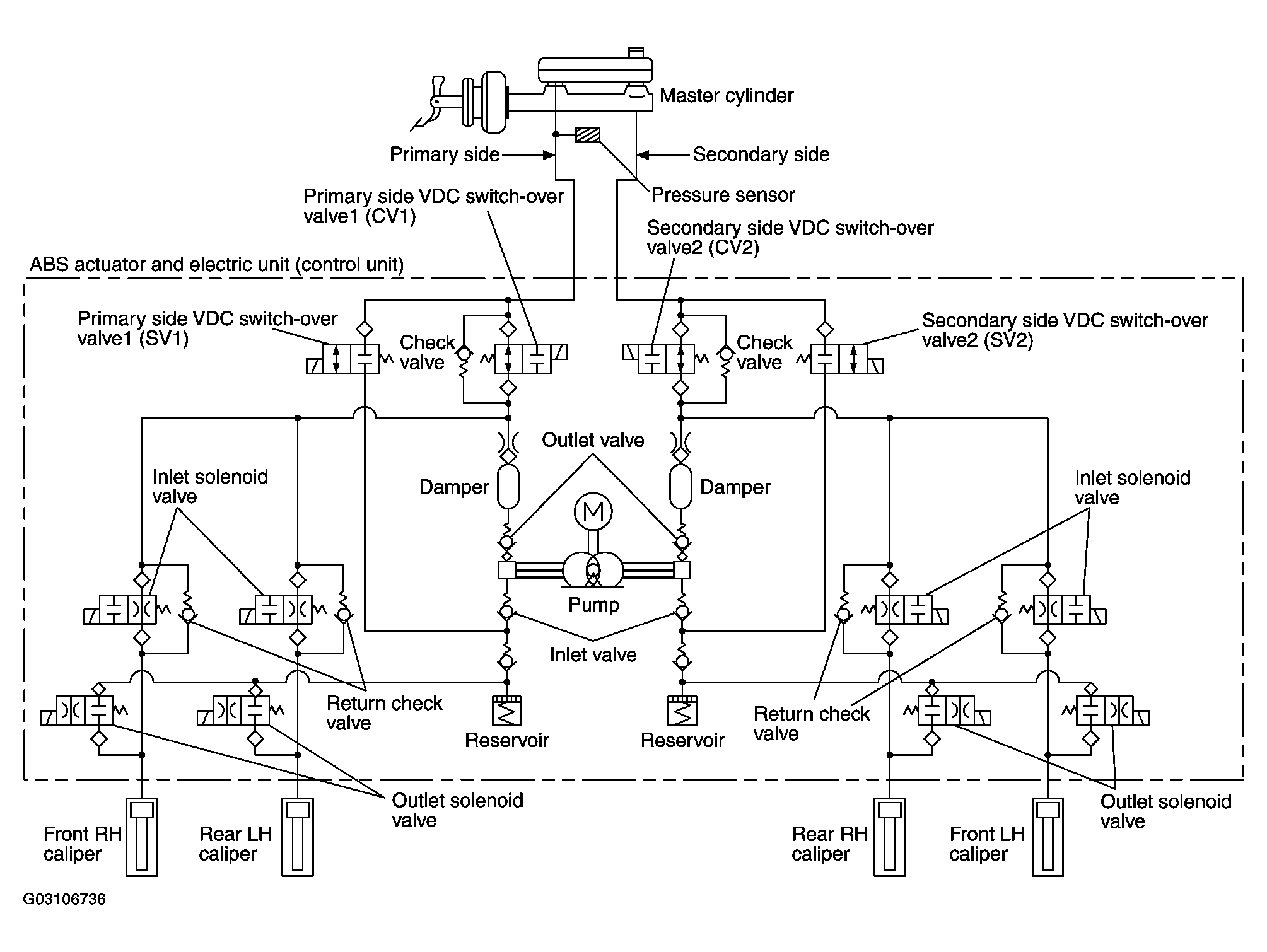

Fig 1: Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
