Removal & Installation: Notes

CAUTION:
  • Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
  • Perform the operation with the exhaust system fully cooled down because the system will be hot just after the engine stops.
  • Be careful not to cut your hand on the heat insulator edge.

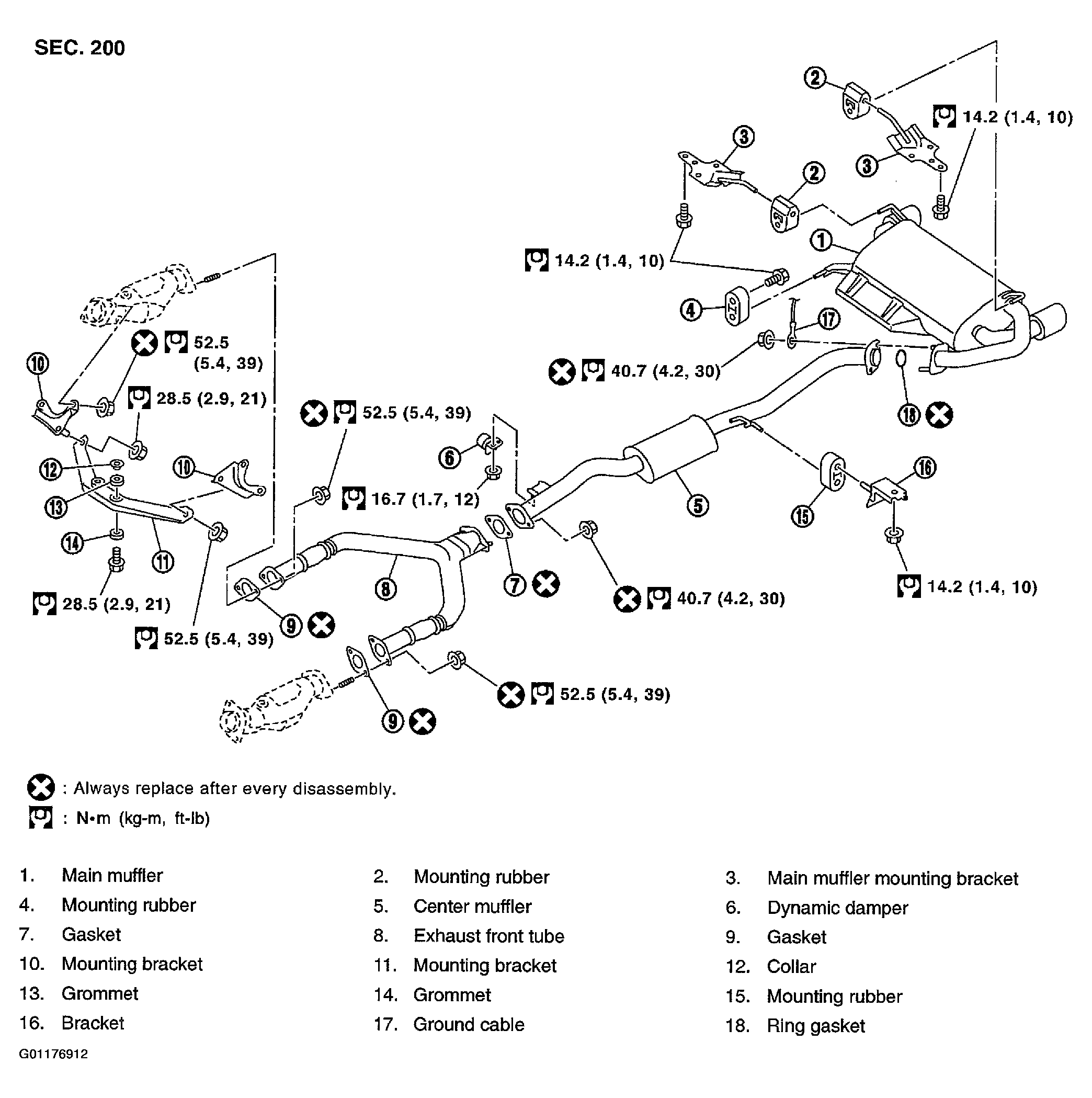

Fig 1: Exploded View Of Exhaust System
G01176912Courtesy of NISSAN MOTOR CO., U.S.A.
