Diagnostic Procedure
For diagnostic procedure, see
Fig 1
-
Fig 3
.

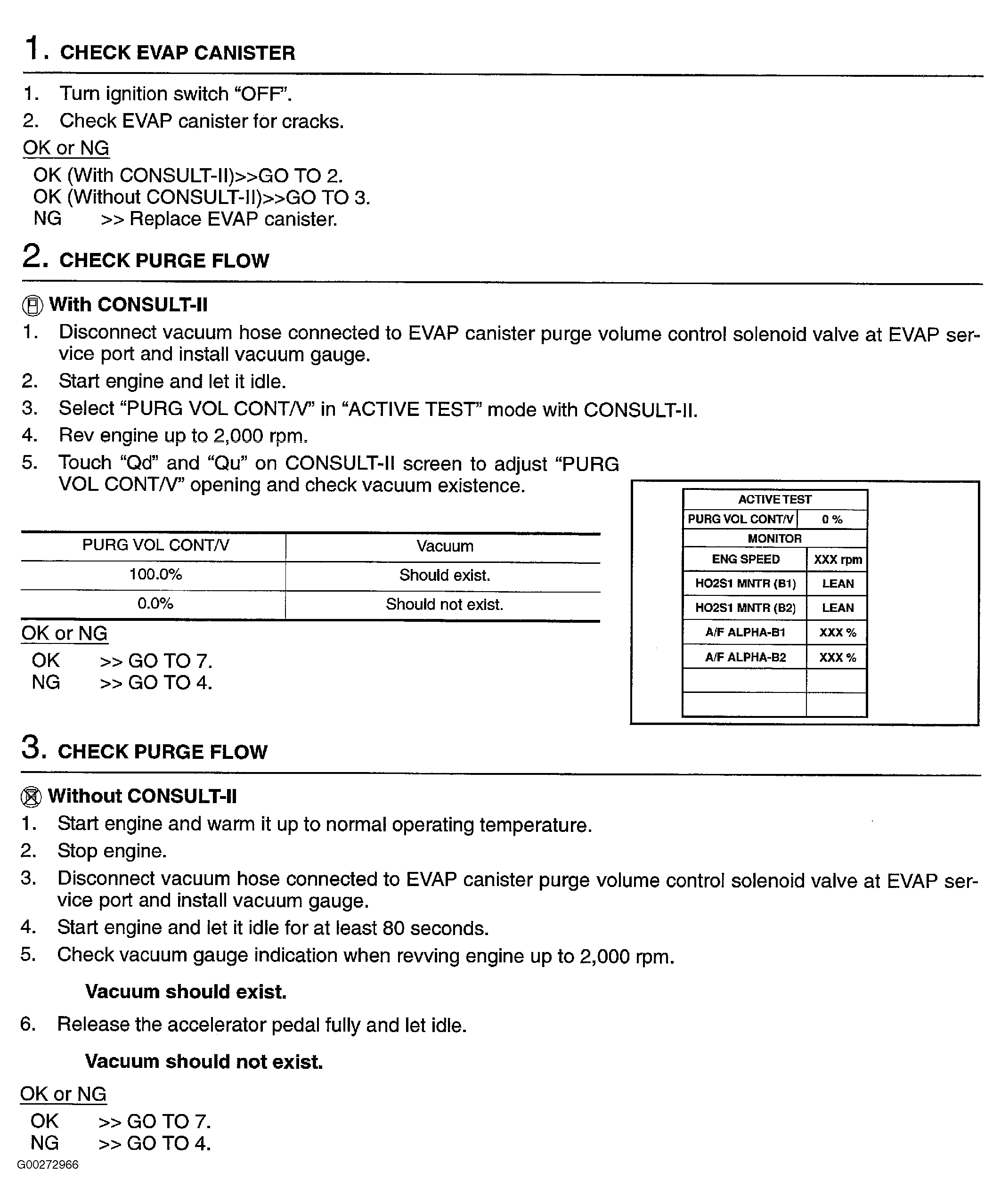

Fig 1: Diagnostic Procedure For EVAP Control System (Step 1-3)
Courtesy of NISSAN MOTOR CO., U.S.A.

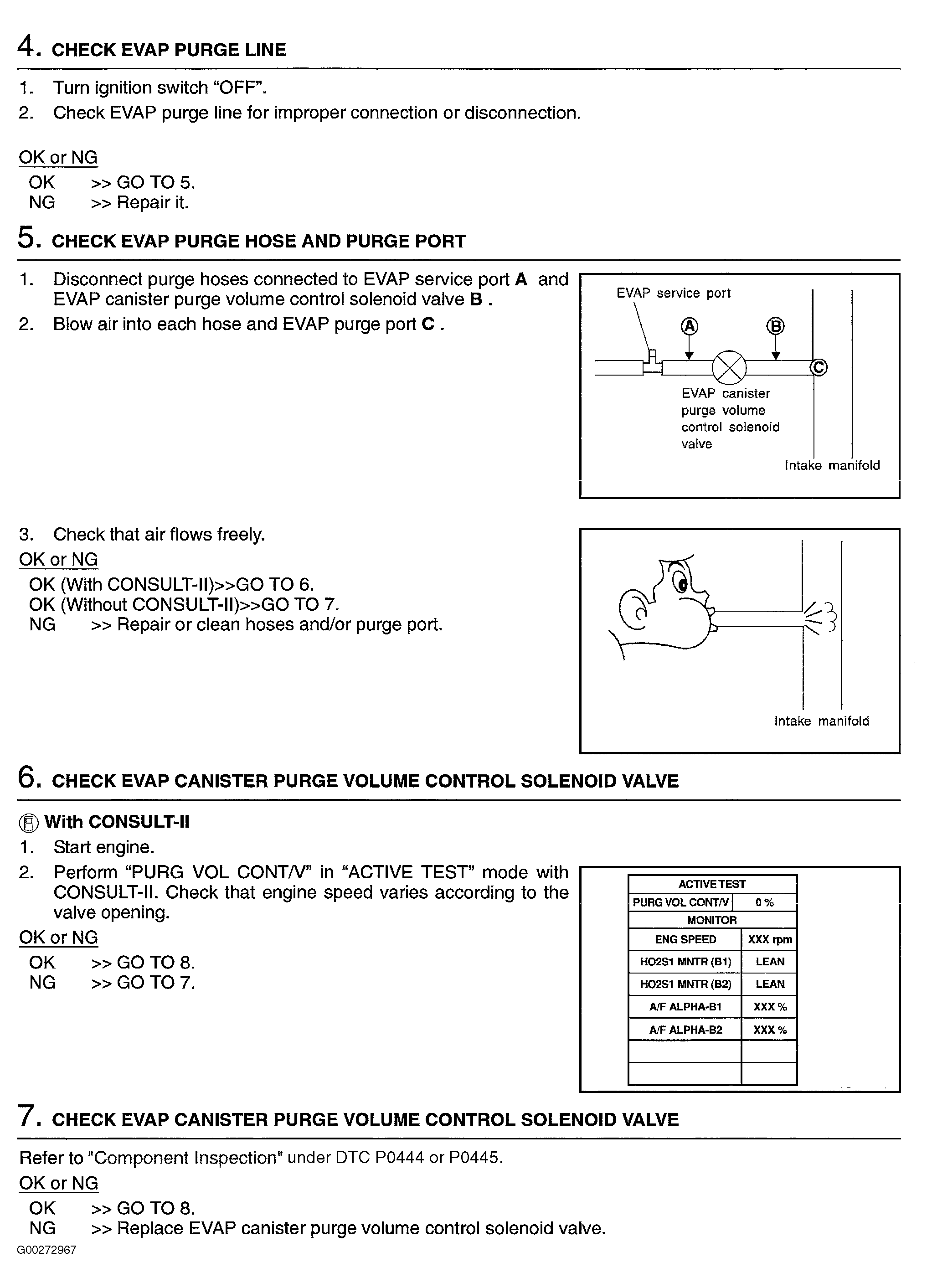

Fig 2: Diagnostic Procedure For EVAP Control System (Step 4-7)
Courtesy of NISSAN MOTOR CO., U.S.A.

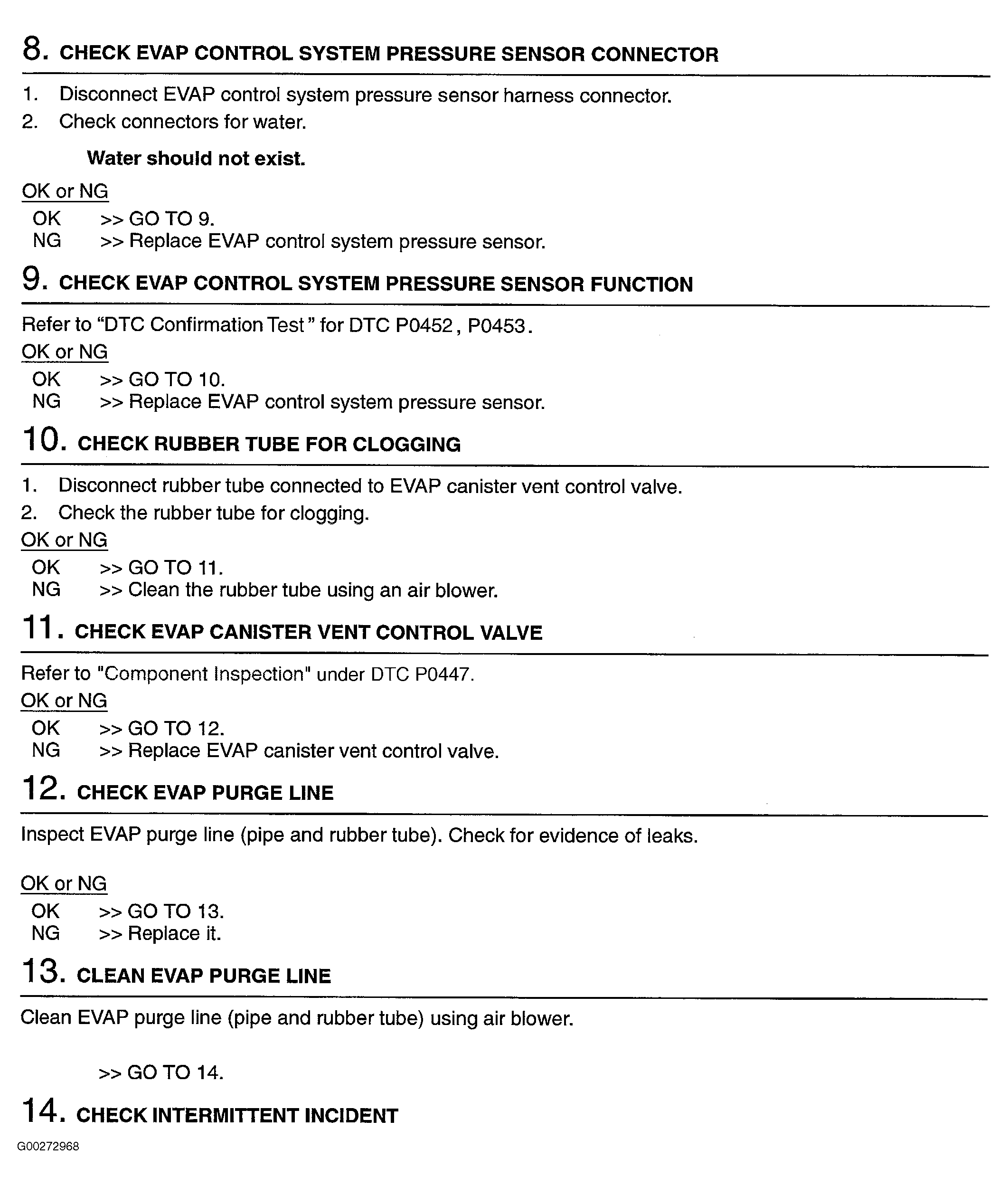

Fig 3: Diagnostic Procedure For EVAP Control System (Step 8-14)
Courtesy of NISSAN MOTOR CO., U.S.A.
