DTC P0451: EVAP Control System Pressure Sensor Performance
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure
For diagnostic procedure, see
Fig 1
.

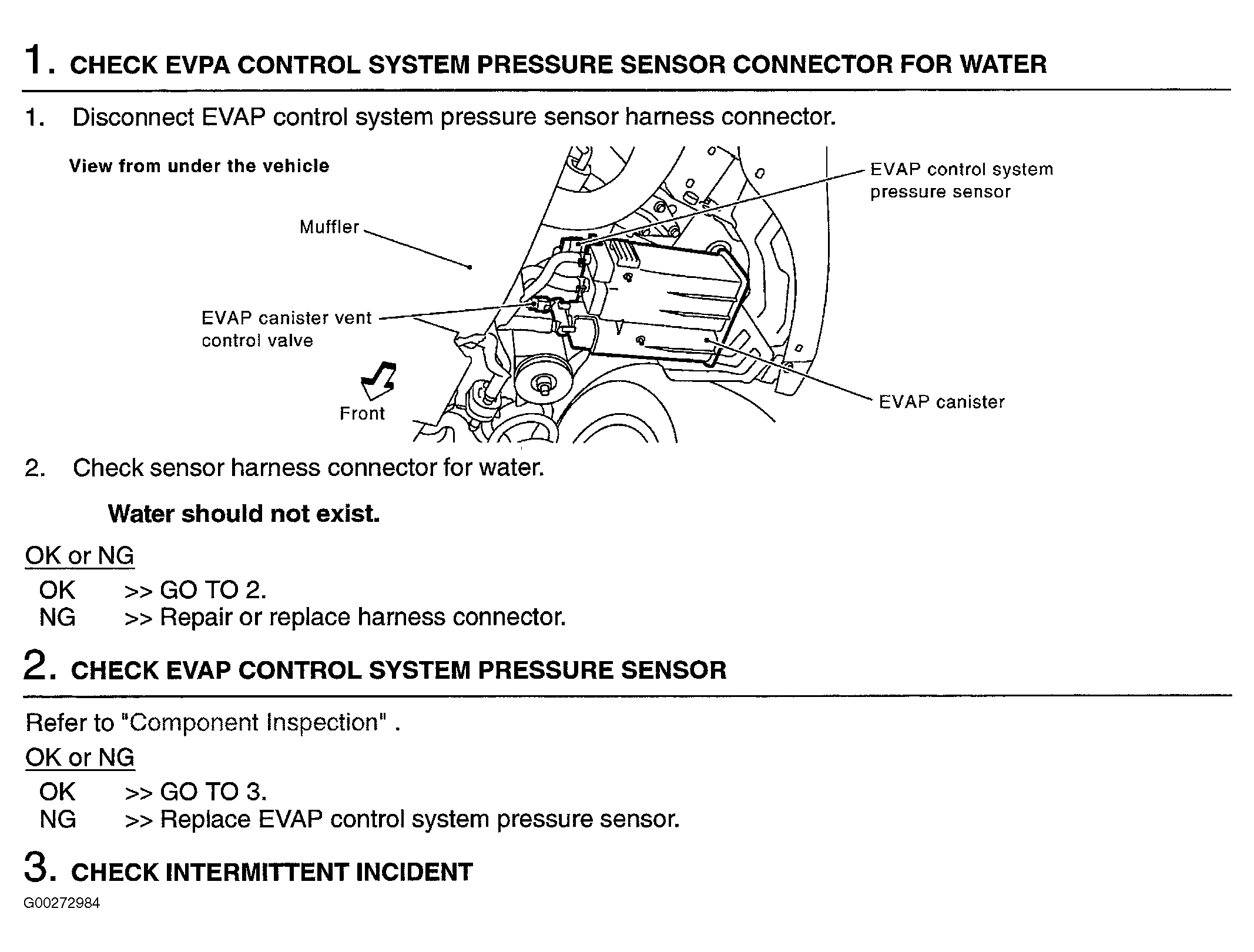

Fig 1: Diagnostic Procedure For EVAP Control System Pressure Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
