Diagnostic Procedure

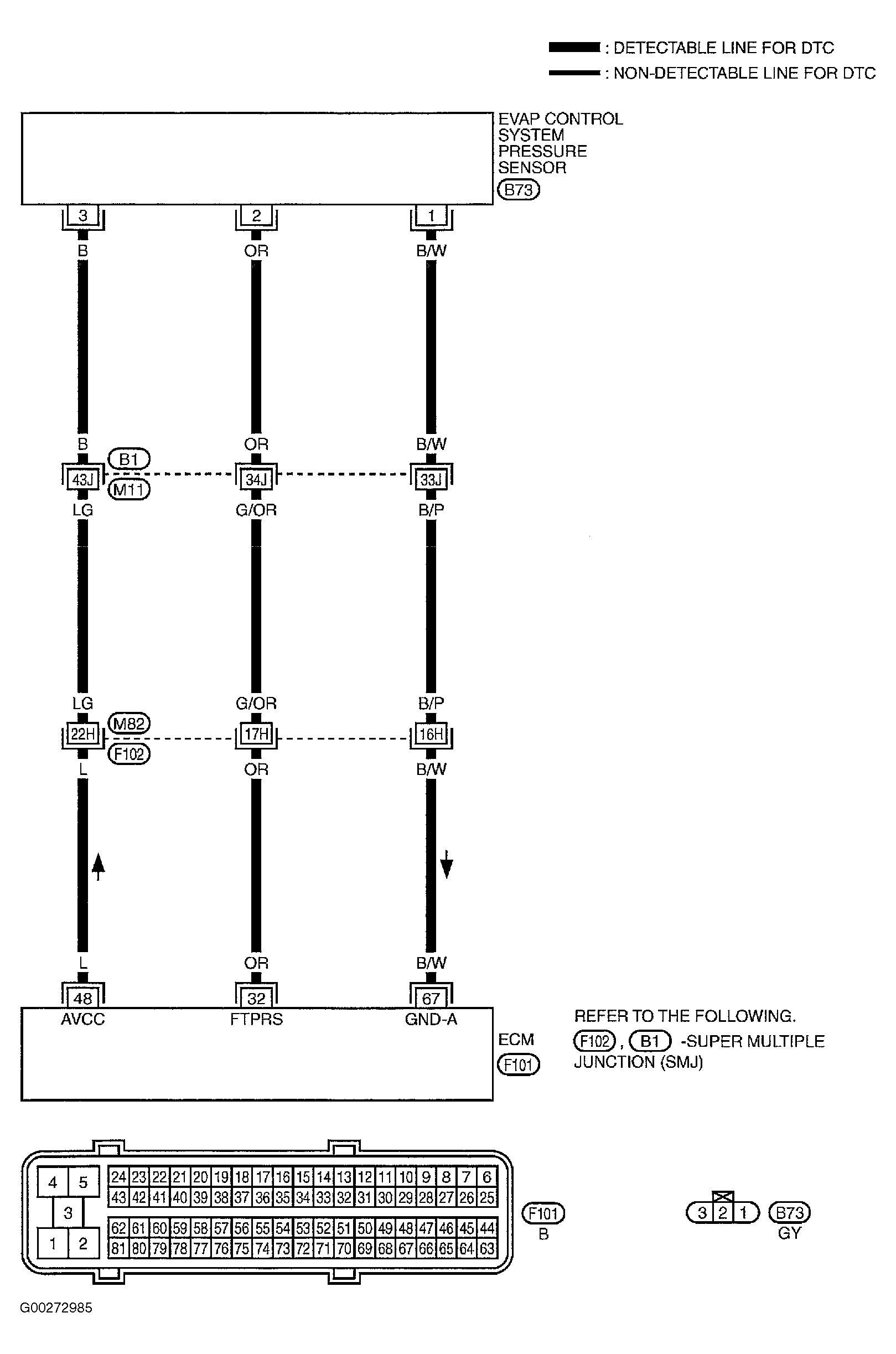

For wiring diagram, see Figure . For diagnostic procedure, see Fig 1 -Fig 4 .

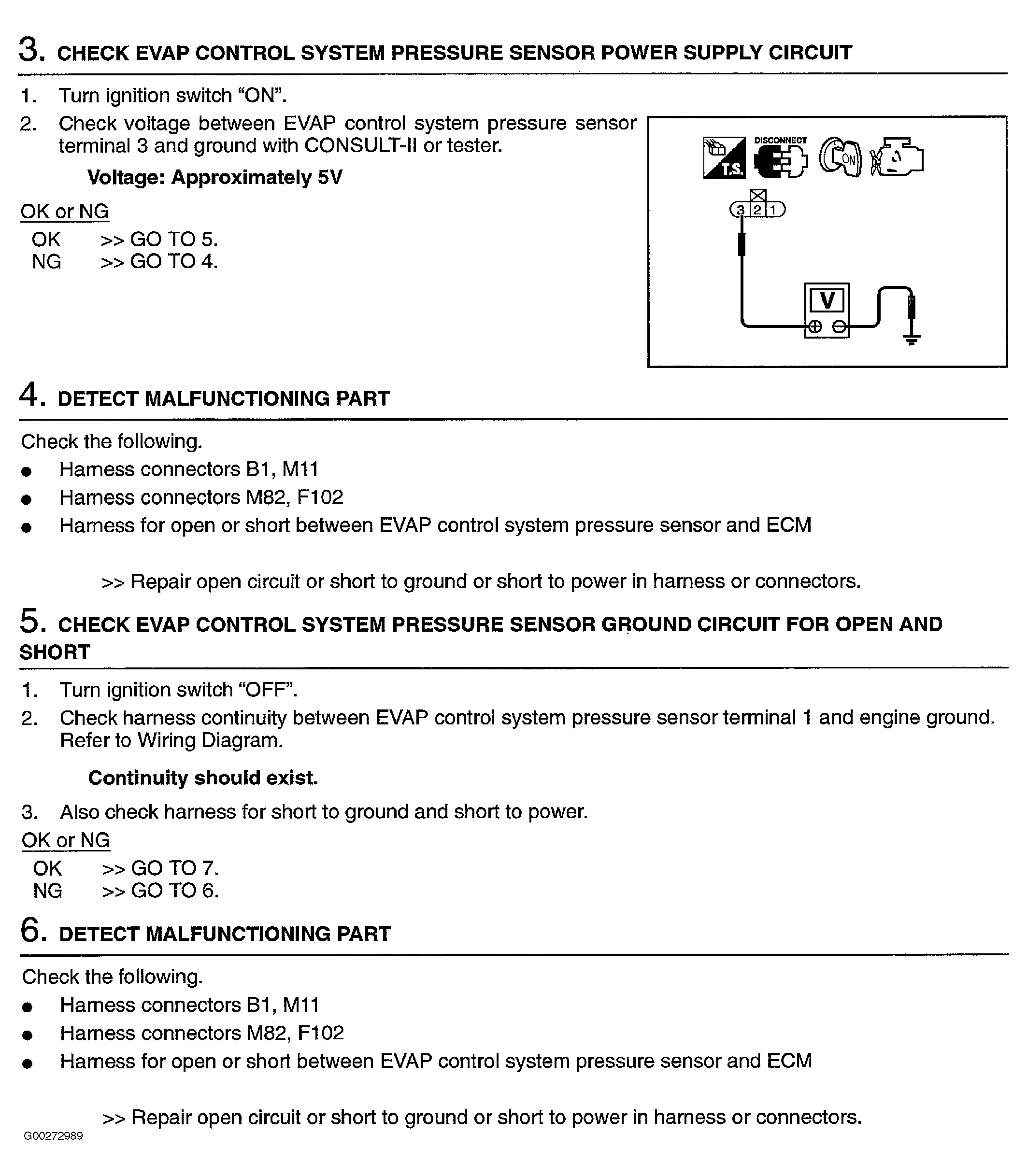

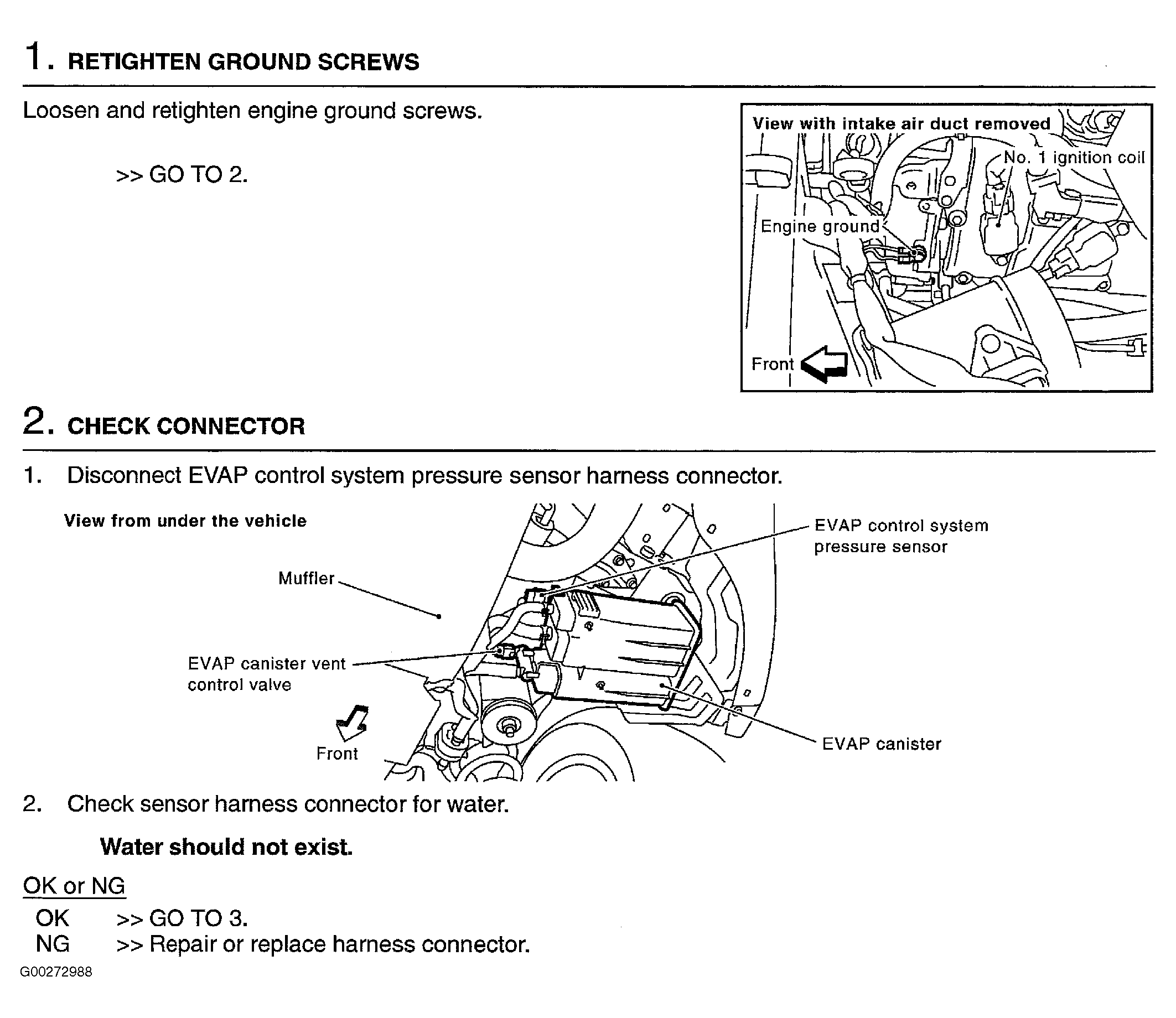

Fig 1: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 3-6)

Courtesy of NISSAN MOTOR CO., U.S.A.

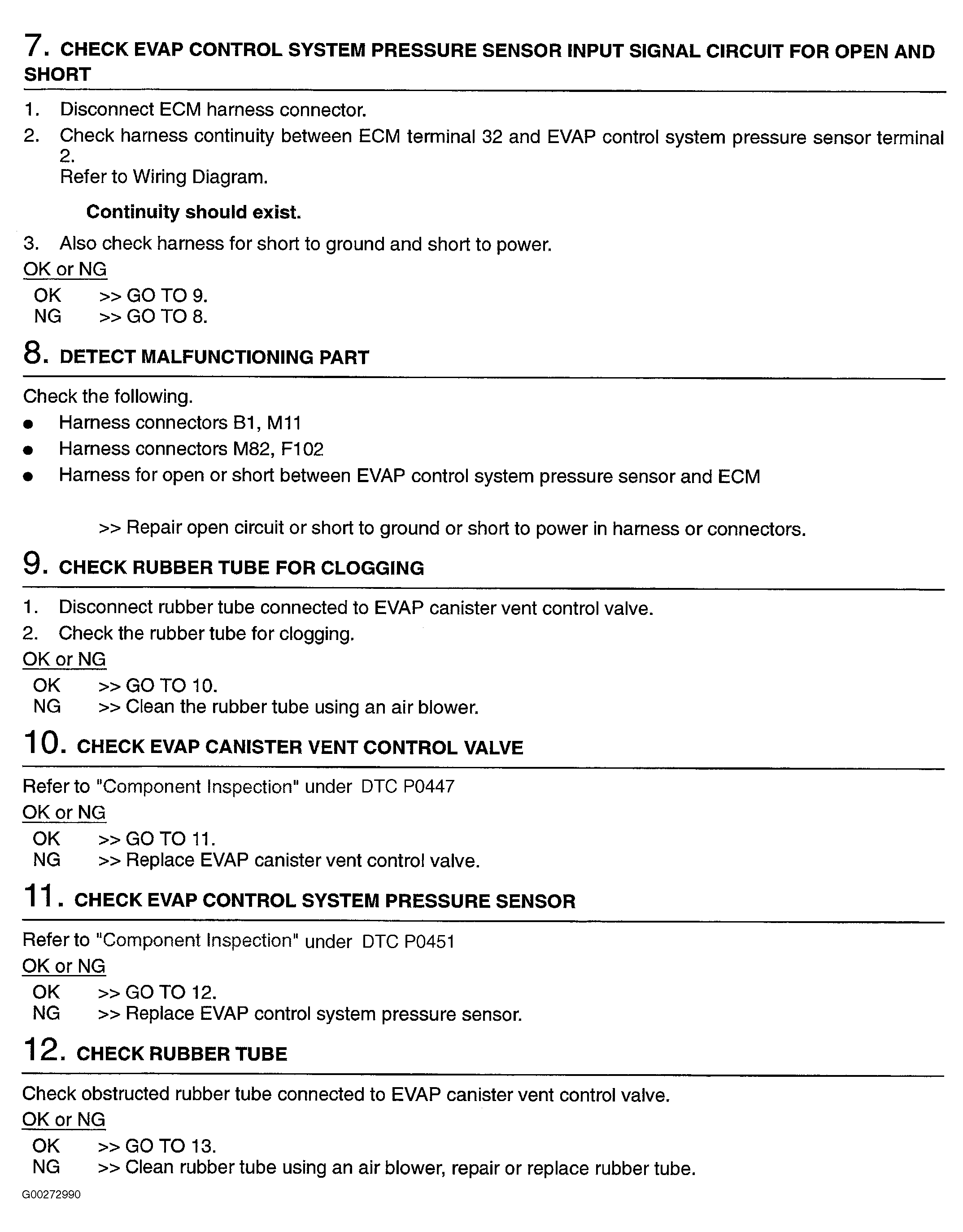

Fig 3: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 7-12)

Courtesy of NISSAN MOTOR CO., U.S.A.

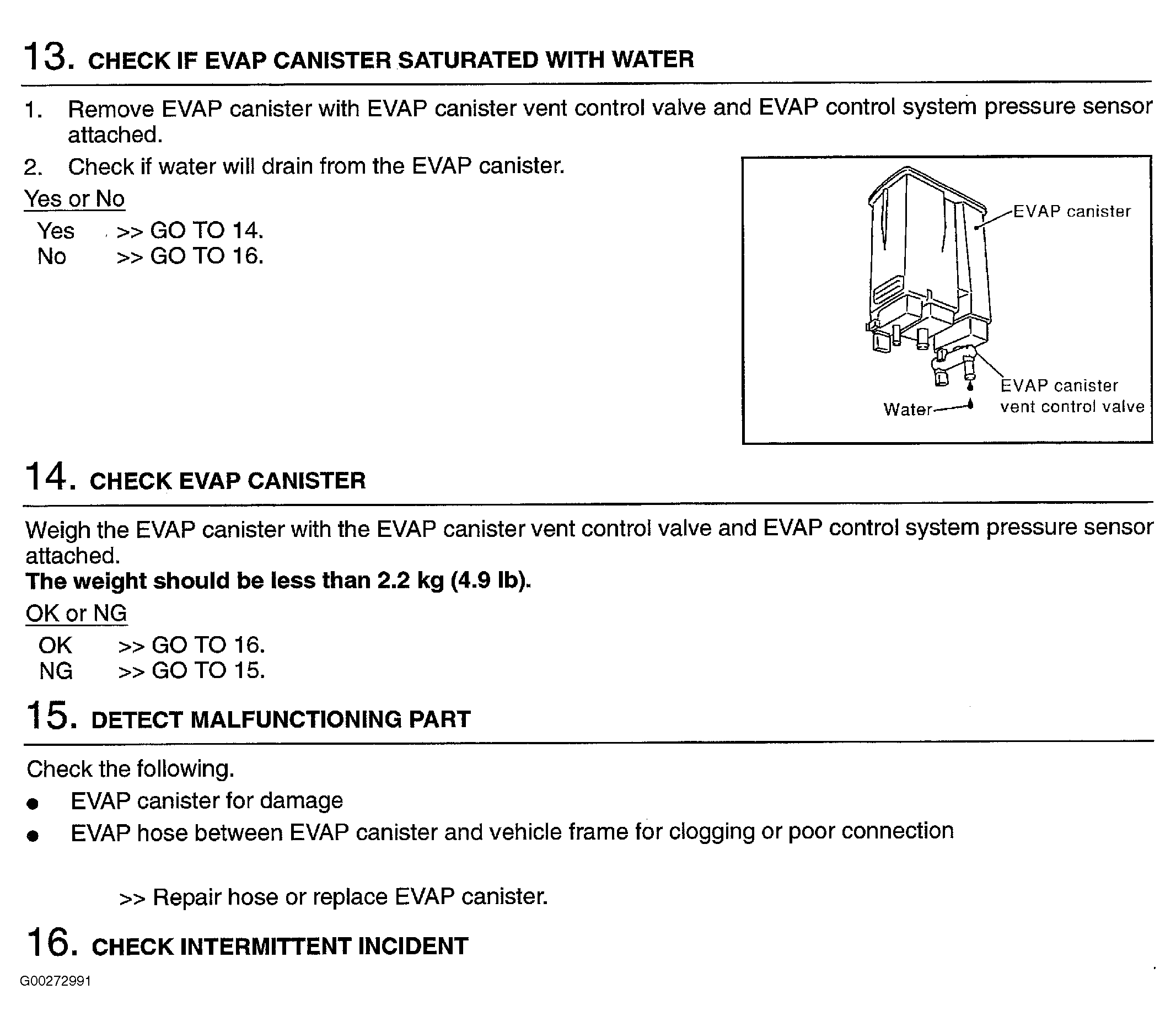

Fig 4: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 13-16)

Courtesy of NISSAN MOTOR CO., U.S.A.
