Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 -Fig 4 .

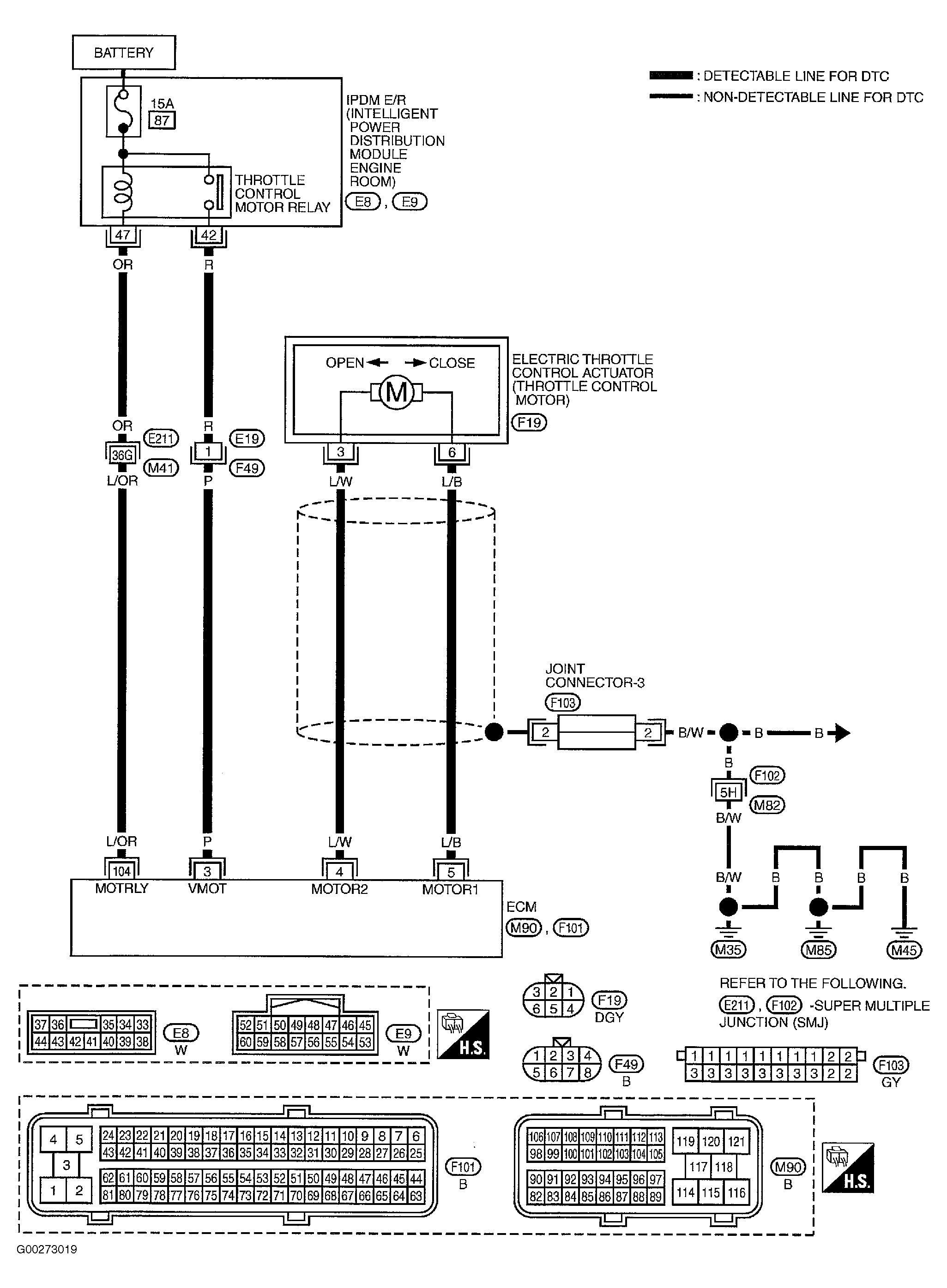

Fig 1: Electric Throttle Control Actuator Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

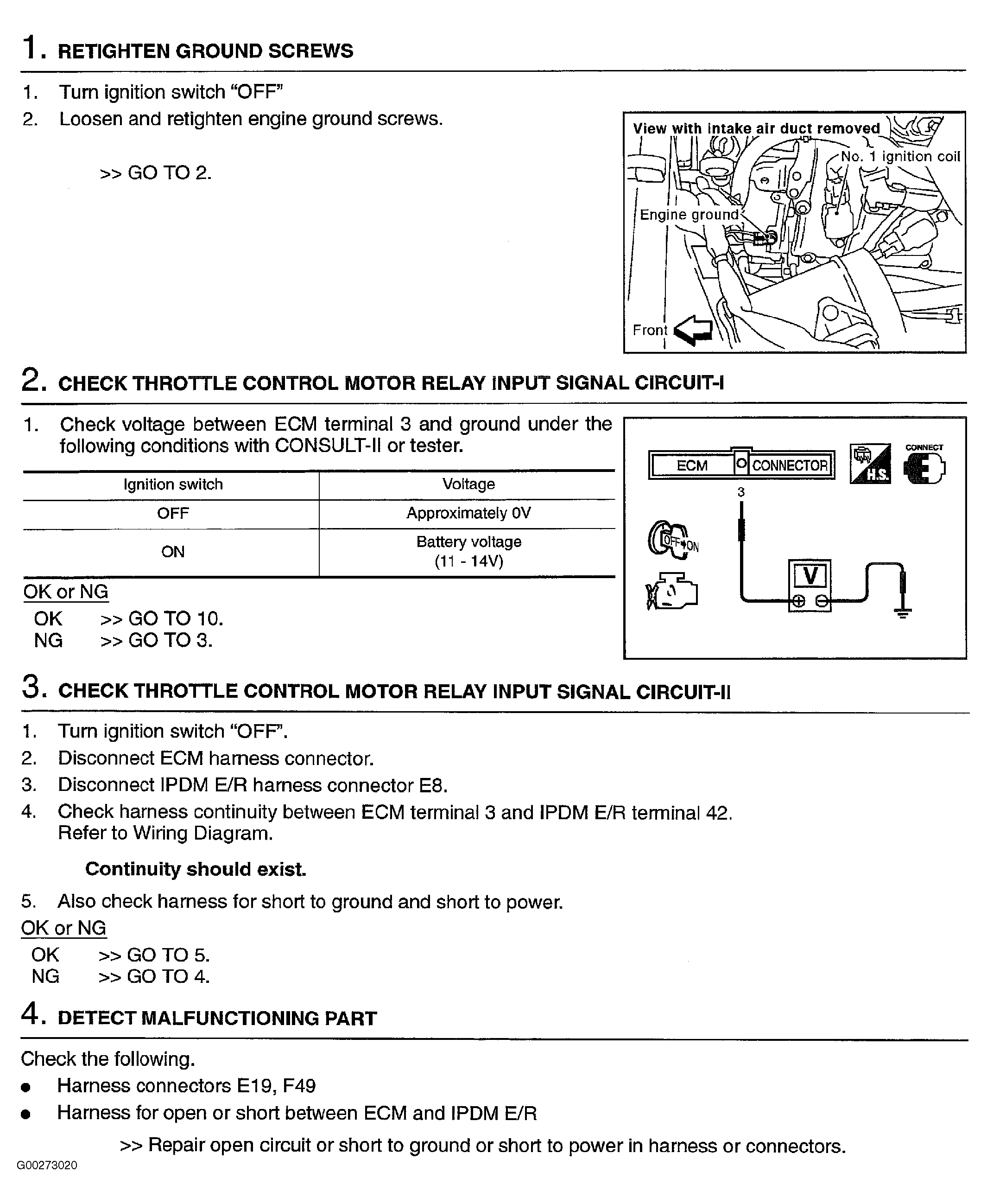

Fig 2: Diagnostic Procedure For Electric Throttle Control Function (Step 1-4)

Courtesy of NISSAN MOTOR CO., U.S.A.

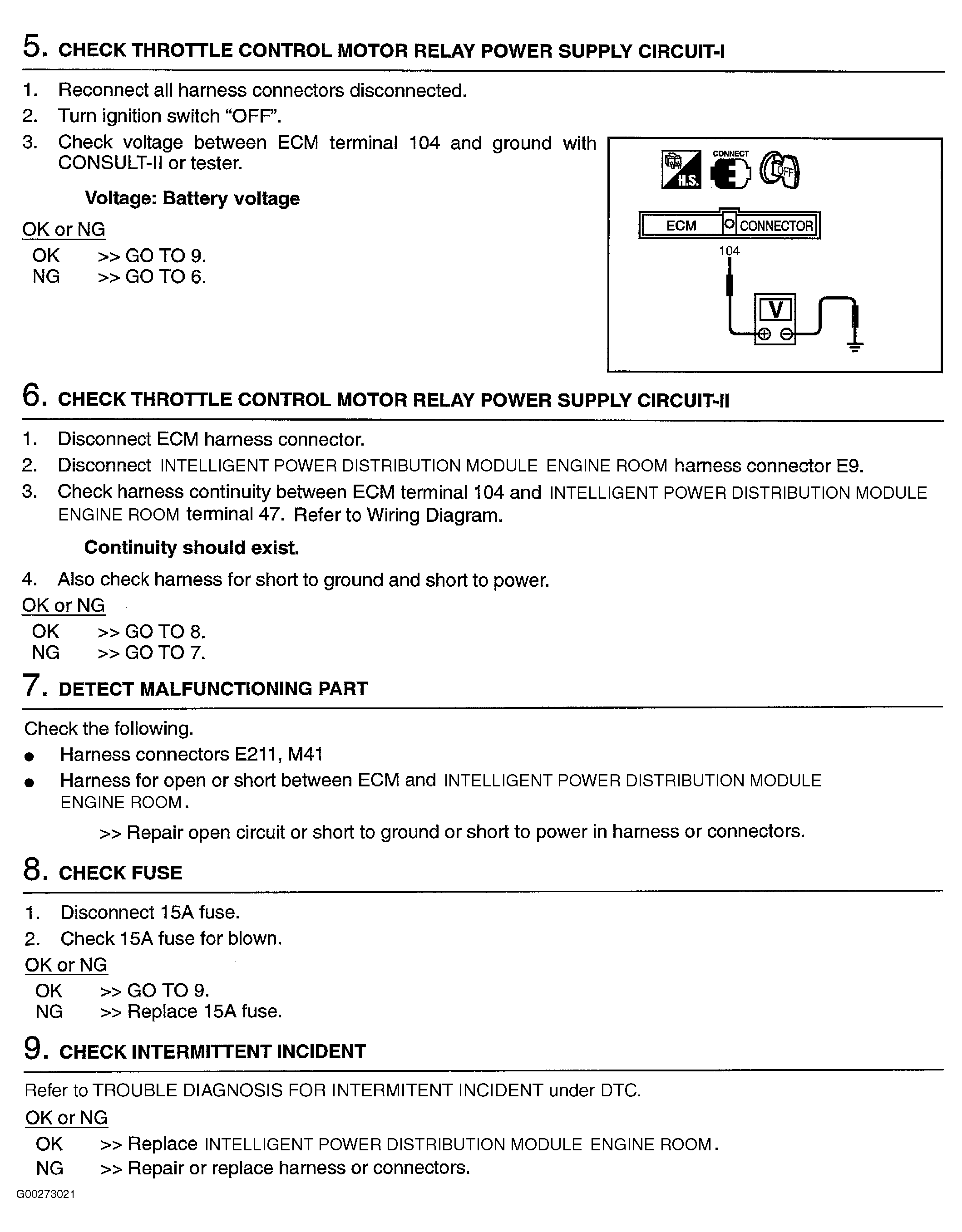

Fig 3: Diagnostic Procedure For Electric Throttle Control Function (Step 5-9)

Courtesy of NISSAN MOTOR CO., U.S.A.

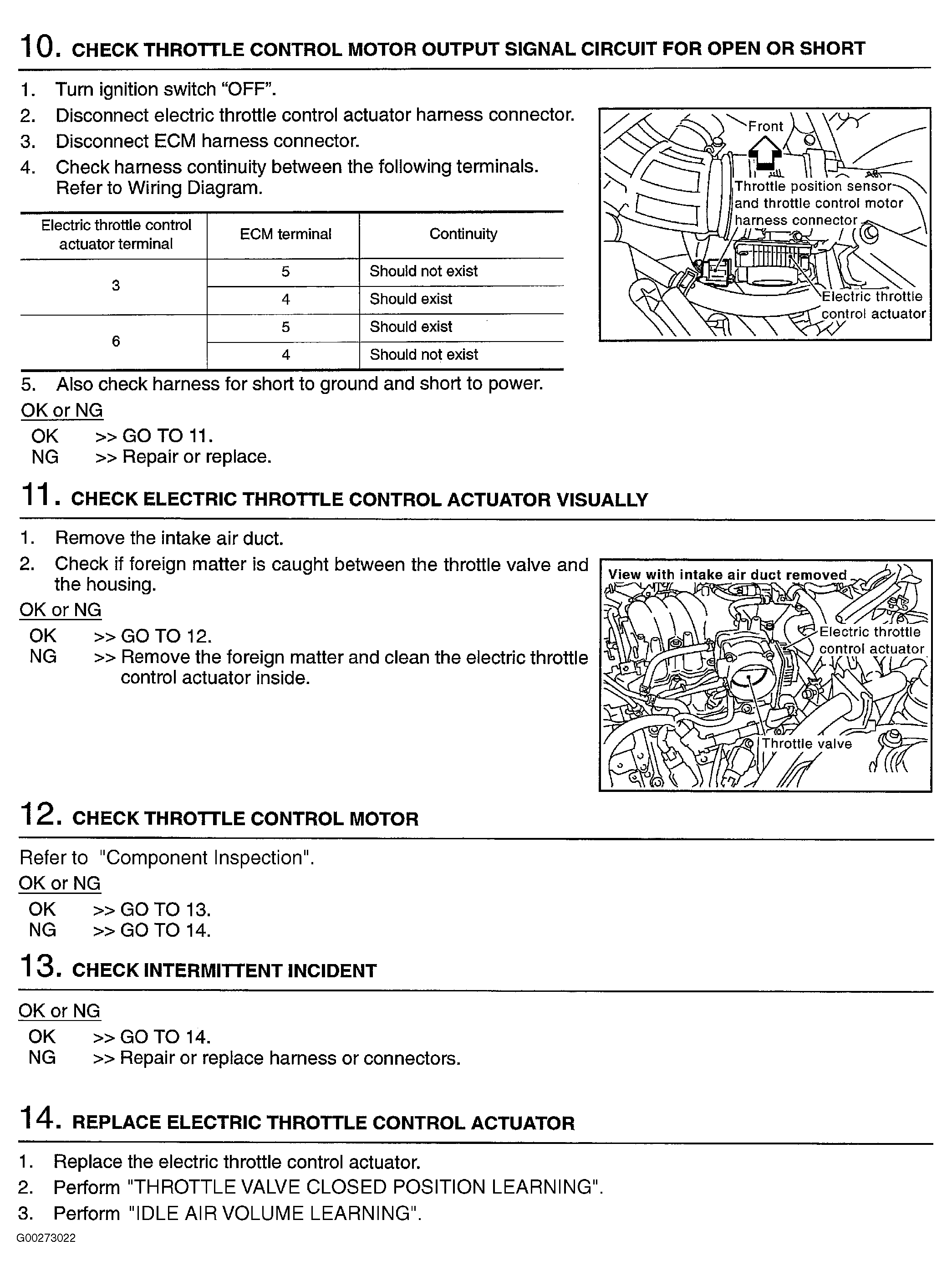

Fig 4: Diagnostic Procedure For Electric Throttle Control Function (Step 10-14)

Courtesy of NISSAN MOTOR CO., U.S.A.
