Diagnostic Procedure

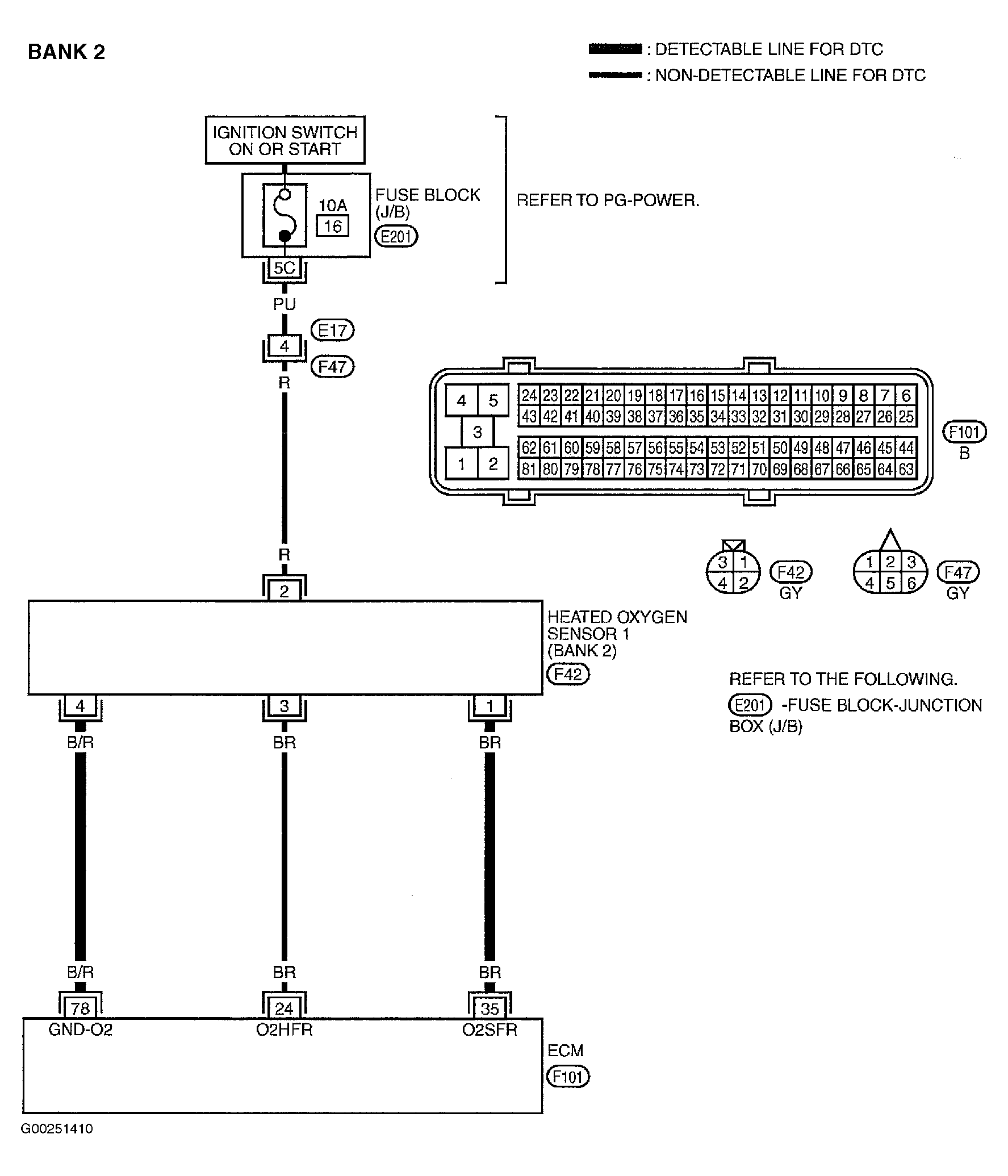

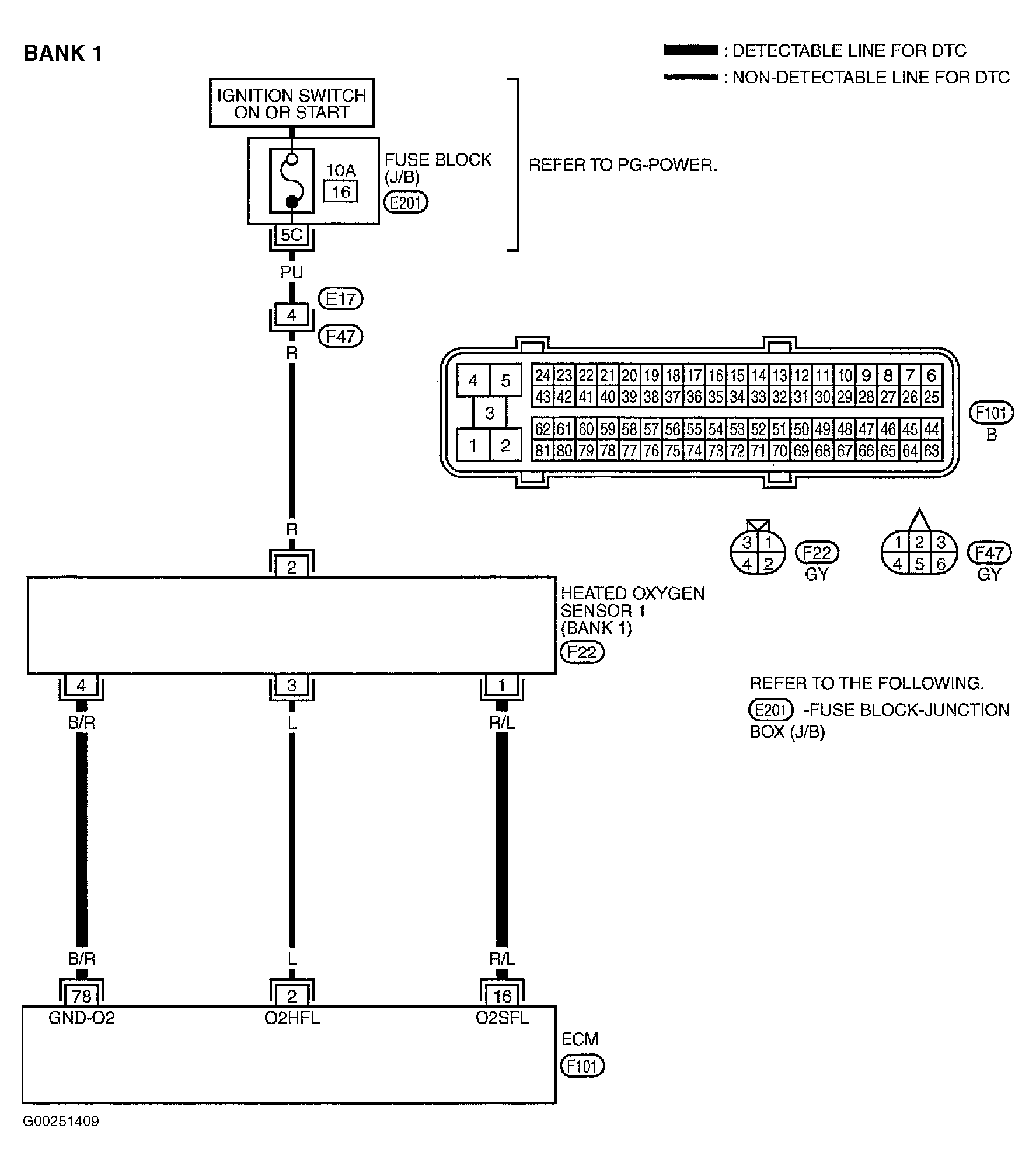

For wiring diagram, see Figure and Figure . For diagnostic procedure, see DIAGNOSTIC PROCEDURE  under DTC P0133 OR P0153.
