Action Test

For action test, see Fig 1 -Fig 3 .

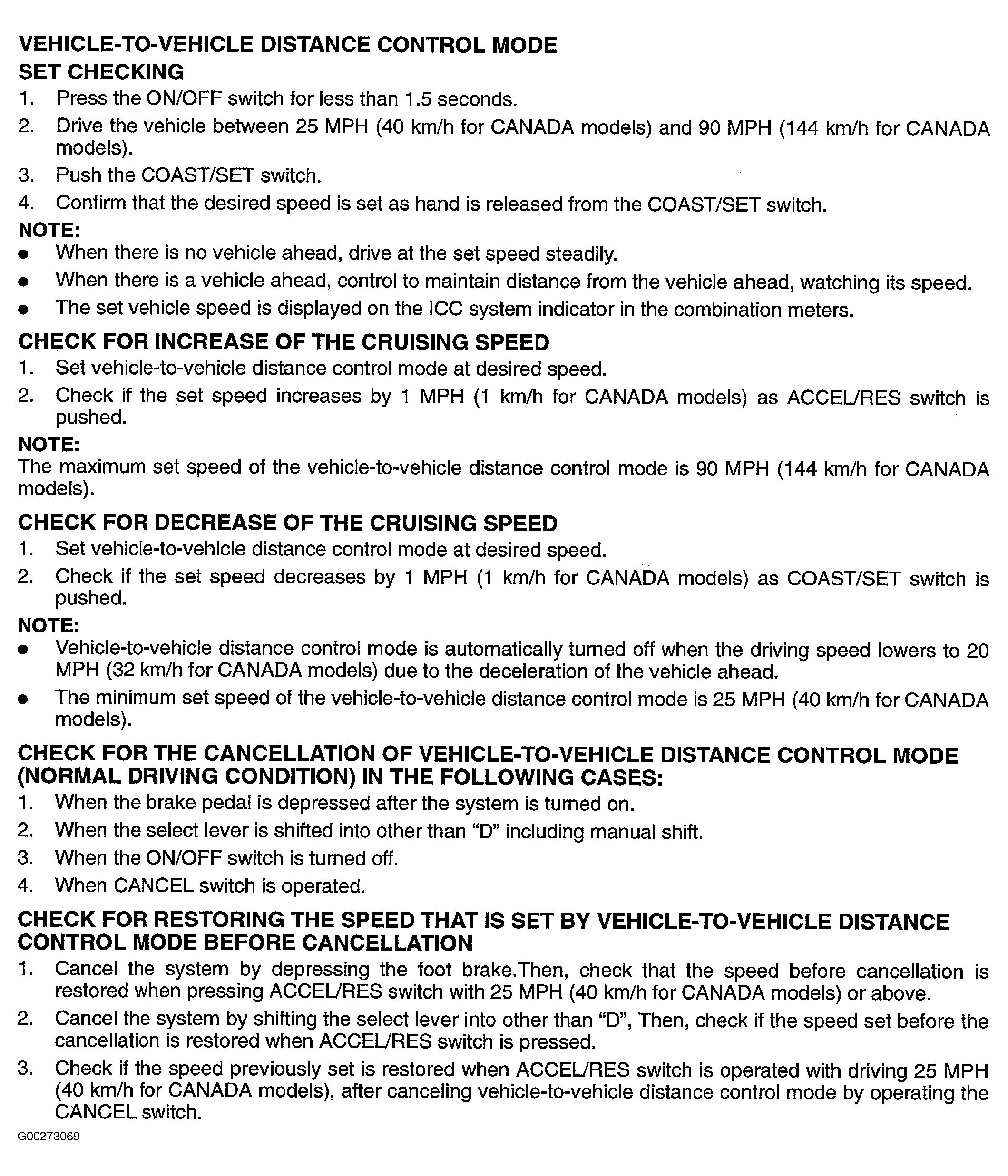

Fig 1: Action Test (1 Of 3)

G00273069

Courtesy of NISSAN MOTOR CO., U.S.A.

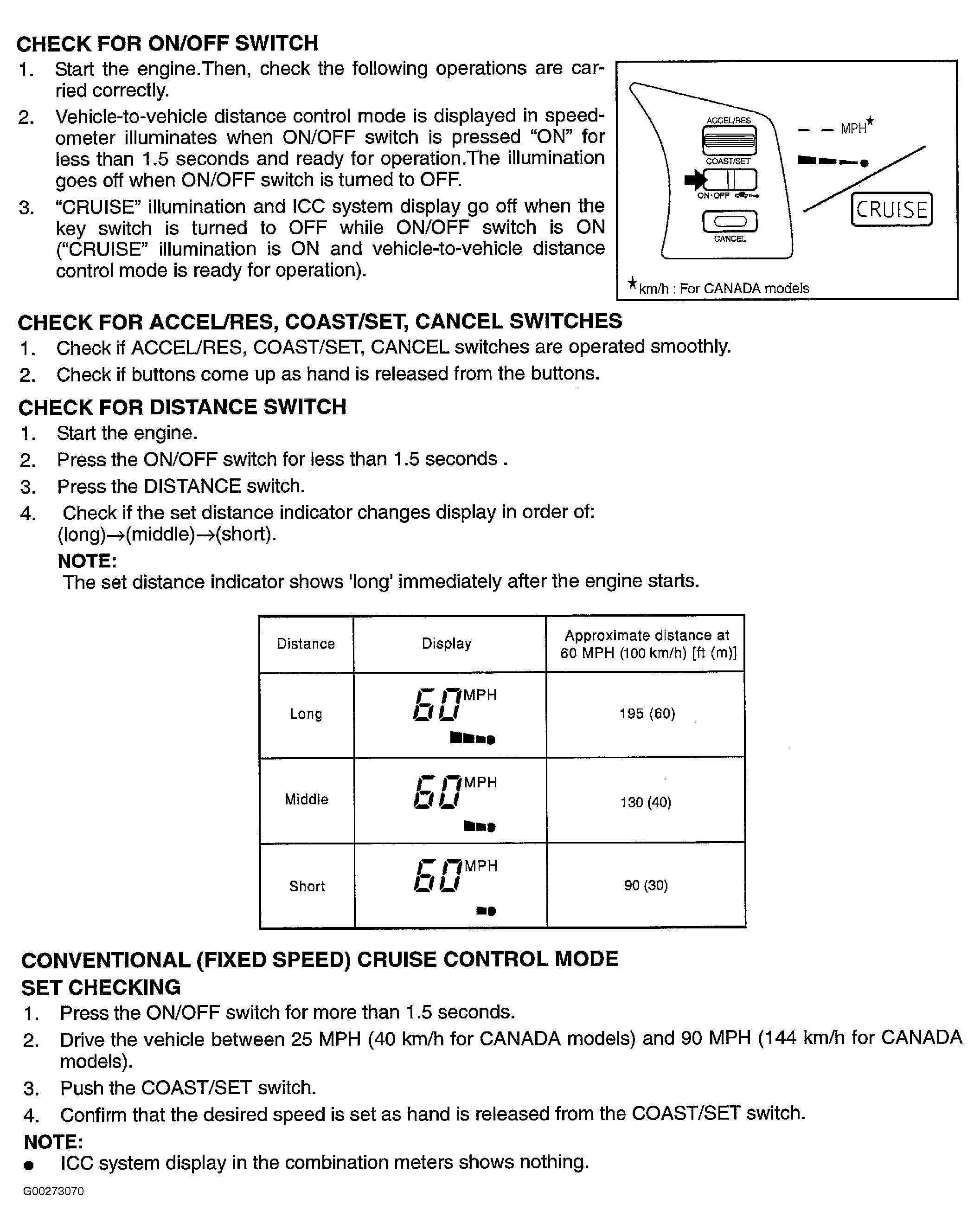

Fig 2: Action Test (2 Of 3)

G00273070

Courtesy of NISSAN MOTOR CO., U.S.A.

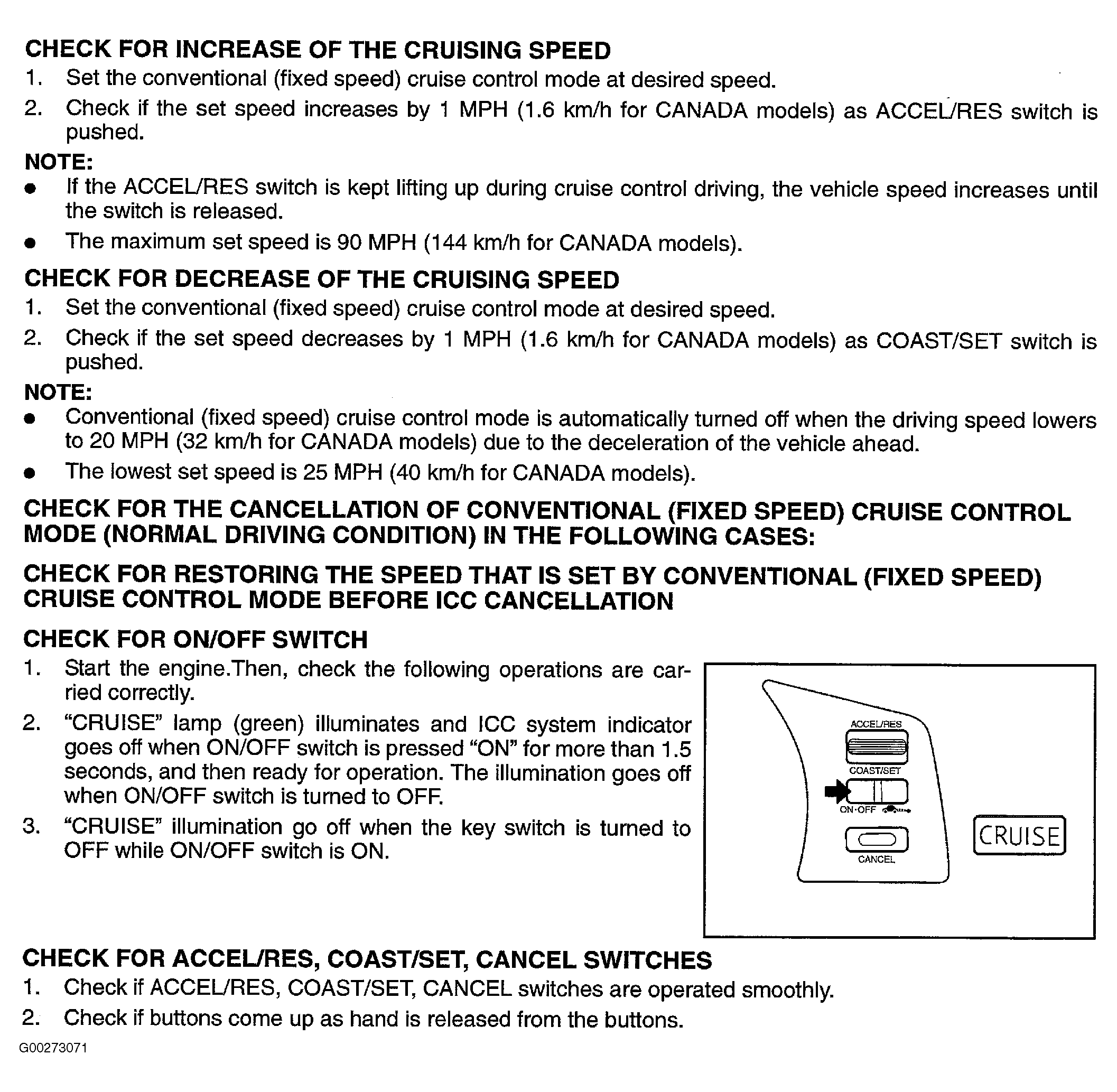

Fig 3: Action Test (3 Of 3)

G00273071

Courtesy of NISSAN MOTOR CO., U.S.A.
