EVAP Canister Test

Remove EVAP canister. Plug vent hose and blow air into port "A". Air should flow freely out of port "B". See Fig 1. Replace EVAP canister if operation is not as specified.

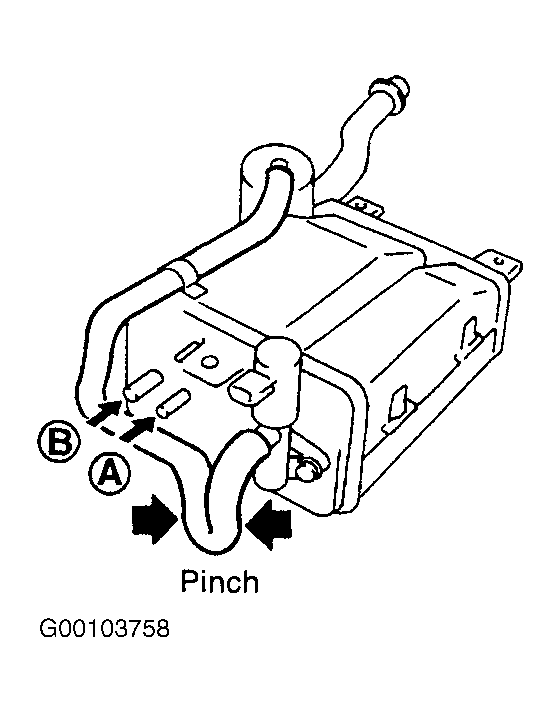

Fig 1: Testing EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.
