< Driving Pattern A>

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

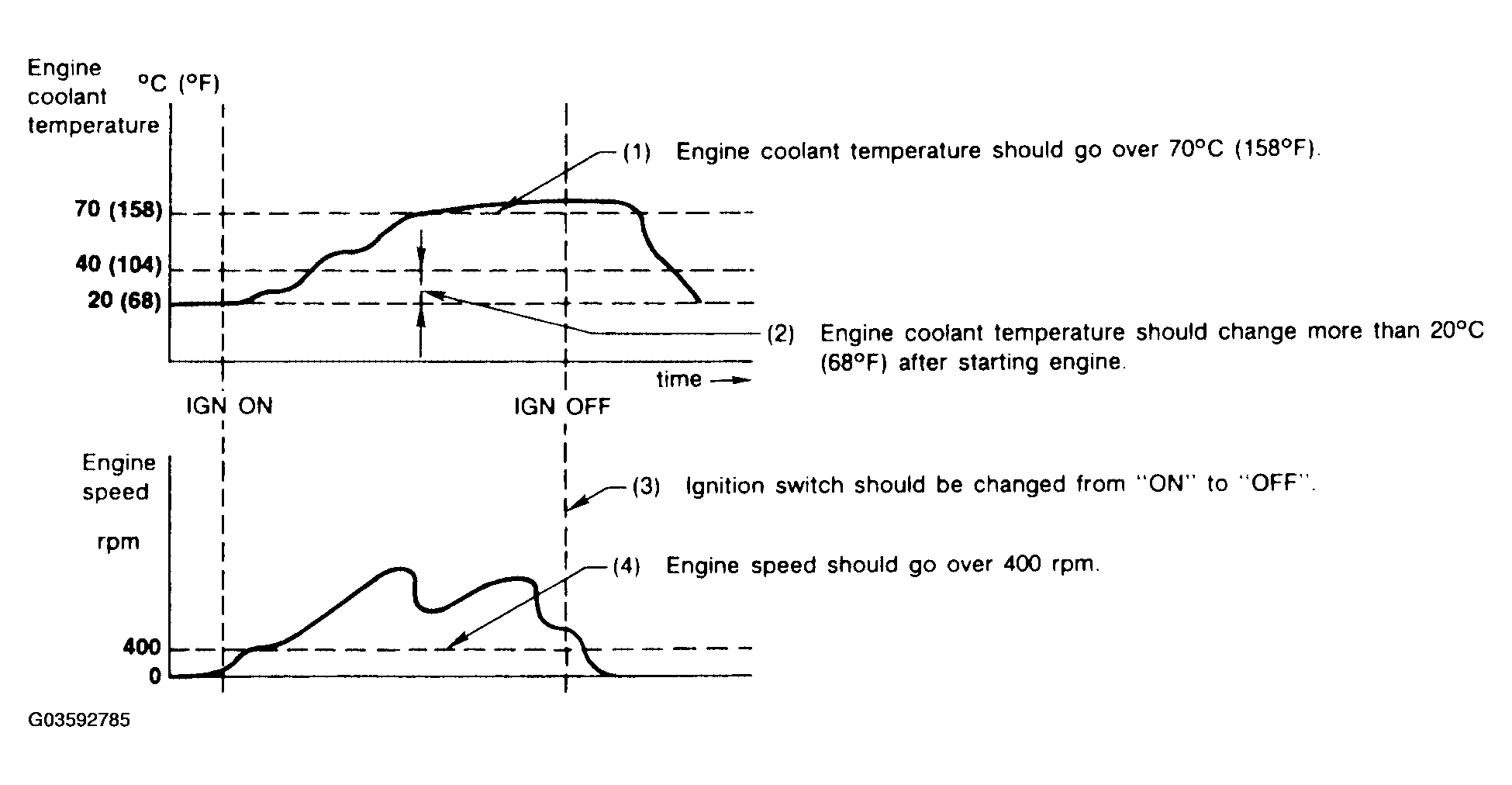

Fig 1: Identifying Driving Pattern A

Courtesy of NISSAN MOTOR CO., U.S.A.

The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
The DTC will not be displayed after the A counter reaches 40.
