Hydraulic Line: Component

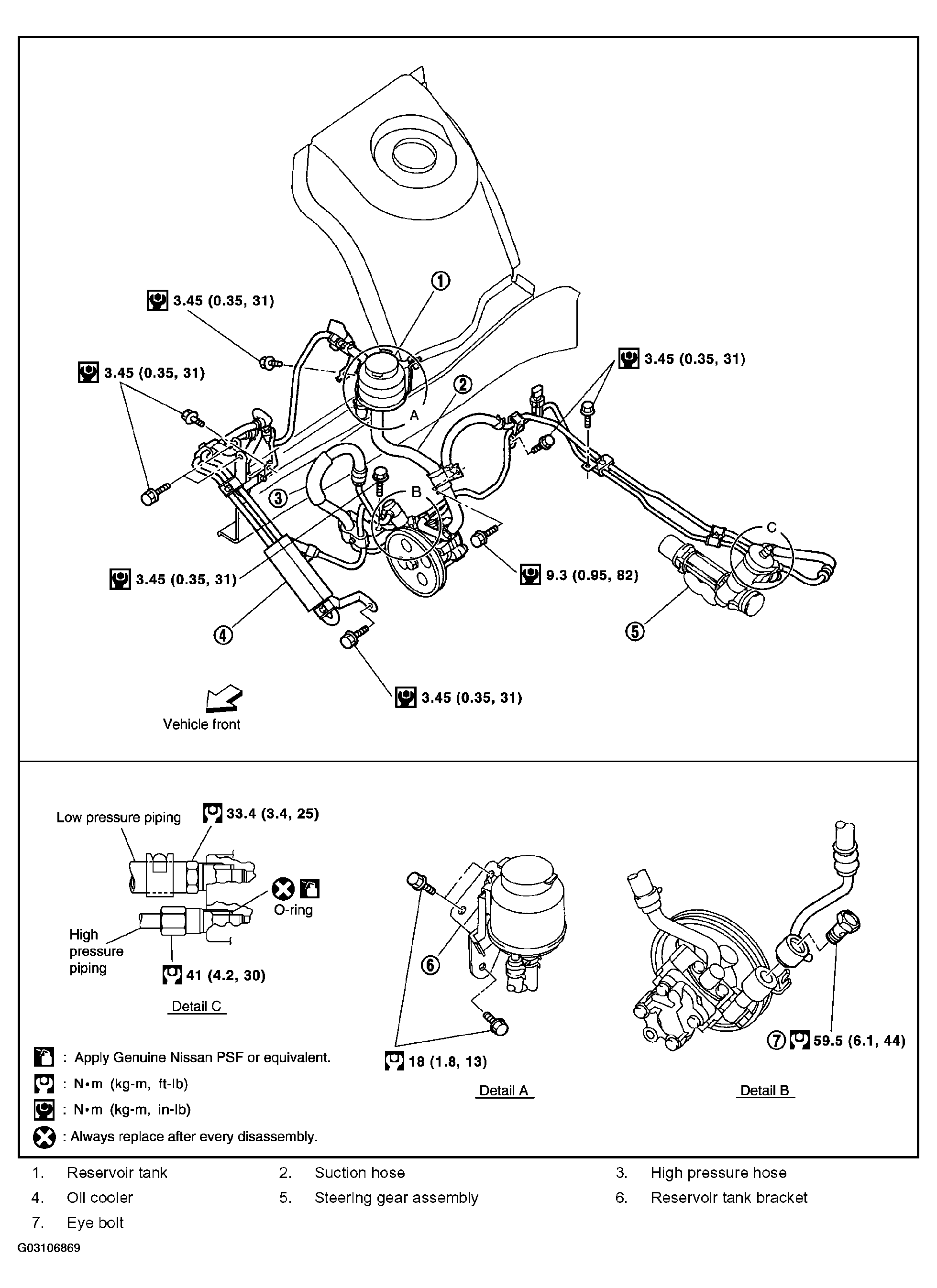

Fig 1: Identifying Components Of Hydraulic Line (VK45DE AWD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
