Components (with Automatic Drive Positioner)

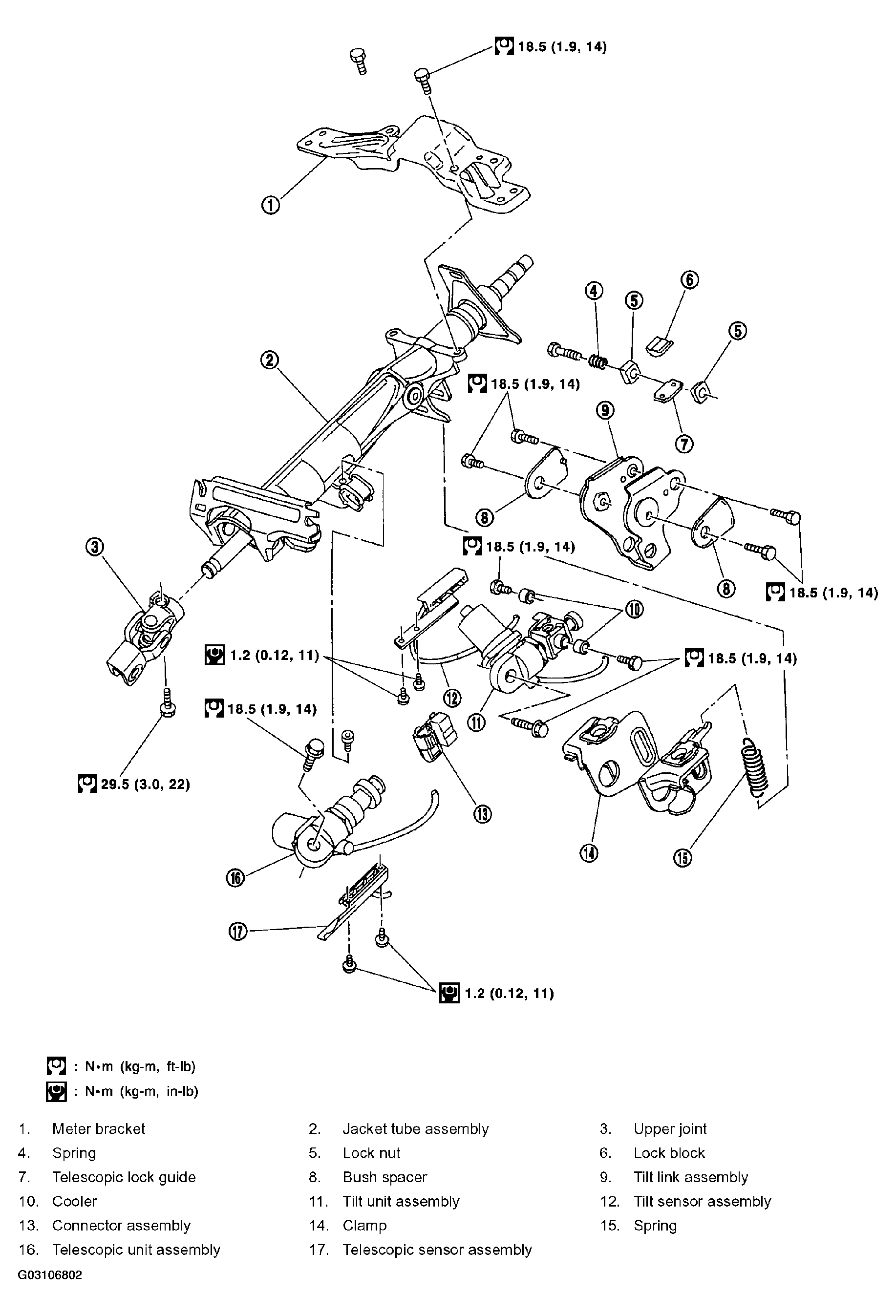

Fig 1: Identifying Components Of Steering Column (With Automatic Drive Positioner)
G03106802Courtesy of NISSAN MOTOR CO., U.S.A.
