Mirror Sensor (Passenger Side) Circuit Check

CHECK DOOR MIRROR FUNCTION
Check the following.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG
1. OK: GO TO 2.
2. NG: Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR INSPECTION

With CONSULT-II

Make sure "ON" is displayed on "MIR/SE RH R-L, MIR/SE RH U-D" in the DATA MONITOR.

Fig 1: Checking Mirror Sensor Inspection

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECKING MIRROR SENSOR With CONSULT-II

Monitor item [OPERATION or UNIT]		Contents
MIR/SE RH R-L	"V"	Voltage output from (passenger side) door mirror sensor (LH/RH) is displayed.
MIR/SE RH U-D	"V"	Voltage output from (passenger side) door mirror sensor (UP/DOWN) is displayed.

Without CONSULT-II

Turn ignition switch to ACC position.
Check voltage between door mirror (passenger side) connector and ground.

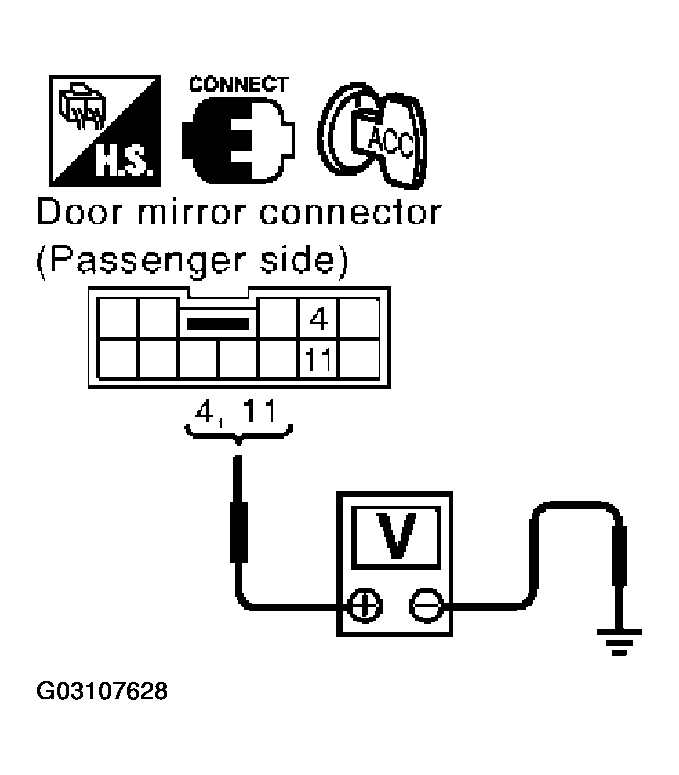

Fig 2: Checking Voltage Between Door Mirror (Passenger Side) Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINAL VOLTAGE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D32	4(LG)	Ground	When motor is UP or DOWN operation	Changes between 3 (close to peak) - 1 (close to valley)
D32	11 (P)	Ground	When motor is LEFT or RIGHT operation	Changes between 1 (close to left edge) - 3 (close to right edge)

OK or NG

OK: Mirror sensor (passenger side) circuit is OK.
NG: GO TO 3.

CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror (passenger side) connector.
2. Check continuity between automatic drive positioner control unit connector M50 terminal 33 (G/W), 41 (B/Y) and door mirror (passenger side) connector D32 terminal 5 (BR), 12 (G).

  Fig 3: Checking Harness Continuity 1
  Courtesy of NISSAN MOTOR CO., U.S.A.

  33 (G/W) - 5 (BR): Continuity should exist.

  41 (B/Y) - 12 (G): Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M50 terminals 33 (G/W), 41 (B/P) and ground.
  33 (G/W) - Ground: Continuity should not exist.

  41 (B/Y) - Ground: Continuity should not exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).
CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M49 terminal 5 (OR), 21 (G/Y) and door mirror (passenger side) connector D32 terminal 4 (LG), 11 (P).
  5 (OR) - 4 (LG): Continuity should exist.

  21 (G/Y) - 11 (P): Continuity should exist.

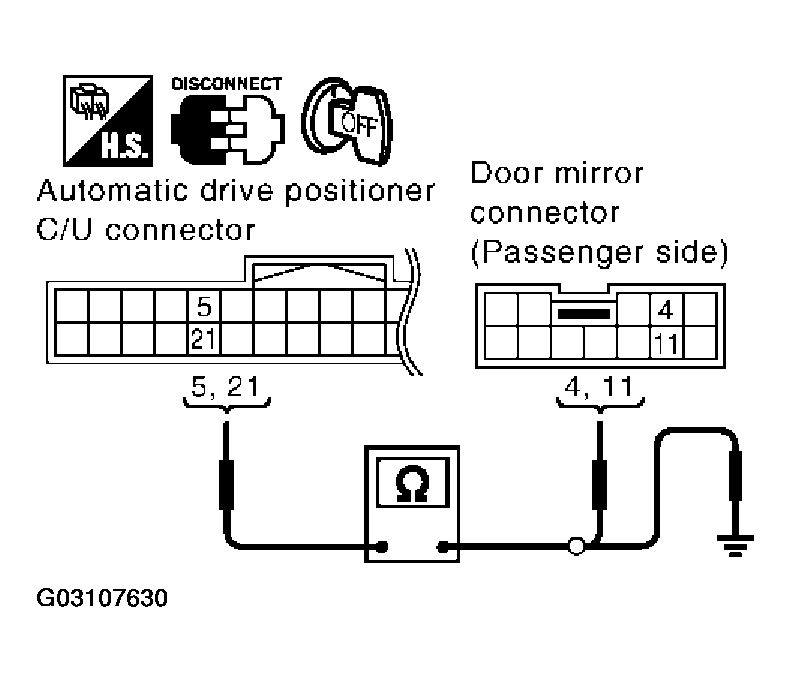

  Fig 4: Checking Harness Continuity 2
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check continuity between automatic drive positioner control unit connector M49 terminal 5 (OR), 21 (G/Y) and ground.
  5 (OR) - Ground: Continuity should not exist.

  21 (G/Y) - Ground: Continuity should not exist.
OK or NG
1. OK: Check the condition of the harness and connector.
2. NG: Repair or replace harness between automatic drive positioner control unit and door mirror (passenger side).
