Telescopic Sensor Circuit Inspection
- CHECK FUNCTION
With CONSULT-II

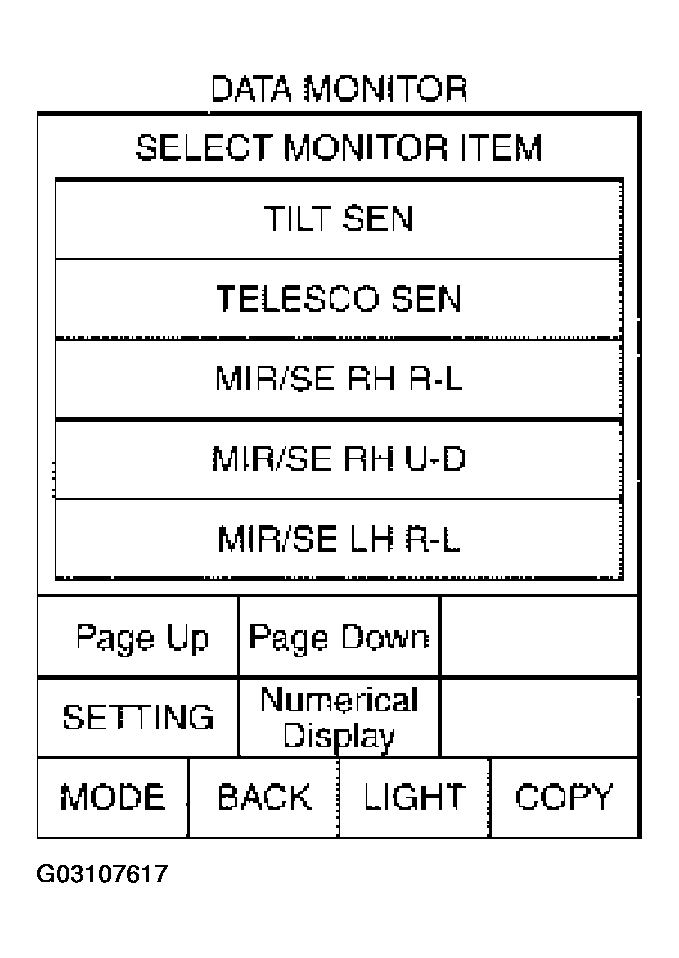

Operate the telescopic switch with "TELESCO SEN" on the DATA MONITOR to make sure the voltage changes.
MONITOR TEST ITEM DESCRIPTIONMonitor item [OPERATION or UNIT] Contents TELESCO SEN "V" The telescoping position (voltage) judged from the telescoping sensor signal is displayed. Without CONSULT-II
- Turn ignition switch OFF.

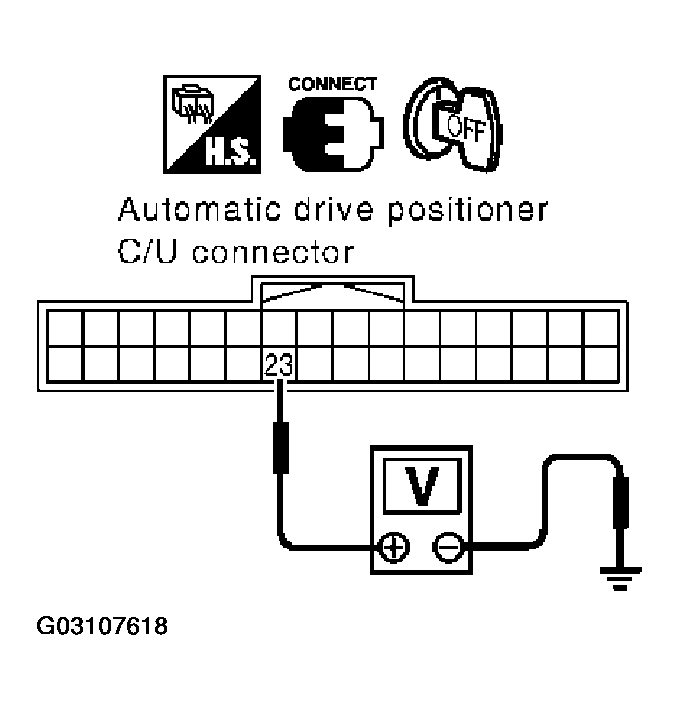

- Check voltage between automatic drive positioner control unit connector and ground.
MONITOR TEST ITEM DESCRIPTIONConnector Terminals (Wire color) Condition Voltage (V) (Approx.) (+) (-) M49 23 (Y/B) Ground Telescopic top position 0.56 Telescopic bottom position 4.44 OK or NG
- OK: Telescopic sensor circuit is OK.
- NG: GO TO 2.
- CHECK HARNESS CONTINUITY
- Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connector.

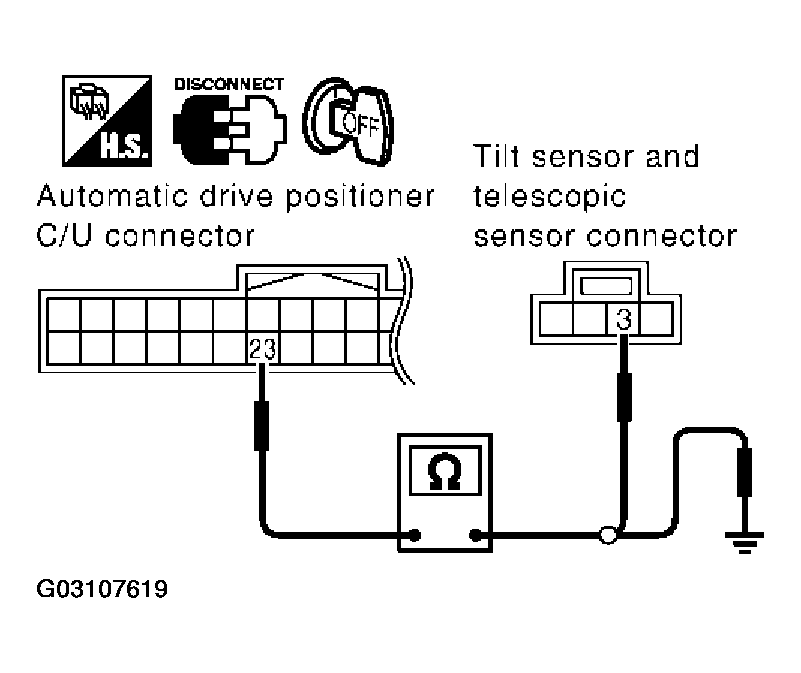

- Check continuity harness between automatic drive positioner control unit connector M49 terminals 23 (Y/B) and tilt sensor and telescopic sensor connector M28 terminals 3 (Y/B).
23 (Y/B) - 3 (Y/B): Continuity should exist.
- Check continuity harness between automatic drive positioner control unit connector M28 terminals 23 (Y/B) and ground.
23 (Y/B) - Ground: Continuity should not exist.
OK or NG
- OK: Replace tilt sensor and telescopic sensor.
- NG: Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.
