Tilt Sensor Circuit Inspection
- CHECK FUNCTION
With CONSULT-II

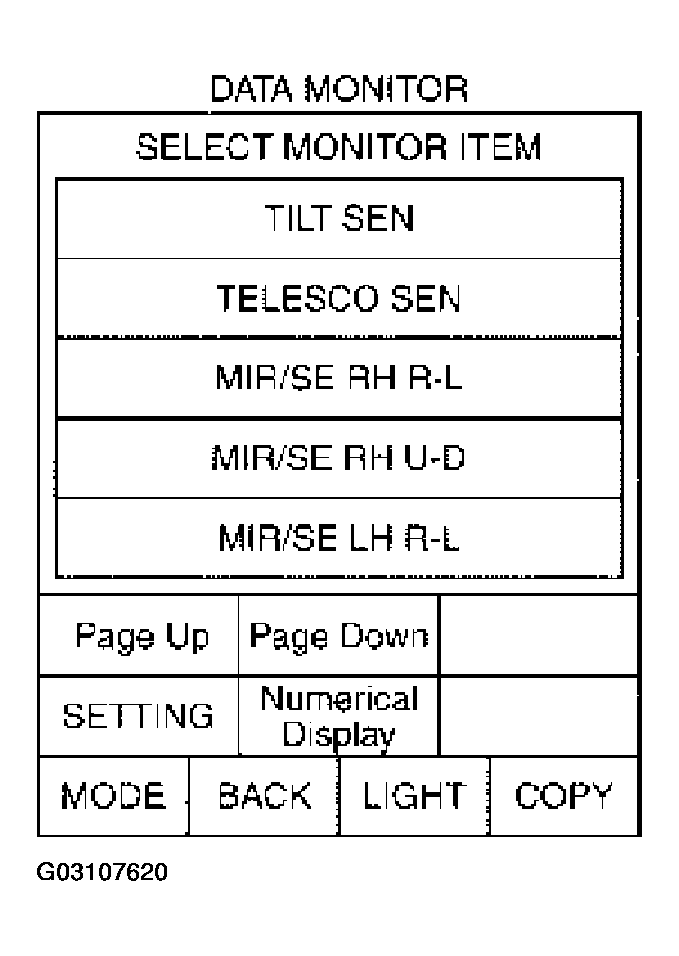

With "TILT SEN" on the DATA MONITOR, operate the tilt switch to make sure voltage changes.
CHECKING TILT SENSOR CIRCUIT FUNCTION With CONSULT-IIMonitor item [OPERATION or UNIT] Contents TILT SEN "V" The tilt position (voltage) judged from the tilt sensor signal is displayed. Without CONSULT-II
- Turn ignition switch OFF.

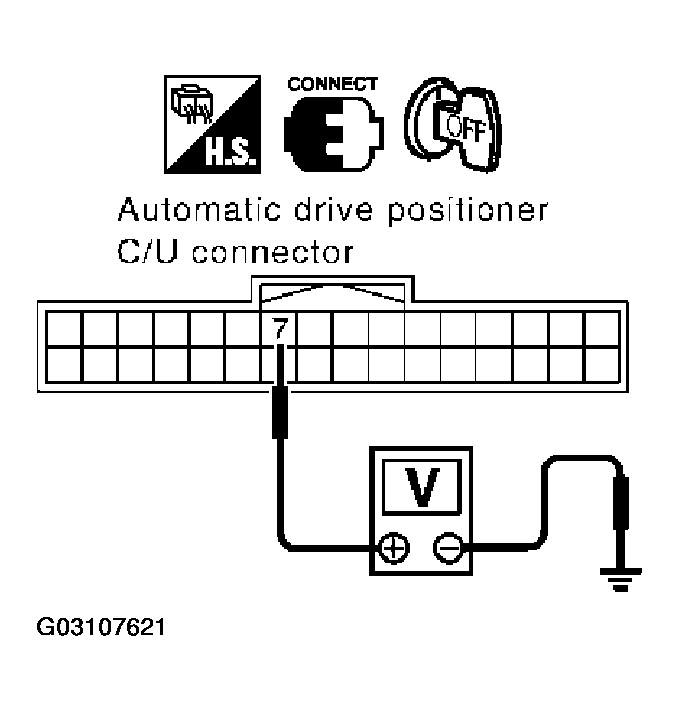

- Check voltage between automatic drive positioner control unit connector and ground.
CHECKING TILT SENSOR CIRCUIT FUNCTION WITHOUT CONSULT-IIConnector Terminals (Wire color) Condition Voltage (V) (Approx.) (+) (-) M49 7 (Y/R) Ground Tilt top position 1.82 Tilt bottom position 4.44 OK or NG
- OK: Tilt sensor circuit is OK.
- NG: GO TO 2.
- CHECK HARNESS
- Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connector.

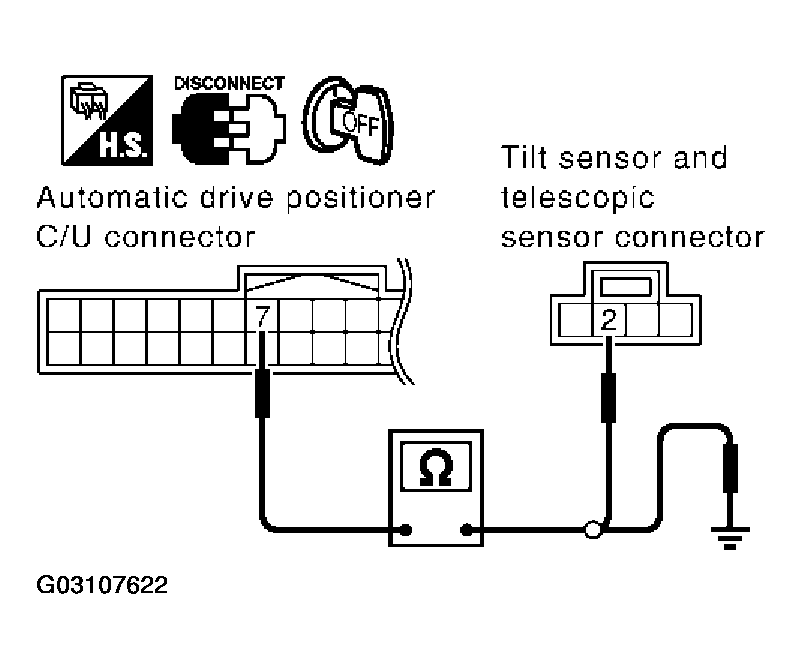

- Check continuity harness between automatic drive positioner control unit connector M49 terminals 7 (Y/R) and tilt sensor and telescopic sensor connector M28 terminals 2 (Y/R).
7 (Y/R) - 2 (Y/R): Continuity should exist.
- Automatic drive positioner control unit connector M49 terminals 7 (Y/R) and ground.
7 (Y/R) - Ground: Continuity should not exist.
OK or NG
- OK: Replace tilt sensor and telescopic sensor.
- NG: Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.
