Wiring Diagram-AUT/DP-

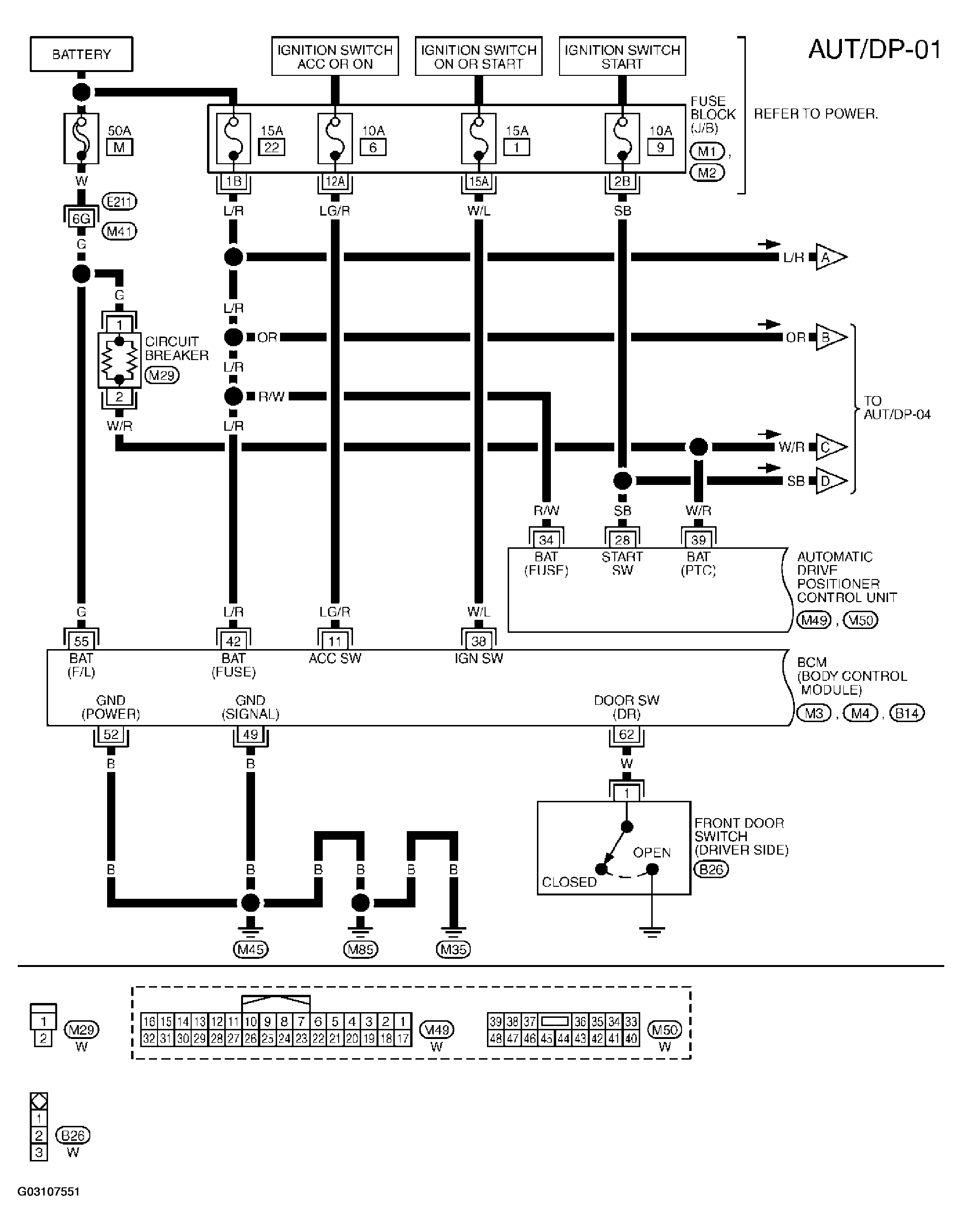

Fig 1: Wiring Diagram-AUT/DP (1 Of 11)

G03107551

Courtesy of NISSAN MOTOR CO., U.S.A.

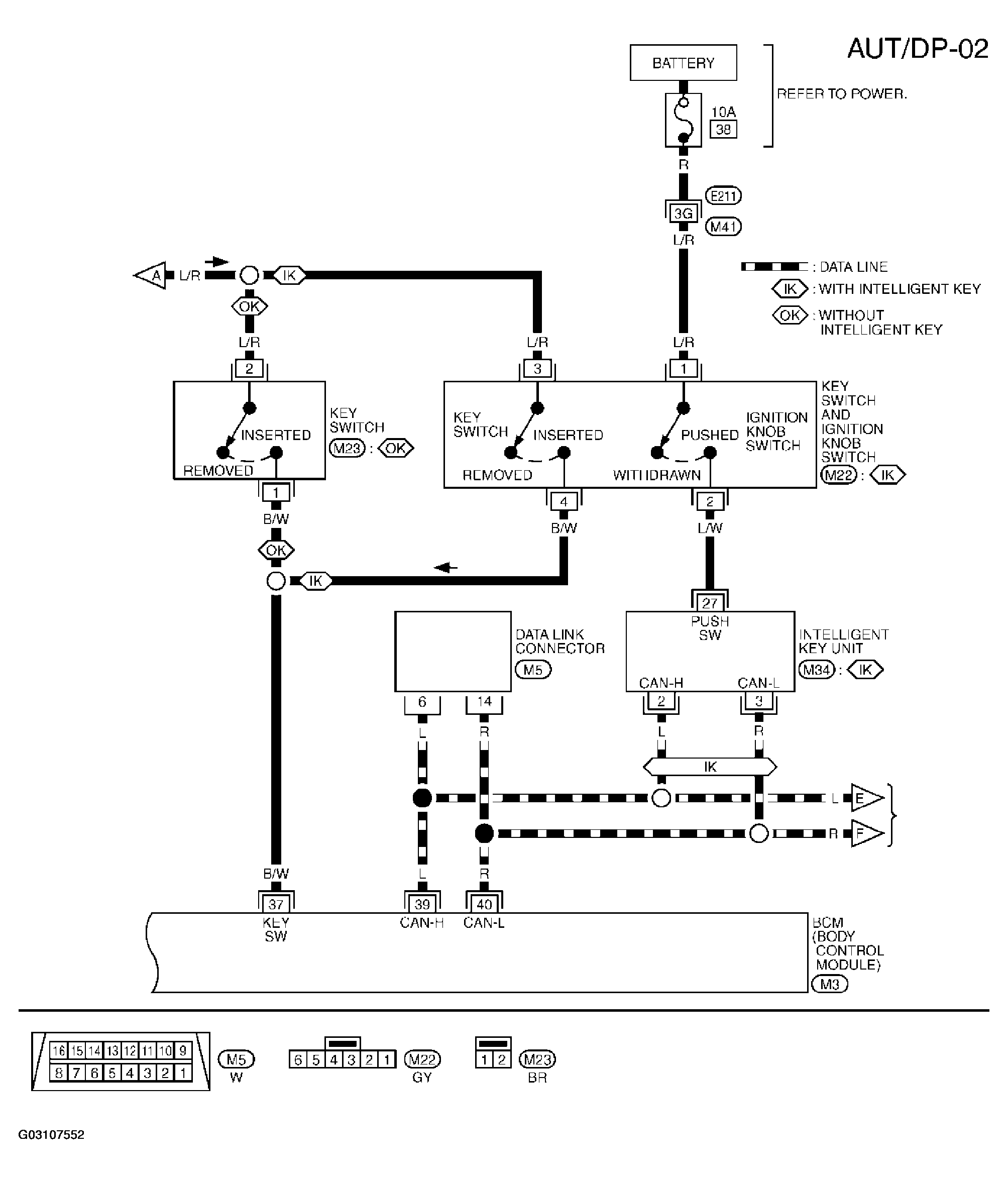

Fig 2: Wiring Diagram-AUT/DP (2 Of 11)

G03107552

Courtesy of NISSAN MOTOR CO., U.S.A.

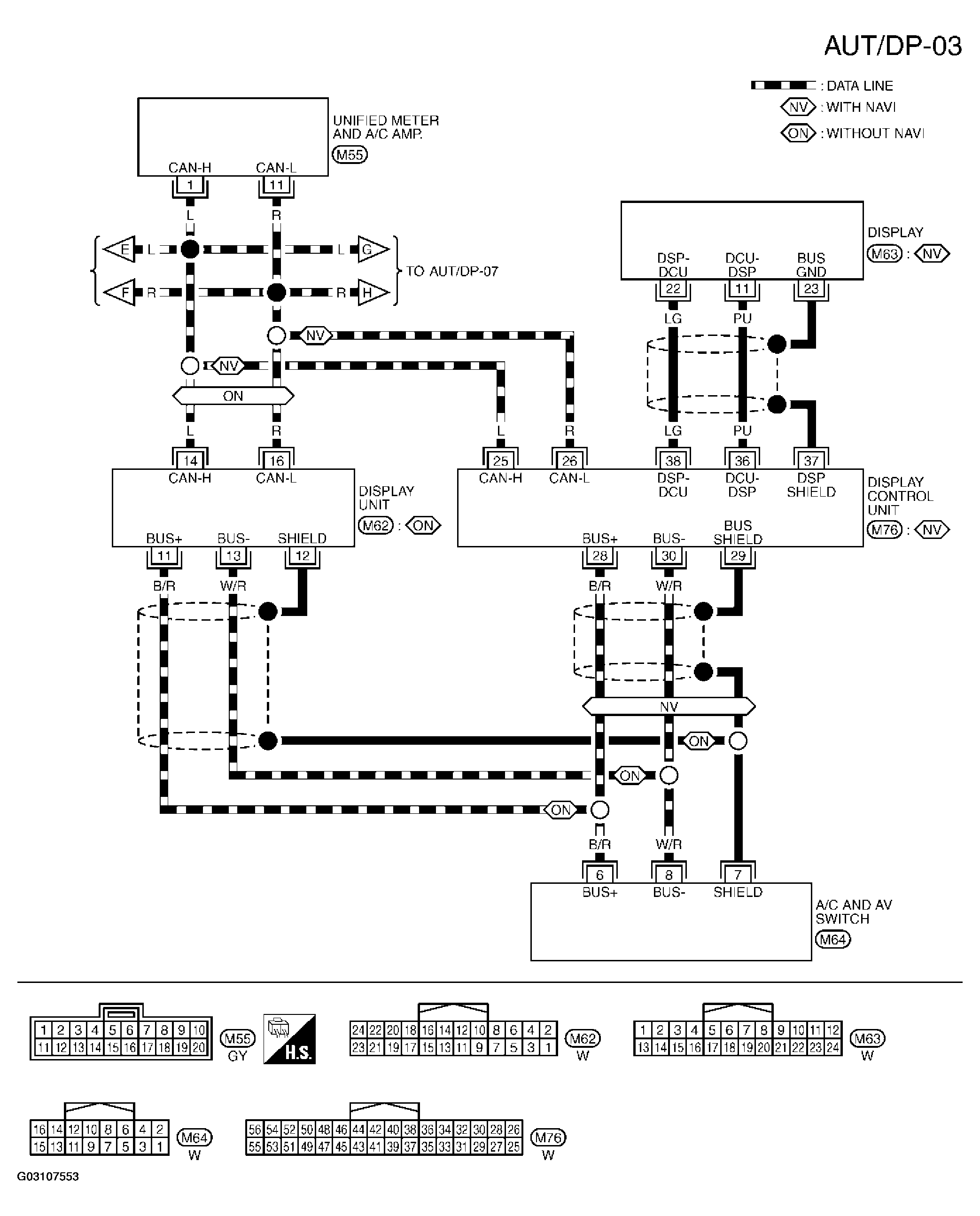

Fig 3: Wiring Diagram-AUT/DP (3 Of 11)

G03107553

Courtesy of NISSAN MOTOR CO., U.S.A.

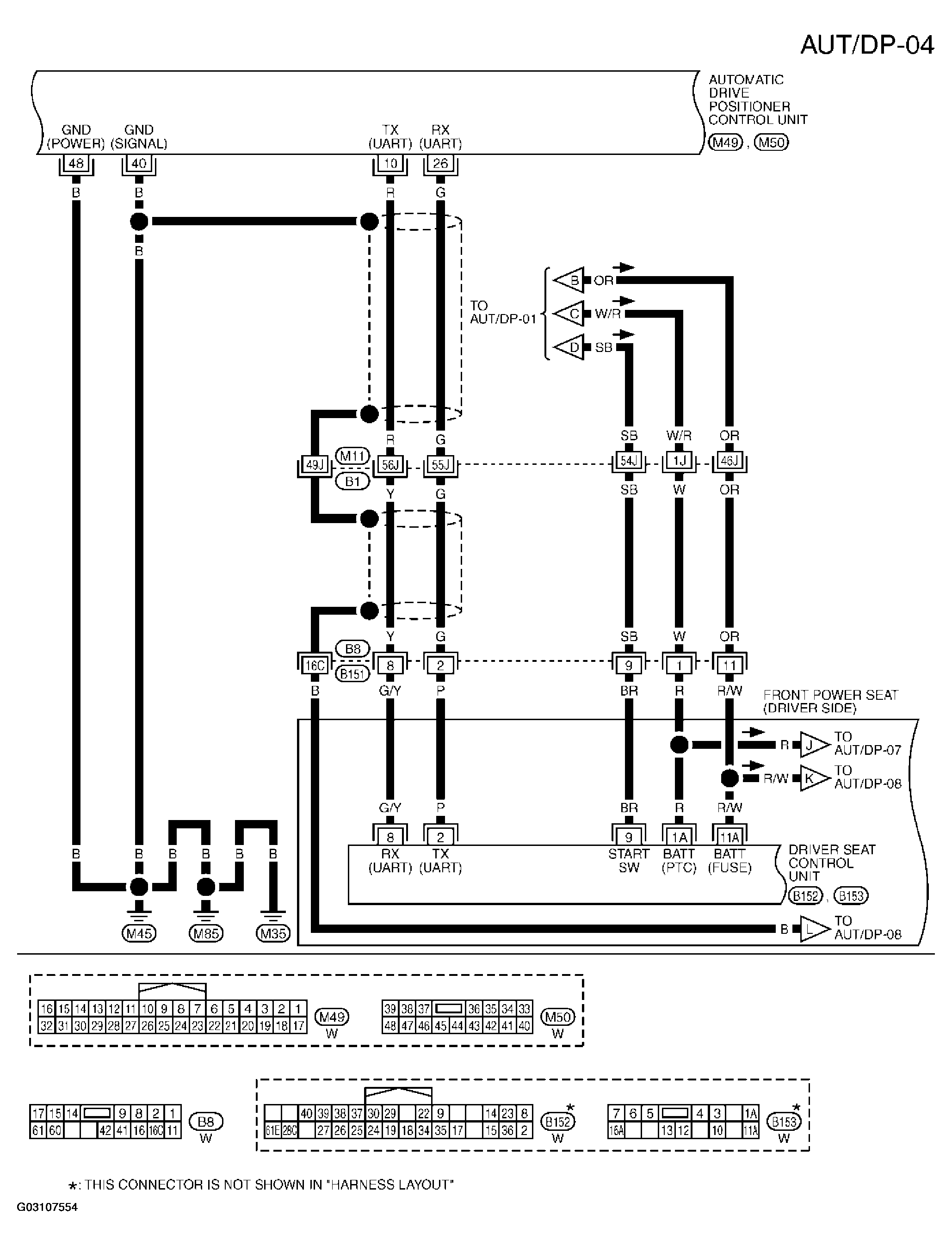

Fig 4: Wiring Diagram-AUT/DP (4 Of 11)

G03107554

Courtesy of NISSAN MOTOR CO., U.S.A.

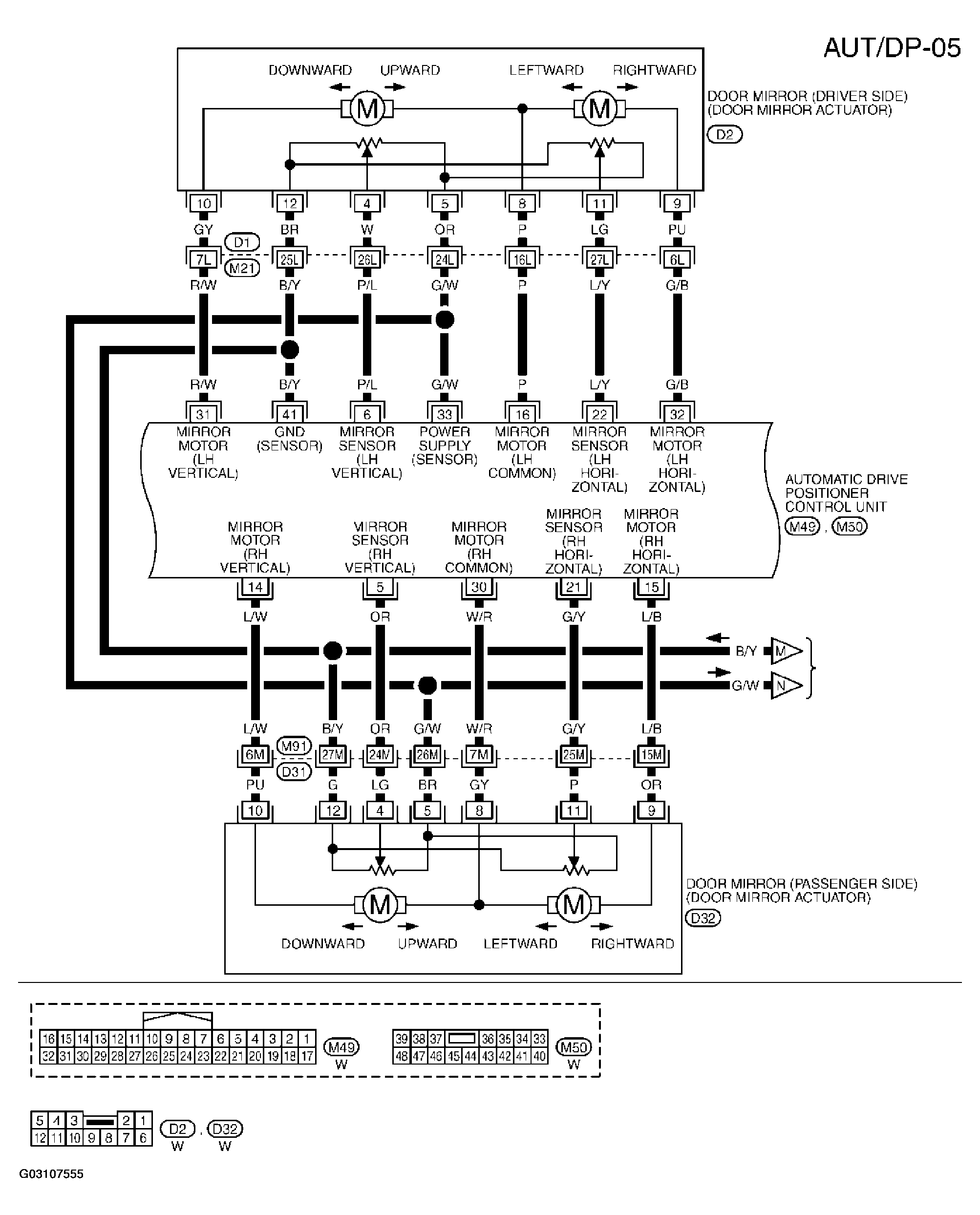

Fig 5: Wiring Diagram-AUT/DP (5 Of 11)

G03107555

Courtesy of NISSAN MOTOR CO., U.S.A.

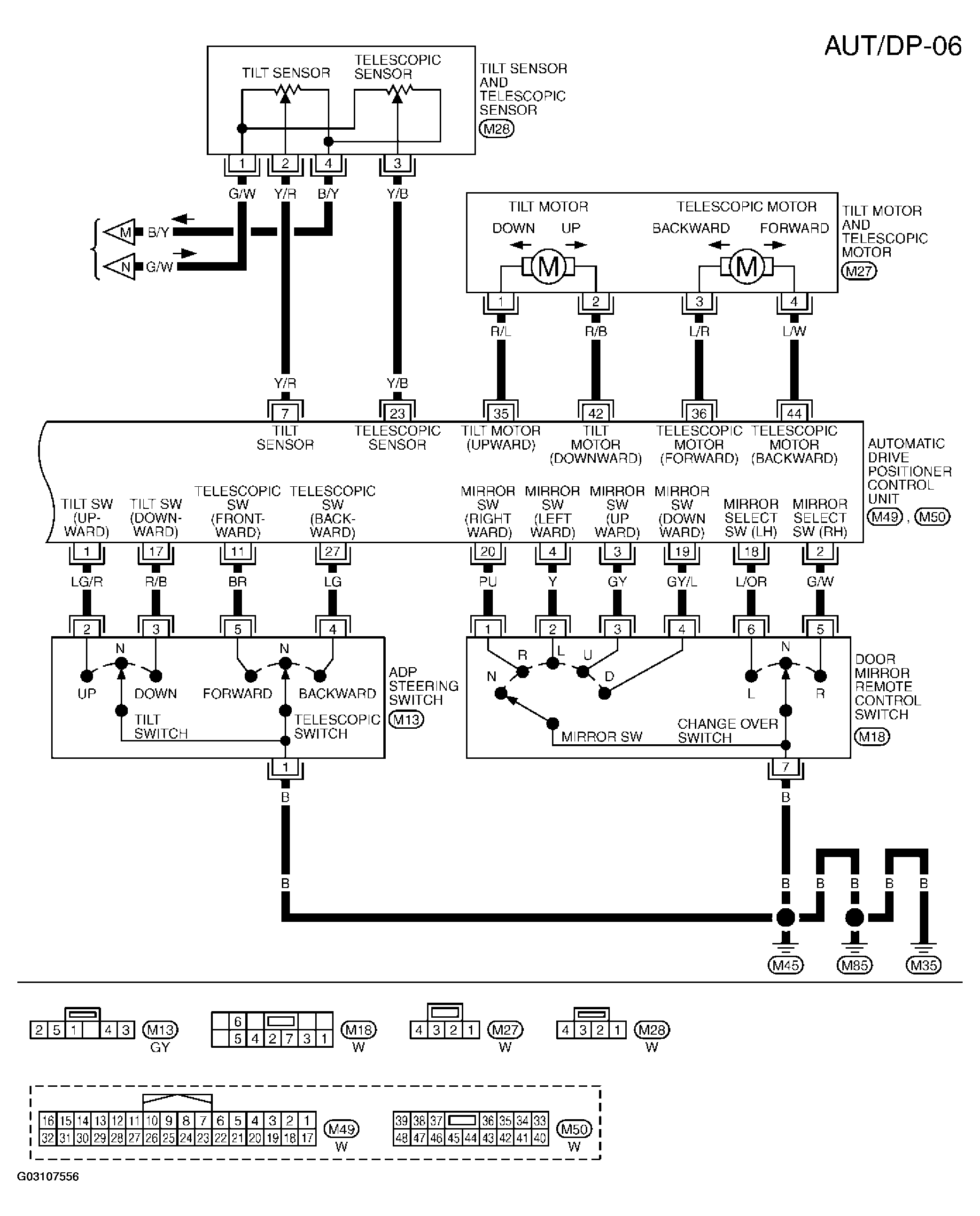

Fig 6: Wiring Diagram-AUT/DP (6 Of 11)

G03107556

Courtesy of NISSAN MOTOR CO., U.S.A.

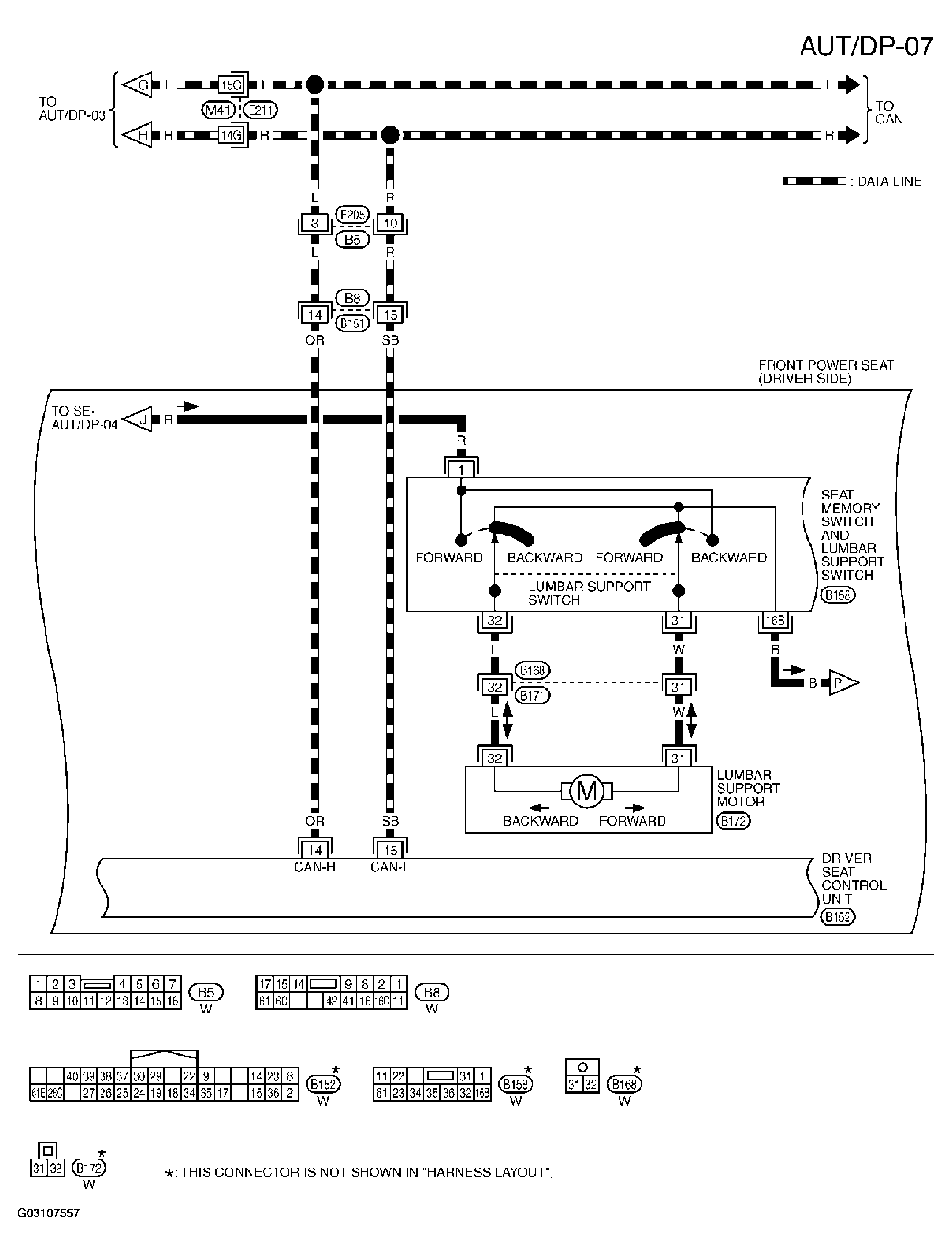

Fig 7: Wiring Diagram-AUT/DP (7 Of 11)

G03107557

Courtesy of NISSAN MOTOR CO., U.S.A.

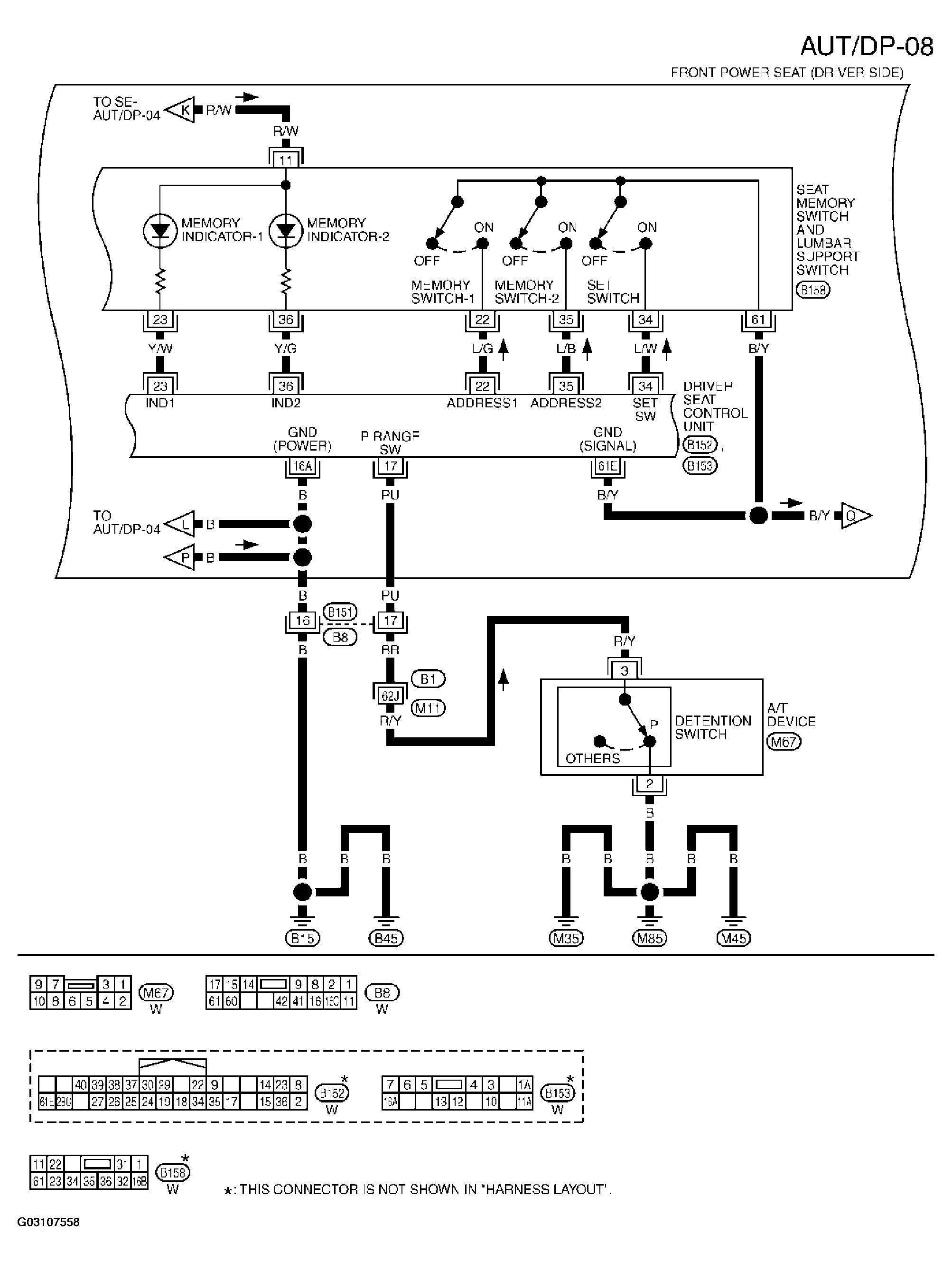

Fig 8: Wiring Diagram-AUT/DP (8 Of 11)

G03107558

Courtesy of NISSAN MOTOR CO., U.S.A.

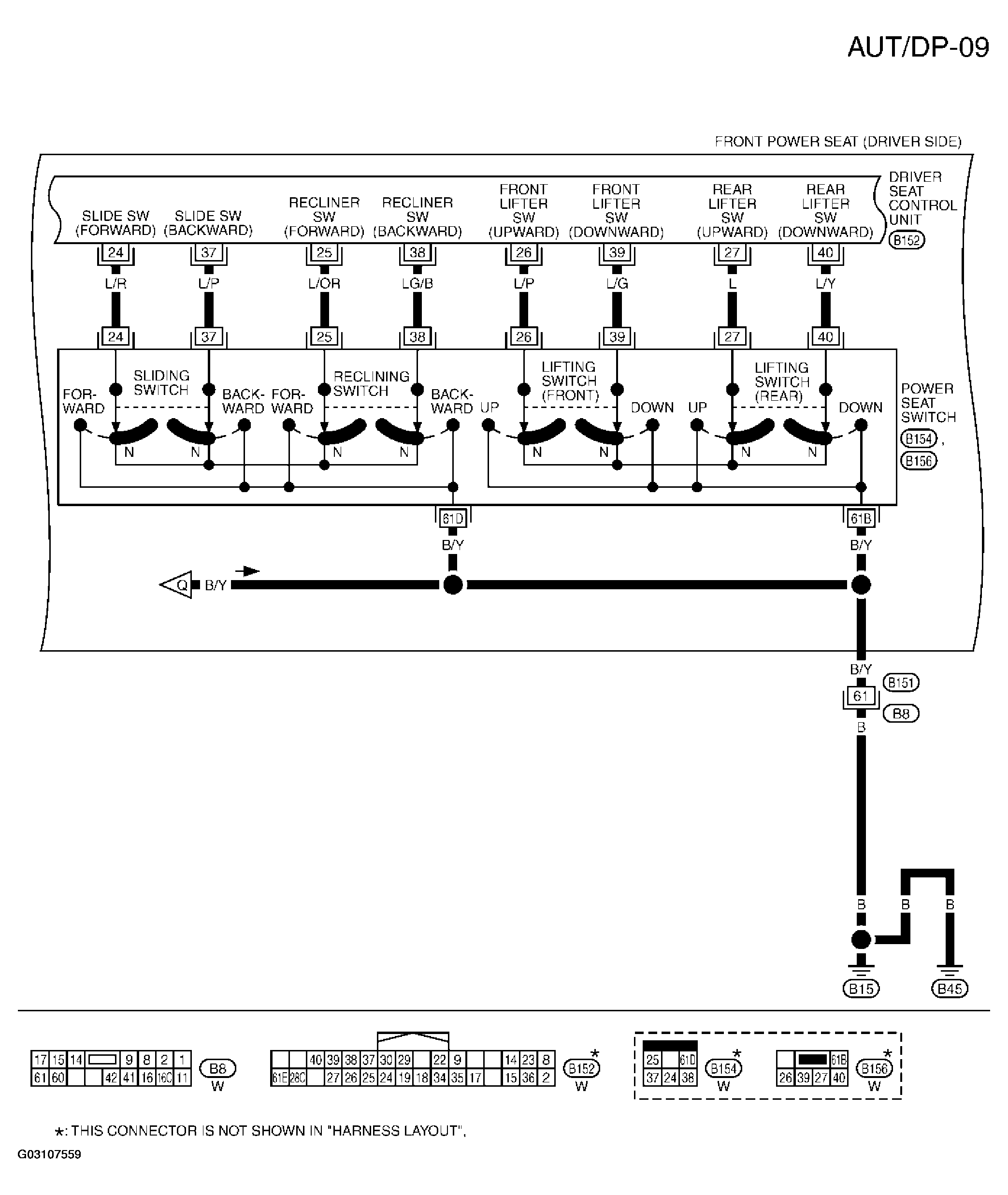

Fig 9: Wiring Diagram-AUT/DP (9 Of 11)

G03107559

Courtesy of NISSAN MOTOR CO., U.S.A.

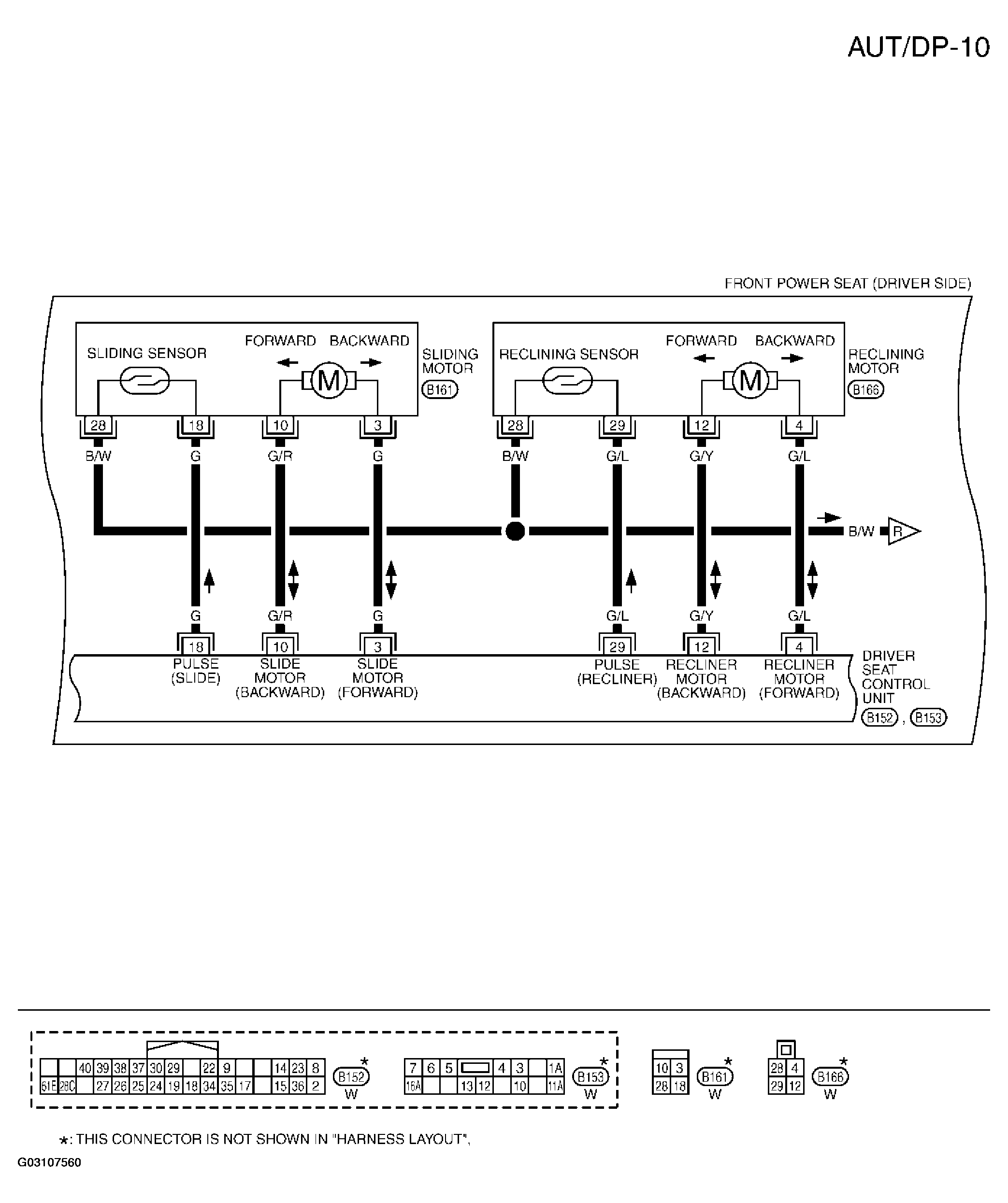

Fig 10: Wiring Diagram-AUT/DP (10 Of 11)

G03107560

Courtesy of NISSAN MOTOR CO., U.S.A.

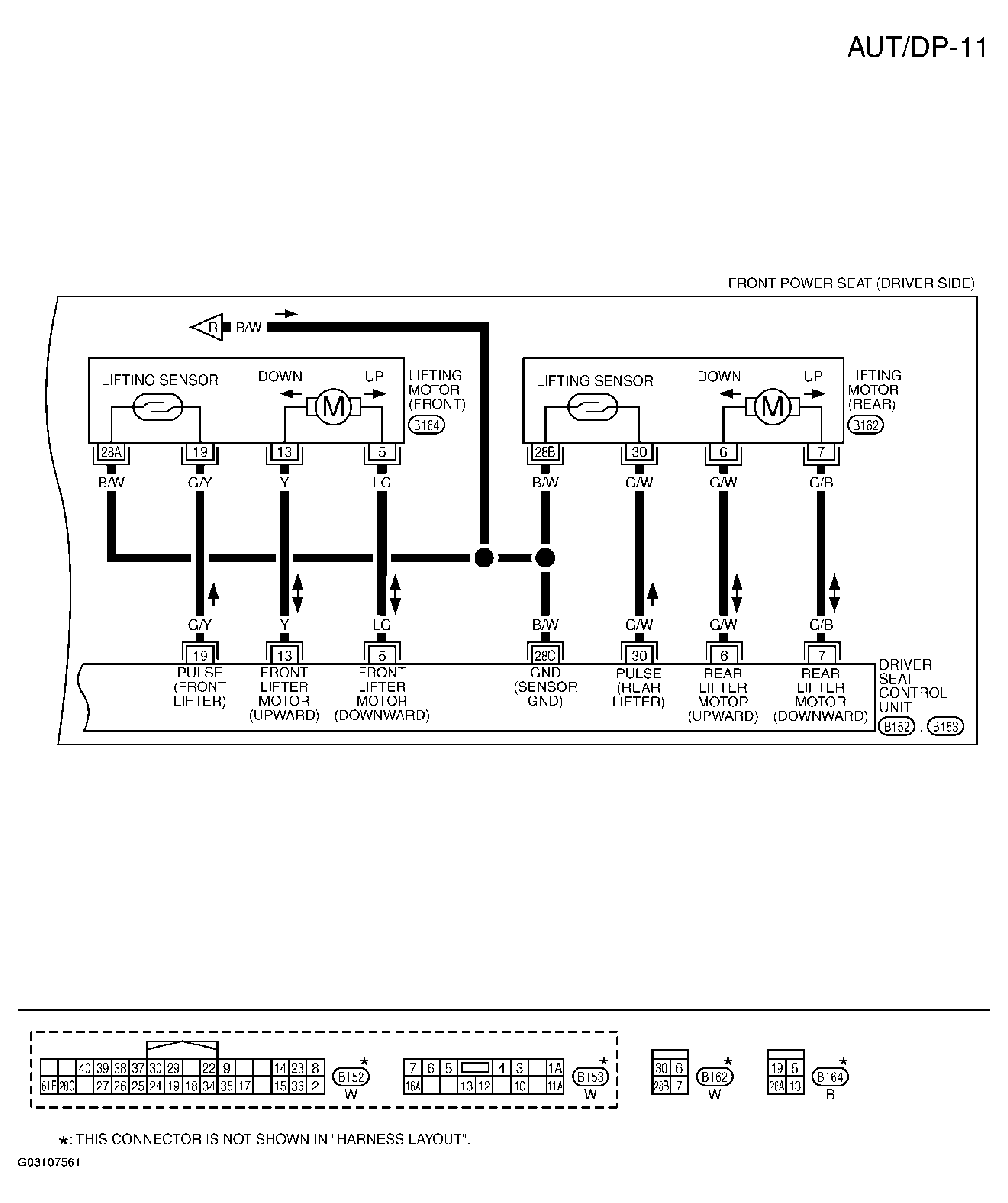

Fig 11: Wiring Diagram-AUT/DP (11 Of 11)

G03107561

Courtesy of NISSAN MOTOR CO., U.S.A.
