Rear Case

Install the baffle plate into rear case.
Install the main shaft rear bearing into rear case.

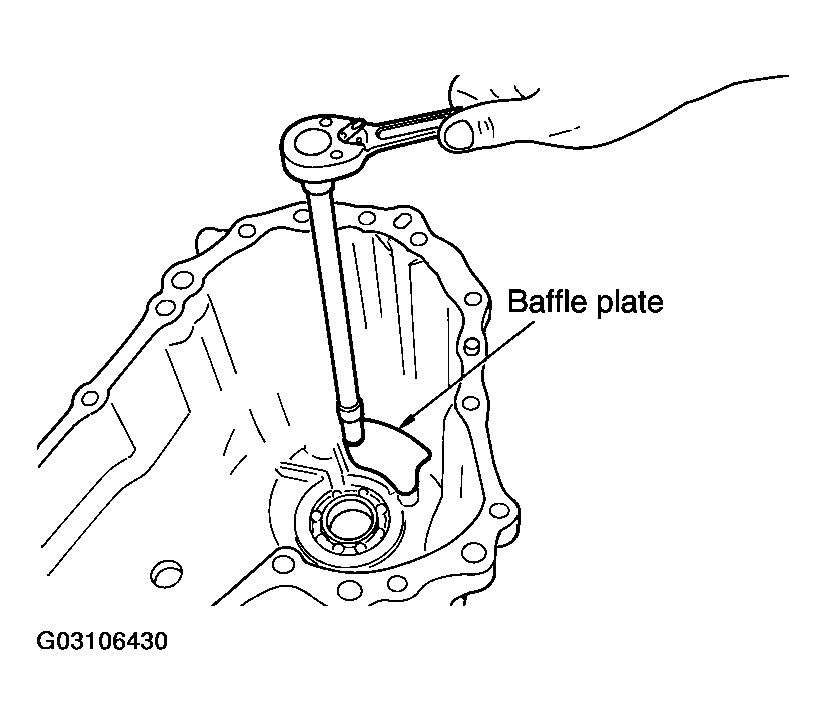

Fig 1: Installing Baffle Plate Into Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the snap ring into rear case.
CAUTION: Do not reuse snap ring.

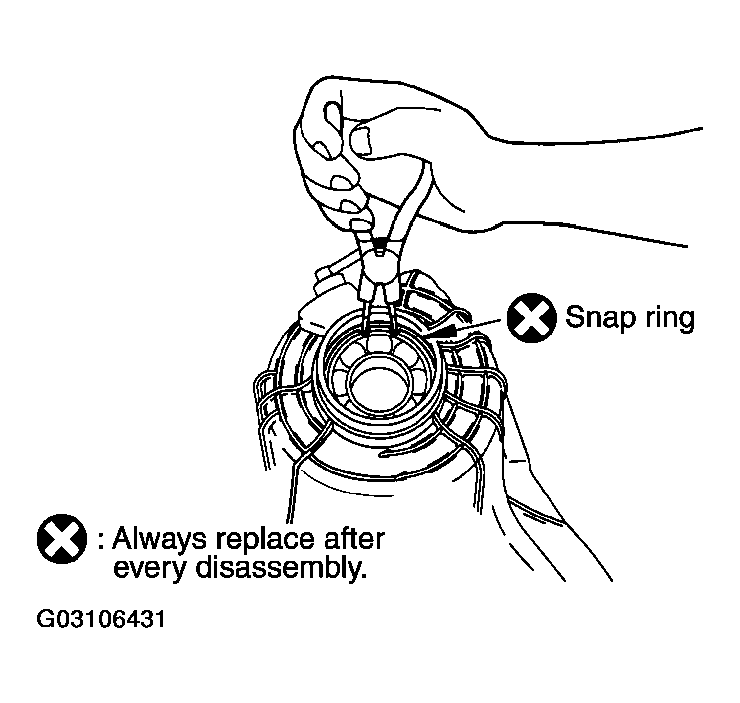

Fig 2: Installing Snap Ring Into Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a drift, install the rear oil seal into the rear case.
Tool number: KV40104830 (-)
CAUTION:
- Discard old oil seals; replace with new ones.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of the oil seal.

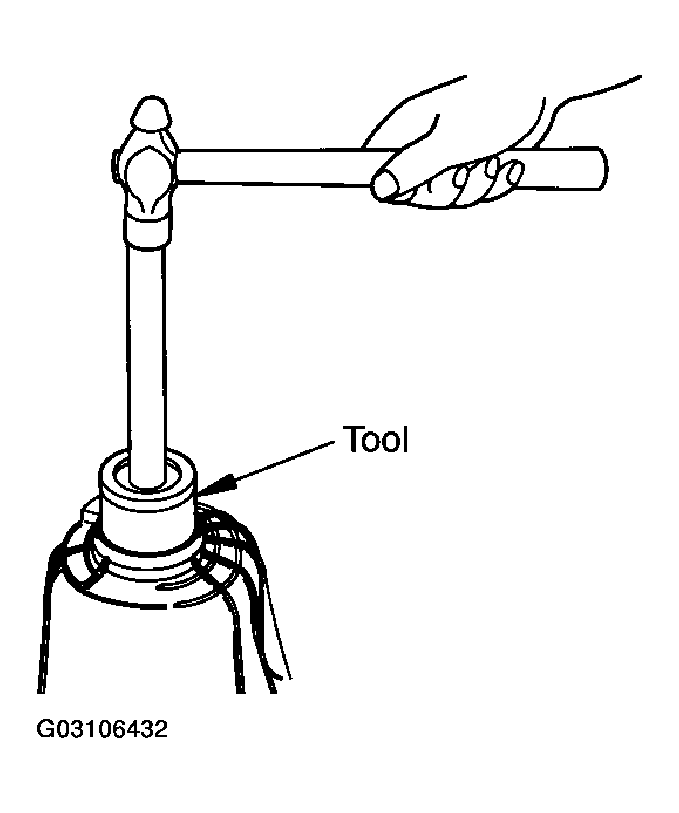

  Fig 3: Installing Rear Oil Seal Into Rear Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
