ASCD Brake Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD brake switch harness connector.
  3. Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
    ASCD BRAKE SWITCH CONTINUITY TEST CONDITION CHART

    Condition Continuity
    When brake pedal is fully released. Should exist.
    When brake pedal is depressed. Should not exist.

    If NG, adjust ASCD brake switch installation, and perform step 3 again.

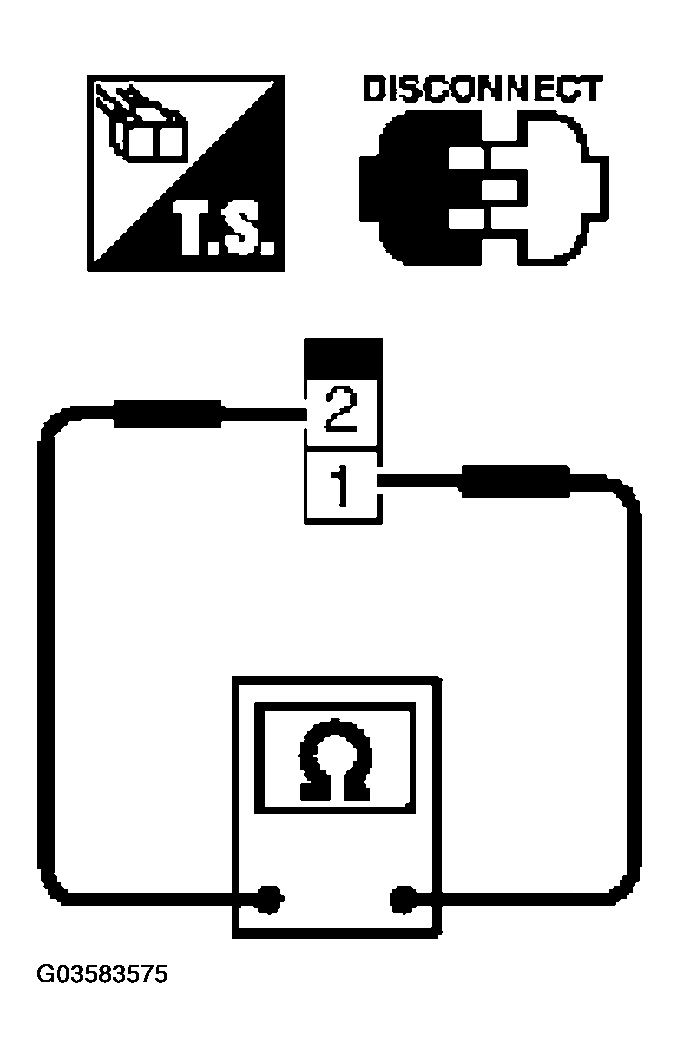

    Fig 1: Checking Harness Continuity Between ASCD Brake Switch Terminals 1 And 2
    G03583575Courtesy of NISSAN MOTOR CO., U.S.A.
